About the Sensorboard PCB
Sensorboard is an open source PCB design by Cluradev, published on GitHub. It is a 2-layer board measuring 73 × 50 mm, with 22 components from 18 distinct parts.
Other key parts include the LM317_SOT-223 and SSP7901P33MR. By type, the board carries 6 resistors, 4 capacitors, 2 ICs, 2 jumpers and 1 connector.
It belongs with the displays & leds designs in this gallery.
From the project

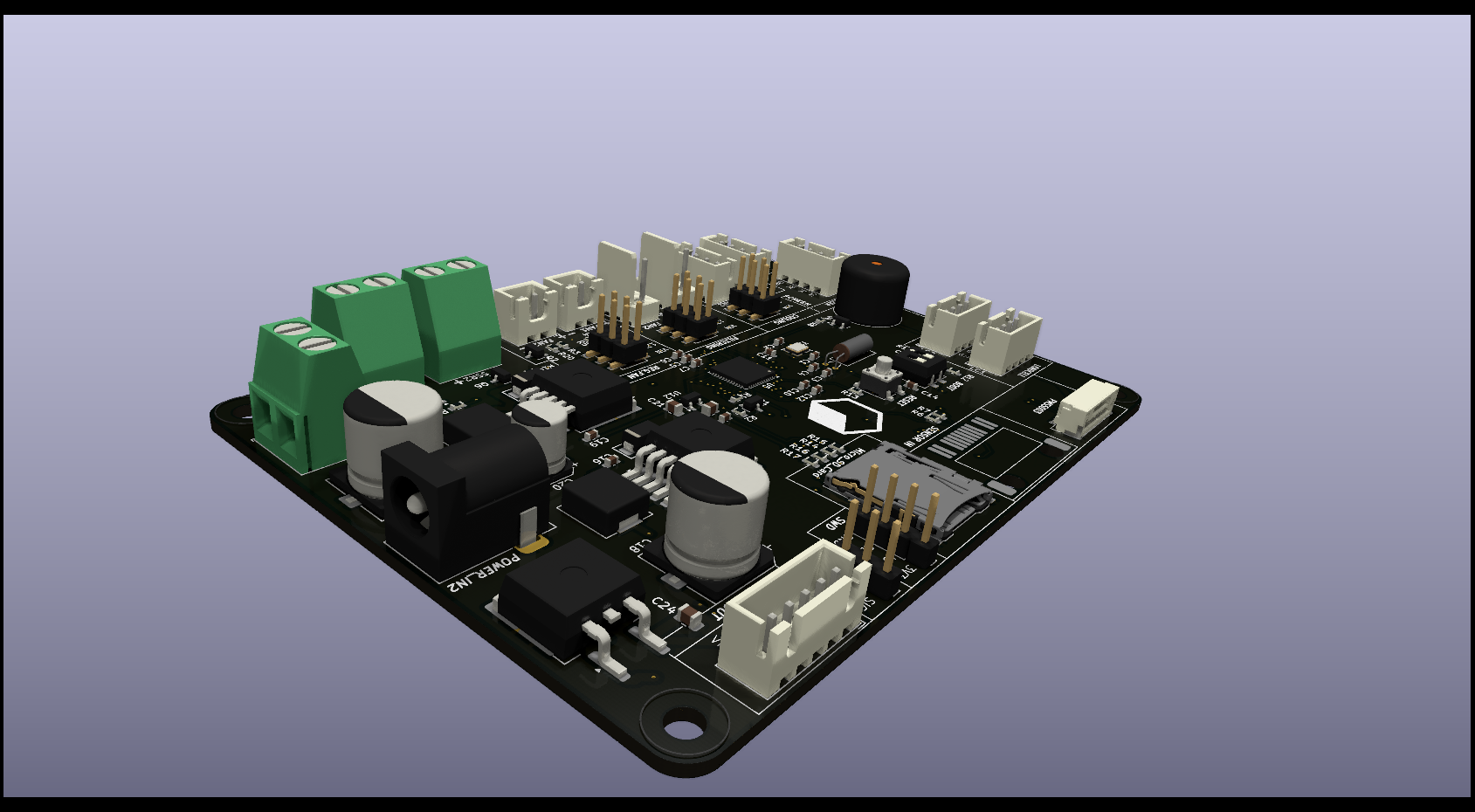

This is the Offical Repo of the Clura Enclosure. Here you will find everything that we have ever made. Enjoy! For more details visit our site: clura.dev
Open hardware KiCad 9 designs for a two-board set: an STM32F411-based mainboard that handles power, control and I/O, and a companion sensorboard carrying the gas/smoke sensing front end. The two connect over an RJ45 link.
- MCU — STM32F411CEU6, 25 MHz HSE + 32.768 kHz LSE crystals, SWD header, BOOT jumper - Storage — micro SD card slot, AT24CS64 I²C EEPROM - Power — 12 V input via barrel jack / screw terminal, LM2596 switchers for 12 V and 5 V rails, SY8120B for 3V3, dedicated +5 V servo rail, fuse and reverse-protection diode - I/O — RJ45 to the sensorboard, HX711 load-cell interface…

Main components on the Sensorboard
Sensorboard bill of materials (BOM)
22 components, 18 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | LM317_SOT-223 | SOT-223-3_TabPin2 | U6 |
| 1 | SSP7901P33MR | SOT-23-3 | U12 |
| 1 | WS2811 | JST_XH_B3B-XH-A_1x03_P2.50mm_Vertical | J4 |
| 1 | ~ | Bme680 | BME1 |
| 1 | Elec_Smoke | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | ELECBEE1 |
| 1 | Jumper_2_Open | SolderJumper-2_P1.3mm_Open_RoundedPad1.0x1.5mm | JP1 |
| 1 | Jumper_2_Bridged | SolderJumper-2_P1.3mm_Bridged_RoundedPad1.0x1.5mm | JP2 |
| 1 | MEMS_Smoke | MEMS_SMOKE | MEMS_SMOKE1 |
| 1 | ~ | MQ2-MODULE | MQ1 |
| 1 | ~ | JST_SHL_SM05B-SHLS-TF_1x05-1MP_P1.00mm_Horizontal | OPTICAL_SMOKE1 |
| 1 | Power_in | JST_XH_B5B-XH-A_1x05_P2.50mm_Vertical | POWER_IN1 |
| 1 | SENSOR_OUT | RJ45_NEW | SENSOR_IN1 |
| 3 | 4.7uF | C_0805_2012Metric | C13, C22, C23 |
| 1 | 0.1uF | C_0603_1608Metric | C25 |
| 1 | 5k | R_0603_1608Metric | R18 |
| 3 | 10K | R_0603_1608Metric | R19, R23, R24 |
| 1 | 2.2k | R_0603_1608Metric | R21 |
| 1 | 4.3k | R_0603_1608Metric | R22 |
Sensorboard design files
The KiCad project lives in the Cluradev/CluraEnclosure repository on GitHub; these links point at the commit this page was built from.
Sensorboard: common questions
How big is the Sensorboard PCB?
The Sensorboard measures 73 × 50 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Sensorboard?
22 components, from 18 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Sensorboard design files?
From the Cluradev/CluraEnclosure repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Sensorboard design in my own project?
The repository has no license, so all rights stay with Cluradev. Use it as a reference, and ask the author before reusing the design.
