Technikerarbeit2026-hardwarepruefadapter
About the Technikerarbeit2026-hardwarepruefadapter PCB
Technikerarbeit2026-hardwarepruefadapter is an open source PCB design by CodeByMika, published on GitHub. It is a 4-layer board measuring 416 × 130 mm, with 436 components from 105 distinct parts.
Other key parts include the LP5018RSMR, LSF0102DCTR, IRF9358TRPBF, TPD4EUSB30DQAR and CYPD3177-24LQXQ. By type, the board carries 216 resistors, 74 capacitors, 70 diodes, 31 ICs, 20 connectors and 9 transistors.
From the project
Im Schuljahr 2025/2026 wurde im Rahmen der Ausbildung zum staatlich geprüften Techniker diese Technikerarbeit in Zusammenarbeit mit der Gottlieb Daimler Schule 2 in Sindelfingen sowie der SOTEC GmbH & Co KG in Ostelsheim erstellt.

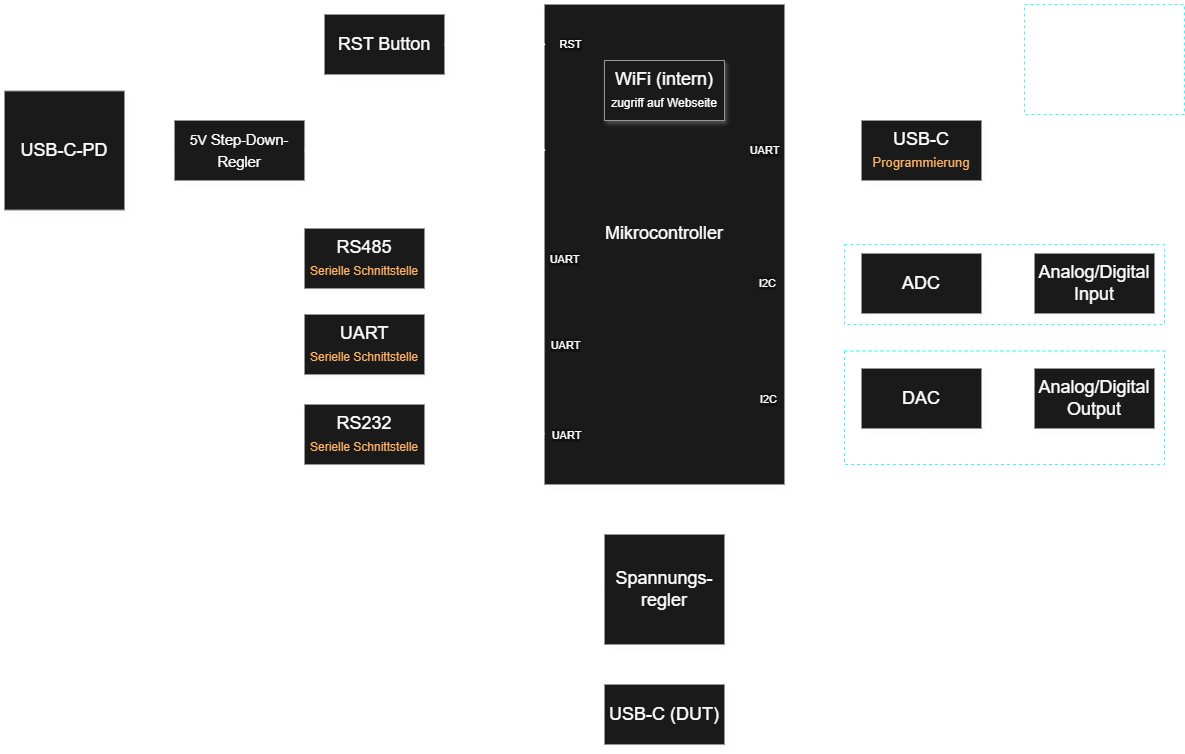

Der Hardware Prüfadapter ist ein Embedded-System auf Basis eines ESP32-S3, das entwickelt wurde, um externe Hardwarekomponenten und Baugruppen automatisiert zu testen und zu simulieren. Das System stellt eine Brücke zwischen analoger/digitaler Hardware und modernen Web-Technologien dar.
Das Hauptaugenmerk der Entwicklung lag auf einer sauberen Systemarchitektur (Clean Architecture), extremer Ausfallsicherheit (Fail-Safe-Mechanismen) und einer hohen Testabdeckung durch systemunabhängiges Unit-Testing (TDD).
Main components on the Technikerarbeit2026-hardwarepruefadapter
Technikerarbeit2026-hardwarepruefadapter bill of materials (BOM)
436 components, 105 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 3 | LP5018RSMR | VQFN-32_LP5018RSMR | IC1001, IC1002, IC1003 |
| 3 | LSF0102DCTR | SOP65P400X130-8N | U202, U203, U1101 |
| 1 | IRF9358TRPBF | SOIC127P600X175-8N | U301 |
| 1 | TPD4EUSB30DQAR | USON-10_2.5x1.0mm_P0.5mm | U302 |
| 1 | CYPD3177-24LQXQ | QFN-24-1EP_4x4mm_P0.5mm_EP2.75x2.75mm | U303 |
| 1 | TPS56637RPAR | CONV_TPS56637RPAR | U401 |
| 1 | TLV75801PDBVT | SOT-23-5 | U402 |
| 1 | TPS61041DBVR K | SOT-23-5 | U403 |
| 1 | TPS61170DRVR | SON65P200X200X80-7N | U404 |
| 4 | ADS1115IDGST | TSSOP-10_3x3mm_P0.5mm | U502, U602, U903, U904 |
| 8 | DMP3068L-7 DMP3130L-7 | SOT103P240X110-3N | U701, U702, U703, U704, U705, U706, U707, U708 |
| 2 | OPA2990IDR | SOIC127P600X175-8N | U802, U804 |
| 1 | DAC8574IPWR | SOP65P640X120-16N | U803 |
| 1 | THVD1406DR | SOTFL50P160X60-8N | U1201 |
| 1 | TLP175A(TPL,E | MFSOP6-4_4.4x3.6mm_P1.27mm | U1202 |
| 1 | TRS3232EIPWR | SOP65P640X120-16N | U1301 |
| 1 | LBSS123LT1G BSS123 | SOT-23 | Q301 |
| 8 | BS170FTA | SOT-23 | Q701, Q702, Q703, Q704, Q705, Q706, Q707, Q708 |
| 4 | 5103308-3 | 61201621621 | J201, J202, J203, J204 |
| 2 | 12402012E212A | AMPHENOL_12402012E212A | J301, J401 |
Show 85 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1861946 | PHOENIX_1861946 | J402 |
| 4 | 1861959 | PHOENIX_1861959 | J501, J601, J710, J801 |
| 4 | 61301221121 6130XX21121_61301221121 | 61301221121 | J702, J704, J706, J708 |
| 1 | 61300621121 6130XX21121_61300621121 | 61300621121 | J1101 |
| 3 | 1861933 | PHOENIX_1861933 | J1102, J1201, J1301 |
| 1 | C5266027 1933192 | PHOENIX_1933192 | J1202 |
| 4 | 0ZCM0002FF2G | FUSC1607X85N | F801, F802, F803, F804 |
| 2 | Littelfuse 1206L010/60WR | Fuse_1206_3216Metric | F1201, F1202 |
| 1 | 436331045822 | 4363X10458XX | S201 |
| 1 | LM1117MPX-3.3/NOPB | VREG_LM1117MPX-3.3_NOPB | VR401 |
| 1 | SMAJ20A | D_SMA | D301 |
| 1 | SMAJ15A | D_SMA | D302 |
| 1 | E6C1204VGAC1UDA | WL-SMSW_1204_A | D304 |
| 2 | BAS716,115 | DIO_BAS716_115 | D401, D402 |
| 1 | PMEG4010CEJ,115 | D_SOD-323F | D403 |
| 20 | BAV199LT1G | TSOT-23 | D501, D502, D503, D504, D601, D602, D603, D604 +12 |
| 8 | BZX84C10LT1G | SOT95P240X111-3N | D701, D703, D705, D707, D709, D711, D713, D715 |
| 4 | SMAJ5.0A | D_SMA | D702, D706, D710, D714 |
| 4 | SMAJ24A | D_SMA | D704, D708, D712, D716 |
| 1 | SMAJ26A | D_SMA | D805 |
| 17 | 150352M173300 | WL-SFTW_3528_PLCC4 | D1001, D1002, D1003, D1004, D1005, D1006, D1007, D1008 +9 |
| 3 | 150060YS75000 | WL-SMCW_0603_Yellow | D1101, D1203, D1303 |
| 3 | 150060GS75000 | WL-SMCW_0603_Green | D1102, D1204, D1304 |
| 2 | SMAJ12A | D_SMA | D1201, D1202 |
| 2 | SMAJ15CA | D_SMA | D1301, D1302 |
| 2 | 74279226101 WE-MPSB_1812 | WE-MPSB_1812 | L301, L303 |
| 1 | XAL4020-122MEC | WE-MAPI_4020 | L302 |
| 1 | XAL7030-332MEC 3.3uH | INDDFN750X750X310-2N | L401 |
| 1 | 74404032100 10uH | WE-LQS_3015 | L402 |
| 1 | 74404052100 10uH | WE-LQS_5020 | L403 |
| 2 | CBM321609U181T | L_1206_3216Metric | L1201, L1202 |
| 4 | 100uF/6.3V | C_1206_3216Metric | C201, C802, C807, C1101 |
| 2 | 100nF/50V | C_1206_3216Metric | C202, C1201 |
| 19 | 100nF/50V | C_0805_2012Metric | C203, C204, C205, C401, C405, C502, C602, C803 +11 |
| 2 | 4.7uF/25V | C_1206_3216Metric | C301, C302 |
| 4 | 1uF/50V | C_0805_2012Metric | C303, C1001, C1002, C1004 |
| 1 | 1uF/50V | C_1206_3216Metric | C304 |
| 2 | 100nF/50V | C_0603_1608Metric | C305, C306 |
| 2 | 1uF/50V | C_0603_1608Metric | C307, C308 |
| 5 | 4.7uF/50V | C_1206_3216Metric | C402, C403, C404, C413, C415 |
| 1 | 100pF/50V | C_0805_2012Metric | C406 |
| 1 | 47uF/10V | C_1206_3216Metric | C407 |
| 2 | 2.2uF/25V | C_0805_2012Metric | C408, C409 |
| 1 | 10uF/16V | C_1206_3216Metric | C410 |
| 1 | 22uF/25V | C_1206_3216Metric | C411 |
| 1 | 3.3pF/50V | C_0805_2012Metric | C412 |
| 2 | 4.7pF/50V | C_0805_2012Metric | C414, C419 |
| 2 | 4.7uF/25V | C_0805_2012Metric | C416, C417 |
| 1 | 680pF/50V | C_0805_2012Metric | C418 |
| 16 | 1µF/50V | C_0805_2012Metric | C501, C503, C505, C506, C601, C603, C605, C606 +8 |
| 5 | 10uF/25V | C_0805_2012Metric | C804, C806, C1003, C1006, C1008 |
| 14 | 0R | R_0805_2012Metric | R201, R413, R505, R604, R801, R813, R825, R826 +6 |
| 12 | 2.2K | R_0805_2012Metric | R202, R203, R204, R205, R206, R207, R211, R212 +4 |
| 7 | 200k | R_0805_2012Metric | R208, R209, R802, R807, R816, R823, R1102 |
| 47 | 10k | R_0805_2012Metric | R210, R301, R305, R407, R420, R421, R509, R609 +39 |
| 1 | 51k | R_0805_2012Metric | R302 |
| 1 | 1k | R_0603_1608Metric | R303 |
| 1 | 10k | R_0603_1608Metric | R304 |
| 1 | 4.7k | R_0603_1608Metric | R306 |
| 4 | 0R | R_0603_1608Metric | R307, R310, R311, R314 |
| 3 | 5.1k | R_0603_1608Metric | R308, R309, R312 |
| 1 | 2.4k | R_0603_1608Metric | R313 |
| 27 | 1k | R_0805_2012Metric | R315, R503, R508, R516, R519, R603, R608, R616 +19 |
| 14 | 0R | R_1206_3216Metric | R401, R402, R403, R408, R409, R414, R424, R501 +6 |
| 6 | 20K | R_0805_2012Metric | R404, R806, R815, R822, R827, R1106 |
| 1 | 68k | R_0805_2012Metric | R405 |
| 2 | 5.1k | R_0805_2012Metric | R406, R418 |
| 2 | 100k | R_0805_2012Metric | R410, R417 |
| 17 | 150k | R_0805_2012Metric | R411, R502, R506, R514, R518, R602, R606, R614 +9 |
| 1 | 110k | R_0805_2012Metric | R412 |
| 1 | 1.3M | R_0805_2012Metric | R415 |
| 1 | 180k | R_0805_2012Metric | R416 |
| 1 | 160k | R_0805_2012Metric | R419 |
| 2 | 56k | R_0805_2012Metric | R422, R423 |
| 20 | 30k | R_0805_2012Metric | R504, R512, R517, R520, R605, R612, R617, R620 +12 |
| 7 | 3.3k | R_0805_2012Metric | R515, R615, R922, R928, R1001, R1002, R1008 |
| 1 | 1k | R_1206_3216Metric | R702 |
| 8 | 0ZCJ0010FF2E | RESC3216X125N | R703, R709, R713, R718, R722, R727, R731, R736 |
| 1 | 24k | R_1206_3216Metric | R707 |
| 4 | 330R | R_2512_6332Metric | R803, R805, R817, R818 |
| 1 | 1M | R_0805_2012Metric | R1101 |
| 1 | 360K | R_0805_2012Metric | R1103 |
| 4 | 4.7k | R_0805_2012Metric | R1104, R1105, R1107, R1108 |
| 1 | 1R | R_1206_3216Metric | R1202 |
| 1 | 390R | R_0805_2012Metric | R1205 |
