SRAM SIMM 1MB Through hole
codesmythe·BITSY_MK_I·SRAM_SIMM_1MB/SRAM_SIMM_1MB.kicad_pcb
About the SRAM SIMM 1MB Through hole PCB
SRAM SIMM 1MB Through hole is an open source PCB design by codesmythe, published on GitHub under the CC-BY-NC-4.0 license. It is a 4-layer board measuring 108 × 31.8 mm, with 5 components from 3 distinct parts.
Other key parts include the SamacSys_Parts_72p-SIMM and AS6C4008-55PCN. By type, the board carries 3 ICs and 2 capacitors.
It belongs with the retro computing and usb & debug tools designs in this gallery.
From the project
A Motorola 68000-based single board computer designed to run EmuTOS.
This board is designed to run the EmuTOS operating system. EmuTOS is an open-source variant of the Atari ST TOS operating system.

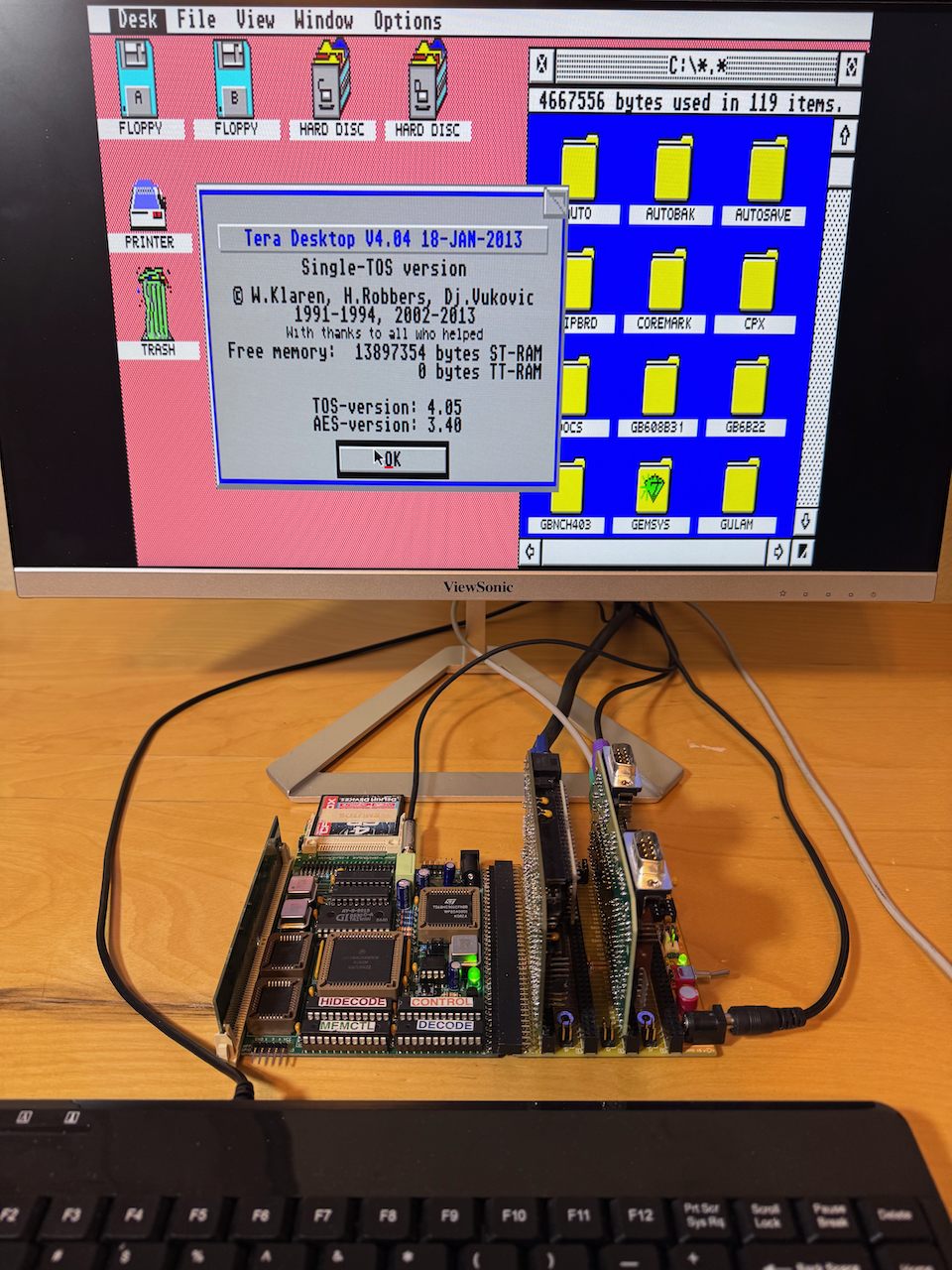

BITSY Mark I is part of system containing this board, a XOSERA_RCBUS board for VGA output, a KEMOJO board for PS/2 keyboard and mouse input, and an RCBus backplane board such as an SC147. Together, this system can run full GUI EmuTOS with 640x240 graphics in 16 colors.

Main components on the SRAM SIMM 1MB Through hole
SRAM SIMM 1MB Through hole bill of materials (BOM)
5 components, 3 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | SamacSys_Parts_72p-SIMM | 72p-SIMM | U1 |
| 2 | AS6C4008-55PCN | DIP-32_W15.24mm_Socket_LongPads | U2, U3 |
| 2 | C_Small | C_Rect_L7.0mm_W2.5mm_P5.00mm | C1, C2 |
SRAM SIMM 1MB Through hole design files
The KiCad project lives in the codesmythe/BITSY_MK_I repository on GitHub; these links point at the commit this page was built from.
SRAM SIMM 1MB Through hole: common questions
How big is the SRAM SIMM 1MB Through hole PCB?
The SRAM SIMM 1MB Through hole measures 108 × 31.8 mm, has 4 copper layers and is 1.2 mm thick.
How many components are on the SRAM SIMM 1MB Through hole?
5 components, from 3 distinct parts. The full bill of materials is listed on this page.
Where can I download the SRAM SIMM 1MB Through hole design files?
From the codesmythe/BITSY_MK_I repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the SRAM SIMM 1MB Through hole design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
