Rpi pico sao host

common-ground-electronics·rpi-pico-sao-host

Rpi pico sao host PCB layout, top view — open source RP2040/RP2350 board by common-ground-electronics

About the Rpi pico sao host PCB

Rpi pico sao host is an open source RP2040/RP2350 PCB design by common-ground-electronics, published on GitHub under the Custom license license. It is a 2-layer board measuring 62 × 51.5 mm, with 8 components from 7 distinct parts.

Its main chip is the Raspberry Pi Pico, from the RP2040/RP2350 family. By type, the board carries 2 connectors, 2 switches, 2 resistors, 1 module and 1 diode.

From the project

Raspberry Pi Pico SAO Host Board

The Raspberry Pi Pico SAO Host is a breakout board that adds Simple Add-on (SAO) host connectors to the Raspberry Pi Pico.

The v2 design adds the following features:

A power switch (SW2) attached to the the Pico's 3V3EN input pin. A power LED (D1) that turns on when the Pico is powered on. A tactile reset switch (SW1) connected to the Pico's RUN input pin.

See the CHANGELOG for a full list of the changes from the previous version.

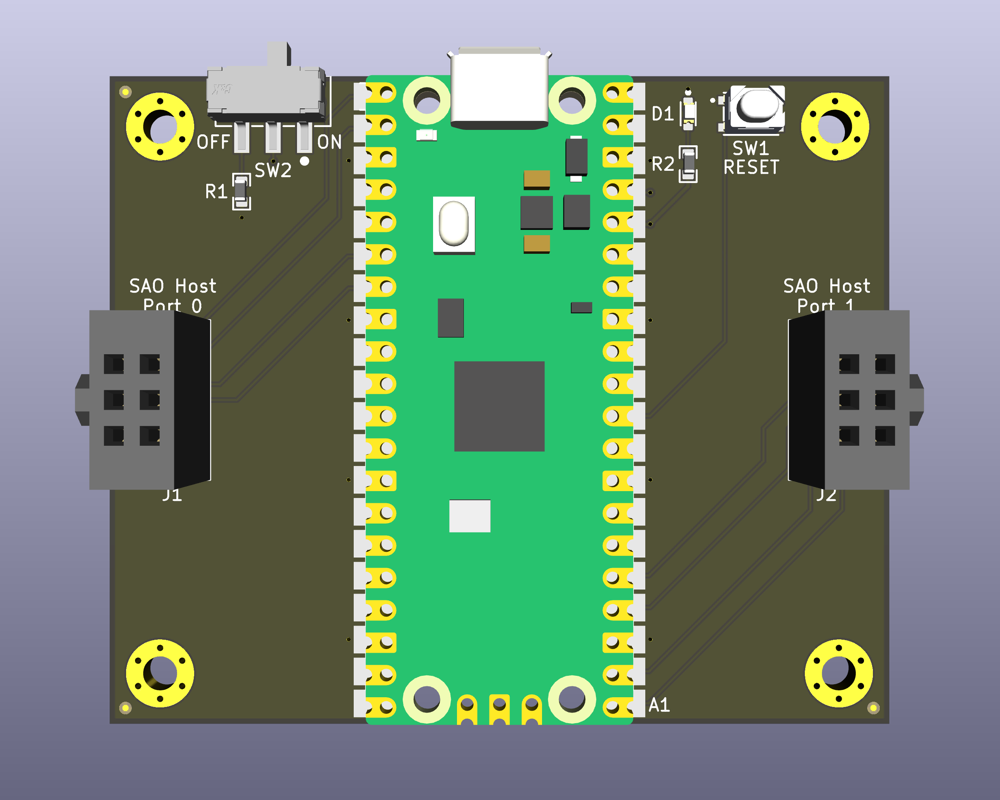

Rpi pico sao host, from the project README
From the project README

Main components on the Rpi pico sao host

Raspberry Pi Pico

Rpi pico sao host bill of materials (BOM)

8 components, 7 distinct parts.

QtyPartRefs
1
Raspberry Pi Pico
A1
2
SFH11
J1, J2
1
PTS810SJM250SMTRLFS
SW1
1
JS102011SAQN
SW2
1
Green
D1
1
100 Ω
R1
1
560 Ω
R2

Rpi pico sao host design files

The KiCad project lives in the common-ground-electronics/rpi-pico-sao-host repository on GitHub; these links point at the commit this page was built from.

Rpi pico sao host: common questions

What microcontroller does the Rpi pico sao host use?

The Rpi pico sao host is built around the Raspberry Pi Pico, from the RP2040/RP2350 family.

How big is the Rpi pico sao host PCB?

The Rpi pico sao host measures 62 × 51.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rpi pico sao host?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Rpi pico sao host design files?

From the common-ground-electronics/rpi-pico-sao-host repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Rpi pico sao host design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Rpi pico sao host without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
