Capitulo118

ComputadorasySensores·Capitulo118

Capitulo118 PCB layout, top view — open source RP2040/RP2350 board by ComputadorasySensores

About the Capitulo118 PCB

Capitulo118 is an open source RP2040/RP2350 PCB design by ComputadorasySensores, published on GitHub. It is a 2-layer board measuring 74 × 70 mm, with 9 components from 9 distinct parts.

Its main chip is the Pico2-2, from the RP2040/RP2350 family. By type, the board carries 8 connectors and 1 switch.

It belongs with the sensors and displays & leds designs in this gallery.

From the project

Archivos de diseño para placa de desarrollo Pico Carrier

Un placa de desarrollo simple para Raspberry Pi Pico/W que incorpora la posibilidad de conectar una pantalla OLED SSD1306 (con jumpers para diferentes variantes de alimentación) y un sensor ambiental BMP/BME280. También expone todos los GPIO de la placa para una fácil conexión de dispositivos adicionales y un pulsador de reset.

Todos los archivos de diseño en Kicad se encuentran publicados junto a un código de ejemplo en MicroPython

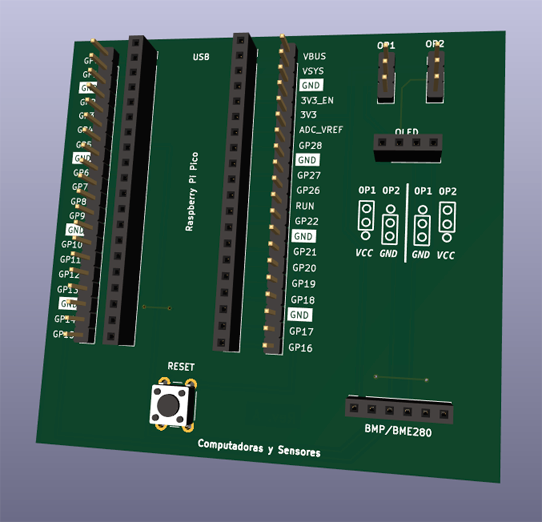

Capitulo118, from the project README
From the project README

Capitulo118 bill of materials (BOM)

9 components, 9 distinct parts.

QtyPartRefs
1
Pico1-2
J1
1
Pico2-2
J2
1
OLED
J3
1
OP1
J4
1
OP2
J5
1
BMP-BME280
J6
1
PicoHeader1
J7
1
PicoHeader2
J8
1
RESET
SW1

Capitulo118 design files

The KiCad project lives in the ComputadorasySensores/Capitulo118 repository on GitHub; these links point at the commit this page was built from.

Capitulo118: common questions

What microcontroller does the Capitulo118 use?

The Capitulo118 is built around the Pico2-2, from the RP2040/RP2350 family.

How big is the Capitulo118 PCB?

The Capitulo118 measures 74 × 70 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Capitulo118?

9 components, from 9 distinct parts. The full bill of materials is listed on this page.

Where can I download the Capitulo118 design files?

From the ComputadorasySensores/Capitulo118 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Capitulo118 design in my own project?

The repository has no license, so all rights stay with ComputadorasySensores. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Capitulo118 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
