Prometheus-VLB
About the Prometheus-VLB PCB
Prometheus-VLB is an open source PCB design by computerguy096, published on GitHub under the GPL-3.0 license. It is a 4-layer board measuring 240.5 × 69.4 mm, with 74 components from 20 distinct parts.
Other key parts include the 74LS245, 27C020, V53C16258H, 86C765 and 7404. By type, the board carries 30 capacitors, 27 resistors, 9 ICs, 3 inductors, 2 connectors and 1 crystal.
From the project

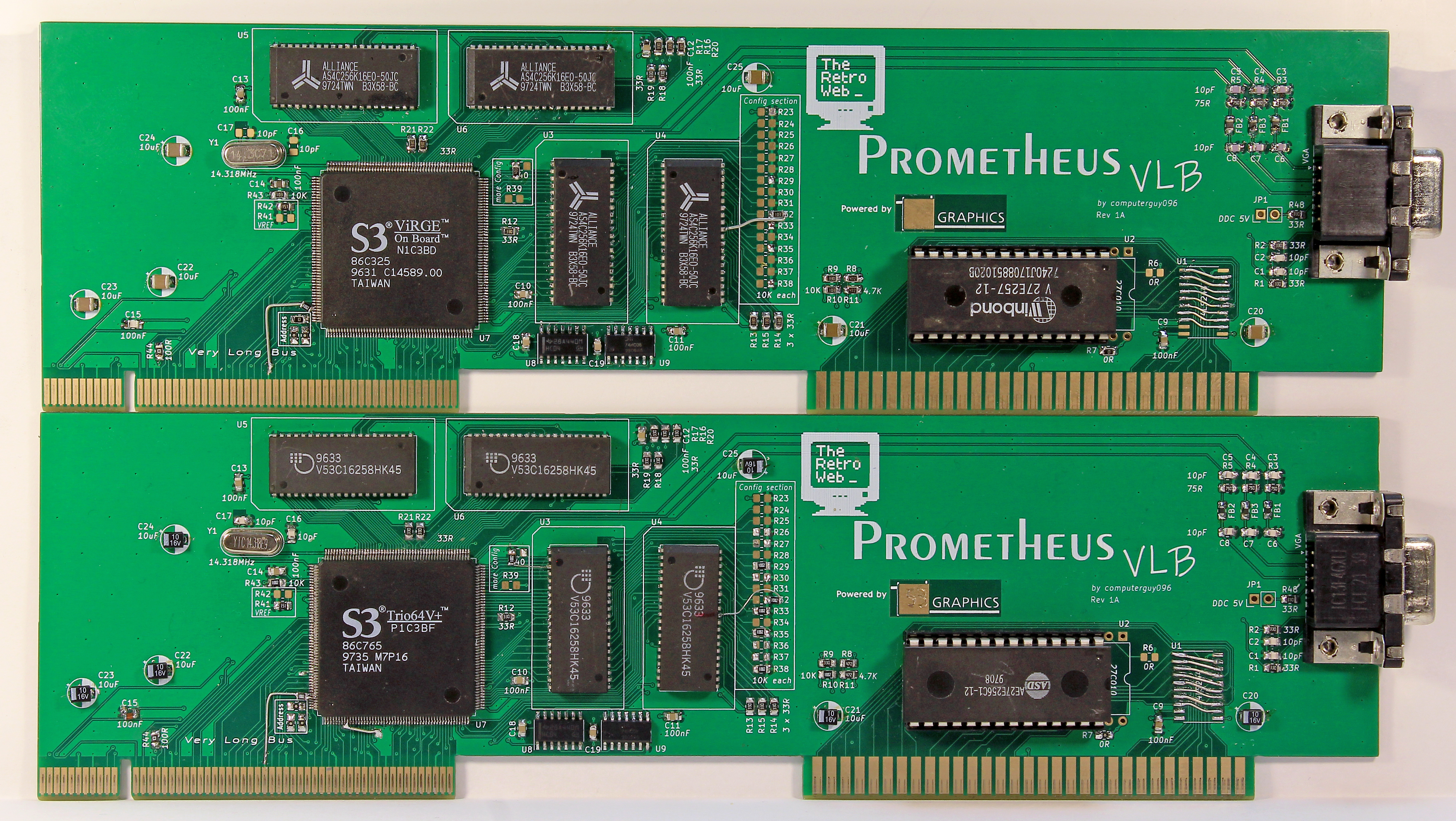

This is an open source video card, designed to be used in systems with a VLB slot, like a 486 class machine. It's designed around the S3 Trio64V+ video chip (86C765), which can be found in many PCI video cards, as wel as separately. As a bonus, this particular chip allows for a v
This is an open source video card, designed to be used in systems with a VLB slot, like a 486 class machine. It's designed around the S3 Trio64V+ video chip (86C765), which can be found in many PCI video cards, as wel as separately. As a bonus, this particular chip allows for a very easy implementation for the VL bus, with almost no support components required, even the RAMDAC is built into the chip. The card was designed from scratch, using only the official datasheet and photos of an STB Powergraph 64 for a few visual references.
Main components on the Prometheus-VLB
Prometheus-VLB bill of materials (BOM)
74 components, 20 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 74LS245 | SO-20_12.8x7.5mm_P1.27mm | U1 |
| 1 | 27C020 | EEPROM_combo | U2 |
| 4 | V53C16258H | SOJ-40_10.16x26.00mm_P1.27mm | U3, U4, U5, U6 |
| 1 | 86C765 | QFP-208 | U7 |
| 1 | 7404 | SO-14_3.9x8.65mm_P1.27mm | U8 |
| 1 | 7408 | SO-14_3.9x8.65mm_P1.27mm | U9 |
| 1 | 14.318MHz | Crystal_HC18-U_Vertical | Y1 |
| 1 | VGA | DSUB-15_female | CN1 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J1 |
| 1 | IRQ9 | PinHeader_1x02_P2.54mm_Vertical | JP1 |
| 1 | VLB_slot | BUS_VLB_Board | SL1 |
| 3 | FerriteBead | L_0805_2012Metric_Pad1.15x1.40mm_HandSolder | FB1, FB2, FB3 |
| 10 | 10pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5, C6, C7, C8 +2 |
| 1 | 100pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C11 |
| 9 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C12, C13, C14, C15, C16, C17, C18, C19 +1 |
| 10 | 10uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C21, C22, C23, C24, C25, C26, C27, C28 +2 |
| 3 | 75R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2, R3 |
| 15 | 33R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R4, R5, R6, R7, R10, R11, R12, R13 +7 |
| 7 | 10K | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R8, R9, R22, R23, R24, R25, R26 |
| 2 | 150R | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R21, R27 |
Prometheus-VLB design files
The KiCad project lives in the computerguy096/Prometheus-VLB repository on GitHub; these links point at the commit this page was built from.
- Layoutkicad/virge-vlb.kicad_pcb
- Schematickicad/virge-vlb.kicad_sch
Prometheus-VLB: common questions
How big is the Prometheus-VLB PCB?
The Prometheus-VLB measures 240.5 × 69.4 mm, has 4 copper layers and is 1.6062 mm thick.
How many components are on the Prometheus-VLB?
74 components, from 20 distinct parts. The full bill of materials is listed on this page.
Where can I download the Prometheus-VLB design files?
From the computerguy096/Prometheus-VLB repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Prometheus-VLB design in my own project?
Yes, under the terms of its GPL-3.0 license, which computerguy096 chose for the repository.
