Rgb tube

cookiemonsternz·StageKit·RGB Tube/rgb_tube.kicad_pcb

Rgb tube PCB layout, top view — open source AVR/Arduino board by cookiemonsternz

About the Rgb tube PCB

Rgb tube is an open source AVR/Arduino PCB design by cookiemonsternz, published on GitHub. It is a 2-layer board measuring 12.3 × 150 mm, with 11 components from 5 distinct parts.

Its main chip is the ATtiny85-20P, from the AVR/Arduino family. By type, the board carries 6 diodes, 2 connectors, 1 IC, 1 switch and 1 resistor.

From the project

Stagekit is a 3D-printable, completely hand-solderable diy lighting previs kit.

Stagekit is a 3D-printable, completely hand-solderable diy lighting previs kit.

It consists of various fixtures, truss elements, and set dressing pieces, all modelled at a fairly accurate 1:10 scale. The truss pieces are modelled after standard Eurotruss, and the lights after various fixtures, but due to design requirements, sizing and design liberties have had to be taken.

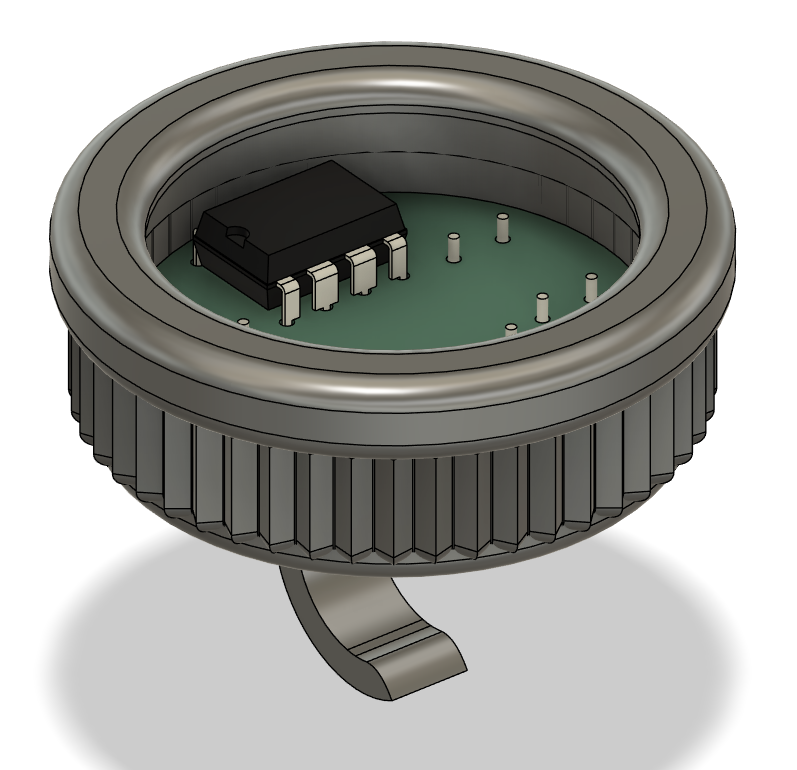

Rgb tube, from the project README
From the project README

Main components on the Rgb tube

ATtiny85-20P

Rgb tube bill of materials (BOM)

11 components, 5 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATtiny85-20P
U1
2
0532610471
J1, J2
1
SW_Push
SW1
6
WS2812B
D1, D2, D3, D4, D5, D6
1
10k
R4

Rgb tube design files

The KiCad project lives in the cookiemonsternz/StageKit repository on GitHub; these links point at the commit this page was built from.

Rgb tube: common questions

What microcontroller does the Rgb tube use?

The Rgb tube is built around the ATtiny85-20P, from the AVR/Arduino family.

How big is the Rgb tube PCB?

The Rgb tube measures 12.3 × 150 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Rgb tube?

11 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Rgb tube design files?

From the cookiemonsternz/StageKit repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Rgb tube design in my own project?

The repository has no license, so all rights stay with cookiemonsternz. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Rgb tube without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
