Development boards PCB layout, top view — open source AVR/Arduino board by Coolbots7

About the Development boards PCB

Development boards is an open source AVR/Arduino PCB design by Coolbots7, published on GitHub. It is a 2-layer board measuring 21 × 50 mm, with 33 components from 21 distinct parts.

Its main chip is the ATmega32U4-AU, from the AVR/Arduino family. Other key parts include the MIC5219-5.0YM5. By type, the board carries 10 resistors, 8 capacitors, 7 diodes, 3 connectors, 2 ICs and 1 crystal.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

Collection of PCBs for testing core designs.

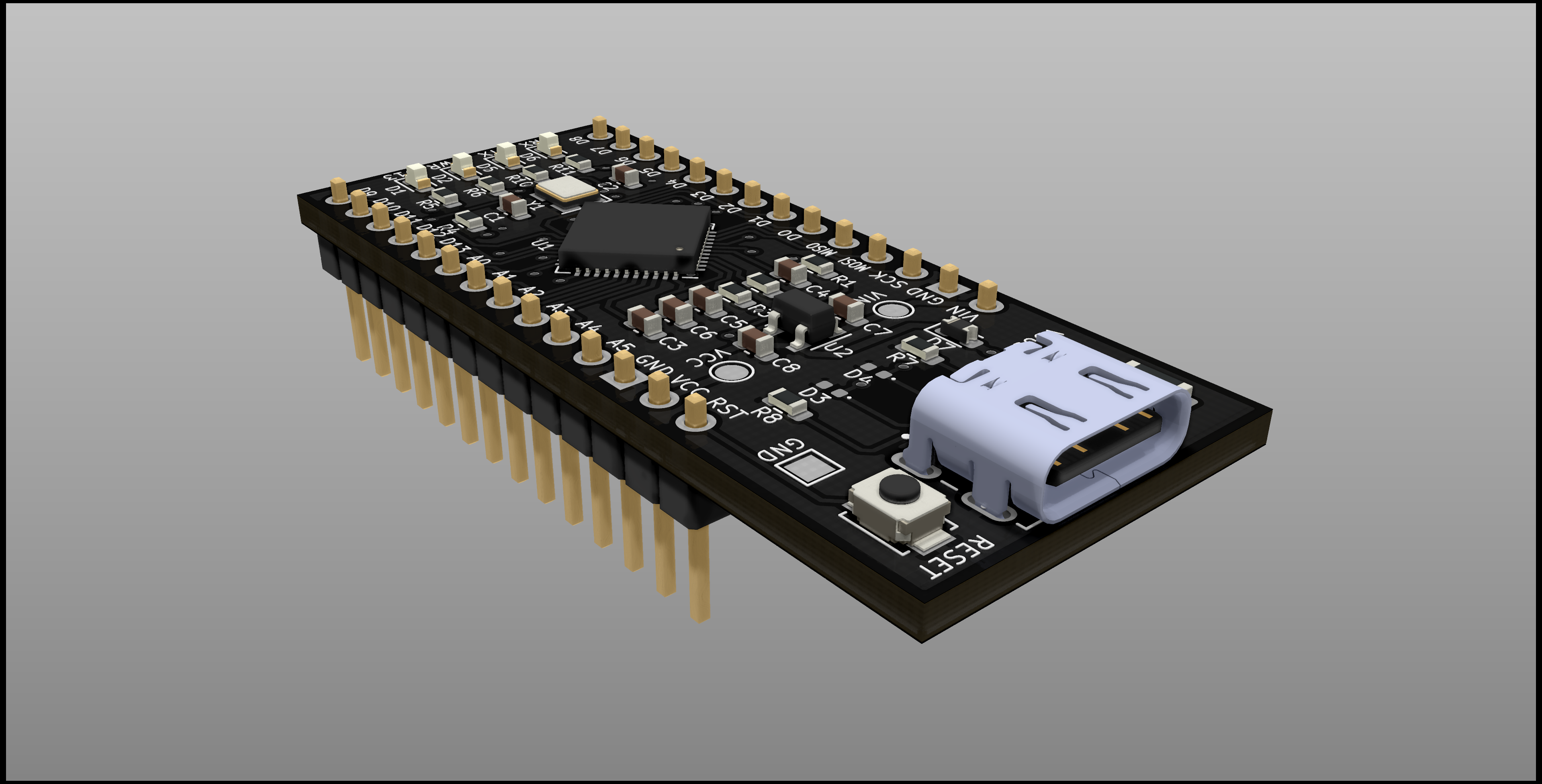

Development boards, from the project README
From the project README

Main components on the Development boards

ATmega32U4-AUMIC5219-5.0YM5

Development boards bill of materials (BOM)

33 components, 21 distinct parts.

QtyPartRefs
1
ATmega32U4-AU
U1
1
MIC5219-5.0YM5
U2
1
Crystal_GND24_Small
Y1
2
Conn_01x14
J3, J4
1
DX07S016JA1R1500
J6
1
250mA
F1
1
RESET
SW1
1
D13
D1
1
PWR
D2
2
3.6v
D3, D4
1
TX
D5
1
RX
D6
1
D_Small
D7
2
22pF
C1, C2
5
1uF
C3, C4, C6, C7, C8
1
22uF
C5
2
10k
R1, R4
2
22
R2, R3
3
200ohm
R5, R10, R11
1
100ohm
R6
Show 1 more
QtyPartRefs
2
5.1k
R7, R8

Development boards design files

The KiCad project lives in the Coolbots7/development-boards repository on GitHub; these links point at the commit this page was built from.

Development boards: common questions

What microcontroller does the Development boards use?

The Development boards is built around the ATmega32U4-AU, from the AVR/Arduino family.

How big is the Development boards PCB?

The Development boards measures 21 × 50 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Development boards?

33 components, from 21 distinct parts. The full bill of materials is listed on this page.

Where can I download the Development boards design files?

From the Coolbots7/development-boards repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Development boards design in my own project?

The repository has no license, so all rights stay with Coolbots7. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Development boards without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
