About the STM32MP1 TestBoard RevB PCB
STM32MP1 TestBoard RevB is an open source STM32 PCB design by cracked-machine, published on GitHub under the MIT license. It is a board measuring 73.7 × 80 mm, with 109 components from 41 distinct parts.
Its main chip is the STM32MP157xAB, from the STM32 family. Other key parts include the MT41K256M16TW-107, SE8233X2, TPS54202DDC and SiP3250x. By type, the board carries 51 capacitors, 30 resistors, 13 connectors, 6 ICs, 4 diodes and 2 crystals.
It belongs with the dev boards & breakouts and power & battery designs in this gallery.
From the project
RevB breakout board for STM32MP1 (Dual A7 + M4). All pins routed to 0.1" headers.
A development board for the STM32MP1 Application Microprocessor with all MPU pins routed through to 2.54mm headers. No exotic proprietary connectors needed!

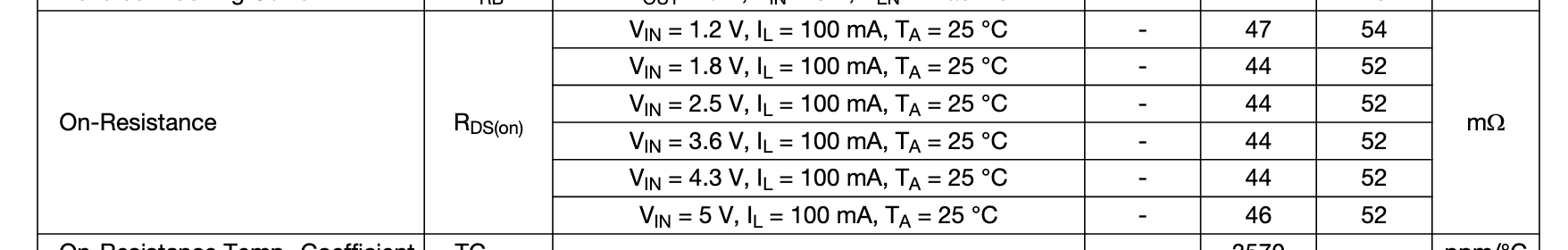

The power supply requirements for microprocessors are always complicated. I decided to use a discrete power supply scheme using a single LDO for the main 3.3V rail, a buck regulator for the DDR 1.35V rail and a load switch to detect the USB 1.8V rail. The latter comes from an internal regulator ands powers the VDD3V3USBFS and VDD3V3USBHS. This needs to be enabled only after the 1.8V rail comes up, so this needs to be enabled using a…

Main components on the STM32MP1 TestBoard RevB
STM32MP1 TestBoard RevB bill of materials (BOM)
109 components, 41 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32MP157xAB | BGA-354_19x19_16.0x16.0mm | U1 |
| 1 | MT41K256M16TW-107 | BGA-96_9.0x13.0mm_Layout2x3x16_P0.8mm | U2 |
| 1 | SE8233X2 | SOT-23 | U3 |
| 1 | TPS54202DDC | SOT-23-6 | U4 |
| 2 | SiP3250x | SOT-23-6_Handsoldering | U5, U6 |
| 1 | NX2016SA-24M | Oscillator_SMD_Abracon_ASE-4Pin_3.2x2.5mm | X1 |
| 1 | NX2012SA32768K1 | Crystal_SMD_2012-2Pin_2.0x1.2mm_HandSoldering | Y1 |
| 4 | Conn_01x27 | PinHeader_1x27_P2.54mm_Vertical | J1, J2, J3, J4 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J5 |
| 1 | Conn_02x05_Odd_Even | PinHeader_2x05_P1.27mm_Vertical_SMD | J6 |
| 1 | Conn_01x08 | PinHeader_1x08_P2.54mm_Vertical | J7 |
| 2 | USB_B_Micro | USB_Micro-B_Molex-105017-0001 | J8, J14 |
| 1 | Barrel_Jack | BarrelJack_Horizontal | J9 |
| 1 | Micro_SD_Card_Det | microSD_HC_Molex_104031-0811 | J10 |
| 1 | USB_C_Receptacle_USB2.0 | 213716-0001_THT_Socket_RightAngle | J11 |
| 1 | Conn_01x02 | Molex_KK-254_AE-6410-02A_1x02_P2.54mm_Vertical | J12 |
| 1 | SW_SPST | Panasonic_EVQPUK_EVQPUB | SW2 |
| 4 | LED | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1, D2, D3, D4 |
| 1 | 4.7uH | L_Bourns-SRN6028 | L2 |
| 1 | LQM18FN4R7M00D | L_0201_0603Metric_Pad0.64x0.40mm_HandSolder | L3 |
Show 21 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 24 | 1uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C1, C12, C14, C17, C18, C19, C20, C21 +16 |
| 4 | 22uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C5, C8, C10 |
| 1 | 10uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C3 |
| 11 | 100nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C4, C36, C38, C40, C41, C42, C44, C52 +3 |
| 1 | 56pF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C6 |
| 3 | 2.2uF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C7, C9, C69 |
| 2 | 6.8pF NP0 | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C11, C16 |
| 3 | 10nF | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | C13, C15, C37 |
| 2 | 2.2uF | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C39, C43 |
| 7 | 1K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R1, R2, R5, R7, R9, R22, R52 |
| 1 | 100K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R3 |
| 1 | 82K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R4 |
| 3 | 10K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R6, R15, R21 |
| 1 | 3K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R8 |
| 2 | 240R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R10, R11 |
| 5 | 47K | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R12, R13, R40, R41, R42 |
| 1 | 100R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R14 |
| 4 | 0R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R16, R17, R23, R24 |
| 3 | 2K2 | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R18, R19, R26 |
| 1 | 10R | R_0402_1005Metric_Pad0.72x0.64mm_HandSolder | R20 |
| 1 | 0R | C_0402_1005Metric_Pad0.74x0.62mm_HandSolder | R25 |
STM32MP1 TestBoard RevB design files
The KiCad project lives in the cracked-machine/STM32MP1_TestBoard_RevB repository on GitHub; these links point at the commit this page was built from.
STM32MP1 TestBoard RevB: common questions
What microcontroller does the STM32MP1 TestBoard RevB use?
The STM32MP1 TestBoard RevB is built around the STM32MP157xAB, from the STM32 family.
How big is the STM32MP1 TestBoard RevB PCB?
The STM32MP1 TestBoard RevB measures 73.7 × 80 mm and is 1.6 mm thick.
How many components are on the STM32MP1 TestBoard RevB?
109 components, from 41 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the STM32MP1 TestBoard RevB design files?
From the cracked-machine/STM32MP1_TestBoard_RevB repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the STM32MP1 TestBoard RevB design in my own project?
Yes, under the terms of its MIT license, which cracked-machine chose for the repository.
Can I test firmware for the STM32MP1 TestBoard RevB without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
