Rp2040 test board
Crem2y·rp2040_test_board
About the Rp2040 test board
Rp2040 test board is an open source RP2040/RP2350 PCB design by Crem2y, published on GitHub. It is a 2-layer board measuring 33 × 61 mm, with 51 components from 23 distinct parts.
Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AP2112K-3.3 and W25Q16JVSS. By type, the board carries 17 resistors, 14 capacitors, 9 connectors, 5 diodes, 3 ICs and 1 crystal.
From the project

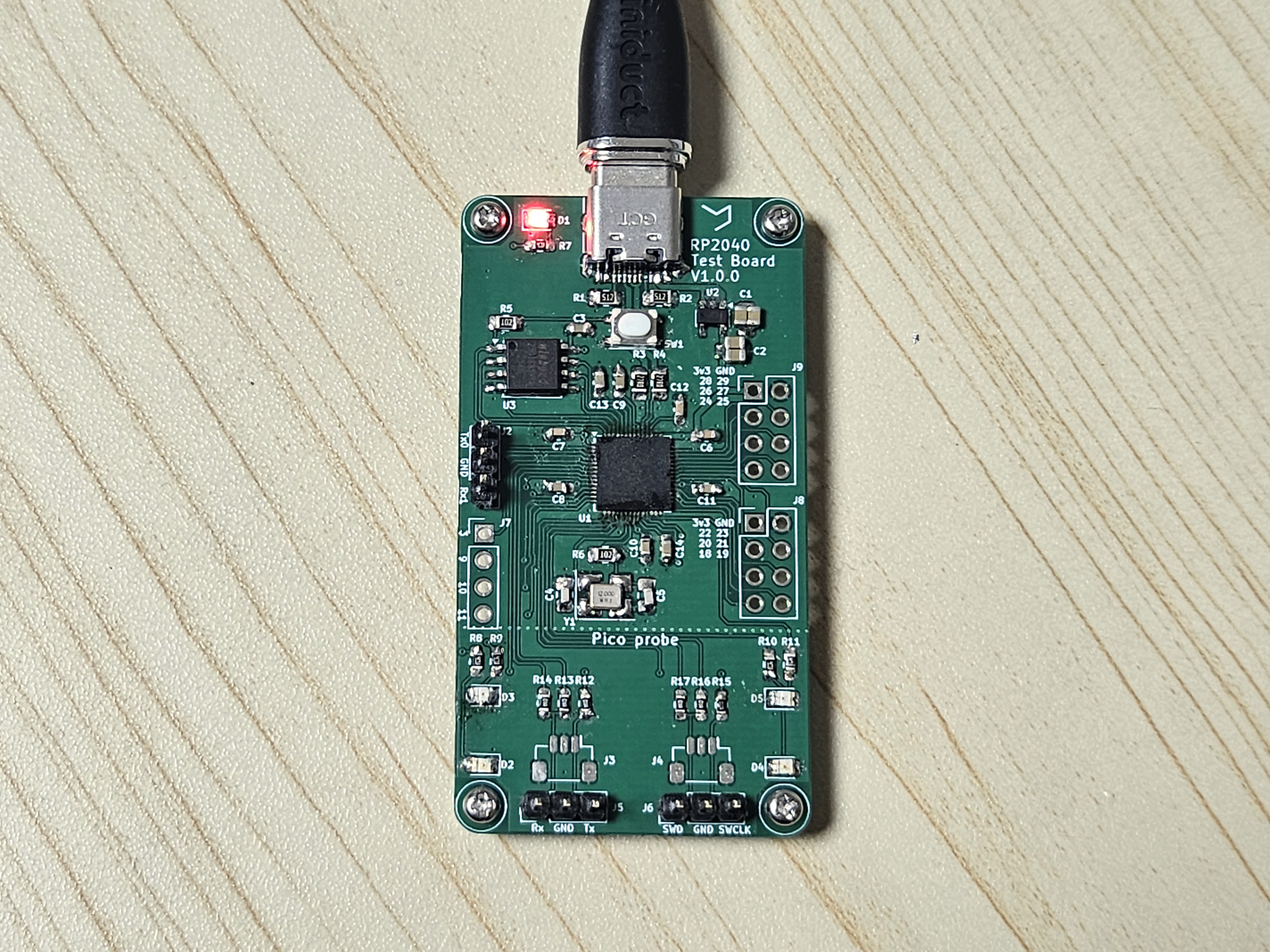

rp2040 test board

Main components on the Rp2040 test board
Rp2040 test board bill of materials (BOM)
51 components, 23 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | RP2040 | QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm | U1 |
| 1 | AP2112K-3.3 | SOT-23-5 | U2 |
| 1 | W25Q16JVSS | SOIC-8_5.3x5.3mm_P1.27mm | U3 |
| 1 | 12MHz | Crystal_SMD_3225-4Pin_3.2x2.5mm_HandSoldering | Y1 |
| 1 | USB_C_Receptacle_USB2.0_16P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 3 | Conn_01x03_Pin | PinHeader_1x03_P2.54mm_Vertical | J2, J5, J6 |
| 2 | Conn_01x03_MountingPin | JST_SH_BM03B-SRSS-TB_1x03-1MP_P1.00mm_Vertical | J3, J4 |
| 1 | Conn_01x04 | PinHeader_1x04_P2.54mm_Vertical | J7 |
| 2 | Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J8, J9 |
| 1 | SW_Push | SW_Push_1P1T_NO_Vertical_Wuerth_434133025816 | SW1 |
| 1 | TestPoint | TestPoint_THTPad_D2.5mm_Drill1.2mm | TP4 |
| 1 | RED | LED_0805_2012Metric | D1 |
| 2 | GREEN | LED_0805_2012Metric | D2, D4 |
| 2 | YELLOW | LED_0805_2012Metric | D3, D5 |
| 2 | 22u | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2 |
| 7 | 100n | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C3, C8, C9, C10, C11, C13, C14 |
| 2 | 15p | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C4, C5 |
| 3 | 2n2 | C_0603_1608Metric_Pad1.08x0.95mm_HandSolder | C6, C7, C12 |
| 2 | 5.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R2 |
| 2 | 27 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R3, R4 |
Show 3 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R5, R6 |
| 5 | 470 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R7, R8, R9, R10, R11 |
| 6 | 100 | R_0603_1608Metric_Pad0.98x0.95mm_HandSolder | R12, R13, R14, R15, R16, R17 |
Rp2040 test board design files
The KiCad project lives in the Crem2y/rp2040_test_board repository on GitHub; these links point at the commit this page was built from.
- Layoutrp2040_test_board.kicad_pcb
- Schematicrp2040_test_board.kicad_sch
Rp2040 test board: common questions
What microcontroller does the Rp2040 test board use?
The Rp2040 test board is built around the RP2040, from the RP2040/RP2350 family.
How big is the Rp2040 test board?
The Rp2040 test board measures 33 × 61 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Rp2040 test board?
51 components, from 23 distinct parts. The full bill of materials is listed on this page.
Where can I download the Rp2040 test board design files?
From the Crem2y/rp2040_test_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Rp2040 test board design in my own project?
The repository has no license, so all rights stay with Crem2y. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Rp2040 test board without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
