About the Cupltag PCB
Cupltag is an open source TI MSP430/CC PCB design by cuplsensor, published on GitHub under the Custom license license. It is a 2-layer board measuring 54 × 54 mm, with 25 components from 20 distinct parts.
Its main chip is the MSP430FR2155TDBT, from the TI MSP430/CC family. Other key parts include the HDC2022DEPR, NT3H2111W0FTTJ and SIP32431DR3-T1GE3. By type, the board carries 9 capacitors, 5 resistors, 4 ICs, 1 crystal, 1 connector and 1 antenna.
It belongs with the sensors and wearables designs in this gallery.
From the project
cupl Tag Firmware and Hardware

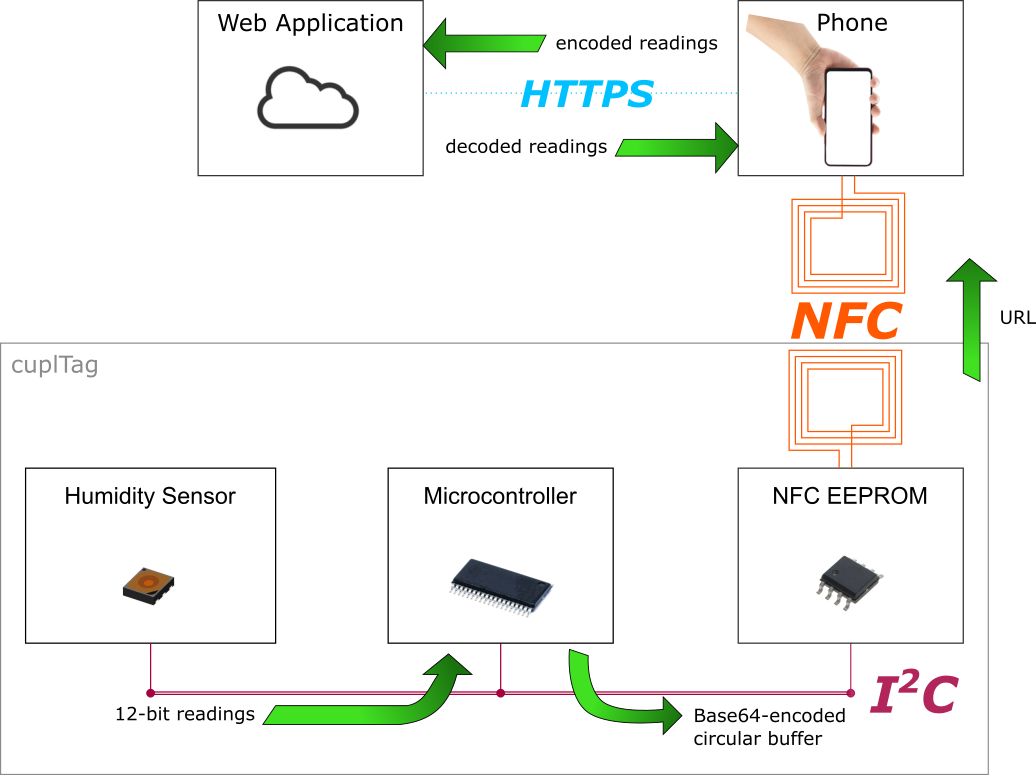

The firmware runs on a low power MSP430 microcontroller. It periodically reads temperature and humidity from an HDC2022 sensor. Readings are base-64 encoded and stored in a URL, which resides on an NFC EEPROM.
When a phone is hovered over a cuplTag, the URL is read and a web browser opens (demo). No app is required. The web application decodes, timestamps and displays readings to the user.

Main components on the Cupltag
Cupltag bill of materials (BOM)
25 components, 20 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | HDC2022DEPR | HDC2021 | U1 |
| 1 | NT3H2111W0FTTJ | TSSOP-8_3x3mm_P0.65mm | U2 |
| 1 | MSP430FR2155TDBT | TSSOP-38_4.4x9.7mm_P0.5mm | U3 |
| 1 | SIP32431DR3-T1GE3 | SOT-363_SC-70-6 | U4 |
| 1 | 32K768 | Crystal_SMD_2012-2Pin_2.0x1.2mm_HandSoldering | Y1 |
| 1 | CONN_02X04_ODD_EVEN Conn_02x04_Odd_Even | PinHeader_2x04_P2.54mm_Vertical | J30 |
| 1 | Antenna_Loop | Class_6_NXP_7loop_150u | AE1 |
| 1 | CR1220 | MPD_BC501SM_CR1220 | BT30 |
| 1 | JUMPER_2_OPEN Jumper_2_Open | PinHeader_1x02_P2.54mm_Vertical | JP30 |
| 1 | SW_Push | SW_SPST_EVQP2 | SW30 |
| 1 | D_Schottky | D_SOD-523 | D1 |
| 1 | 1N | C_0402_1005Metric | C1 |
| 3 | 100N | C_0402_1005Metric | C2, C6, C8 |
| 2 | 22P | C_0402_1005Metric | C3, C4 |
| 1 | 10U | C_0603_1608Metric | C7 |
| 1 | 0P | C_0402_1005Metric | C9 |
| 1 | 18P | C_0402_1005Metric | C10 |
| 2 | 10K | R_0402_1005Metric | R1, R2 |
| 1 | 100K | R_0402_1005Metric | R3 |
| 2 | 47K | R_0402_1005Metric | R30, R31 |
Cupltag design files
The KiCad project lives in the cuplsensor/cupltag repository on GitHub; these links point at the commit this page was built from.
Cupltag: common questions
What microcontroller does the Cupltag use?
The Cupltag is built around the MSP430FR2155TDBT, from the TI MSP430/CC family.
How big is the Cupltag PCB?
The Cupltag measures 54 × 54 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Cupltag?
25 components, from 20 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Cupltag design files?
From the cuplsensor/cupltag repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.
Can I use the Cupltag design in my own project?
It is published under Custom license, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Cupltag without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug TI MSP430/CC firmware against it before you order a PCB.
