Usb ch341 e22p
About the Usb ch341 e22p PCB
Usb ch341 e22p is an open source PCB design by cvaldess, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 49.2 × 63.5 mm, with 35 components from 25 distinct parts.
Other key parts include the CH341F, 24C02S(XBLW), E22P-868M30S, XC6206P332MR and TPS2115ADRBT. By type, the board carries 13 capacitors, 9 resistors, 7 ICs, 3 diodes and 1 crystal.
It belongs with the rf & radio designs in this gallery.
From the project

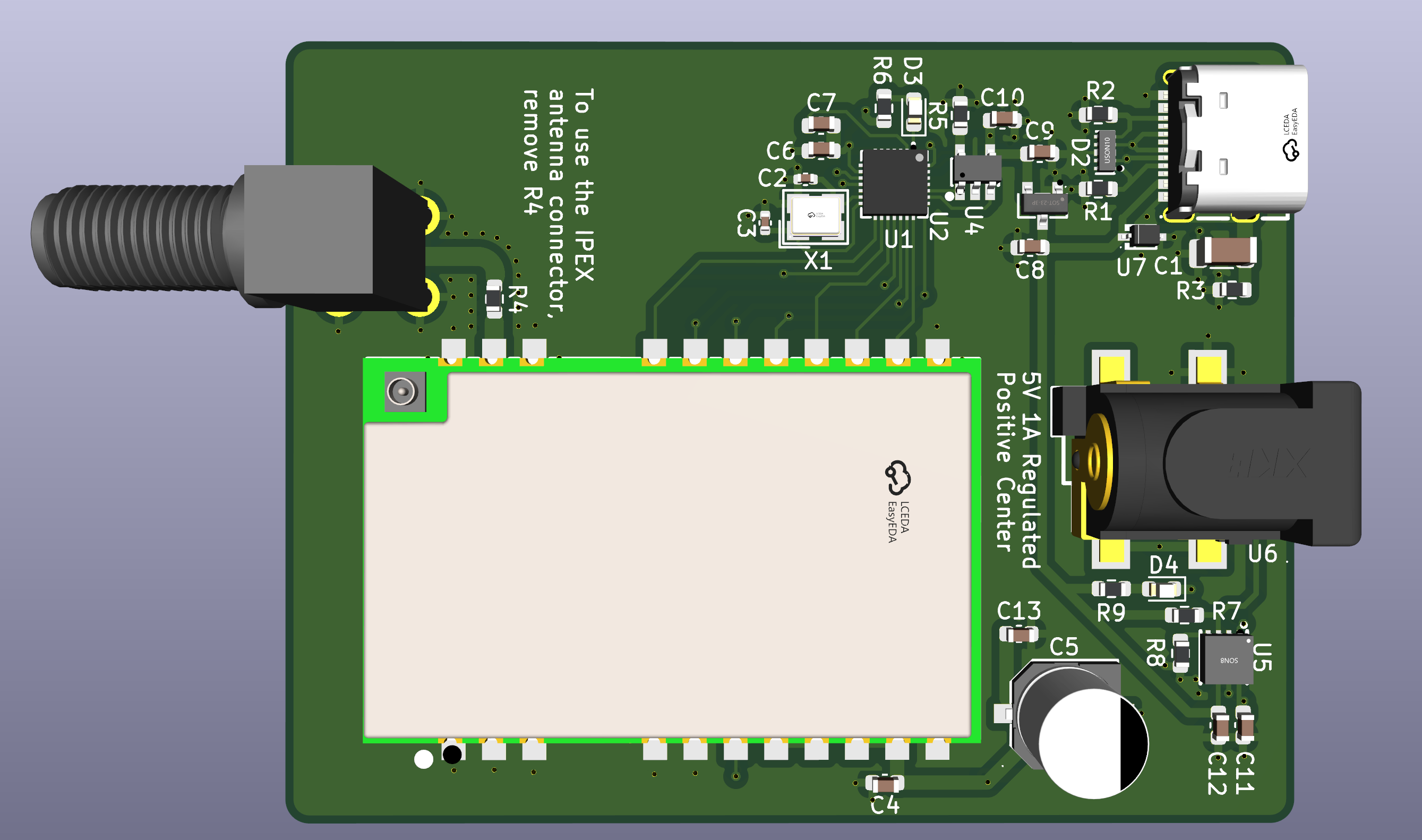

Adaptador USB->SPI (CH341F) para modulos LoRa EBYTE E22P-868M30S de 1 W con meshtasticd
Adaptador USB → SPI para usar un módulo LoRa EBYTE E22P-868M30S (SX1262 + PA, 30 dBm / 1 W) con meshtasticd en un PC o una Raspberry Pi, sin necesidad de GPIO.
El puente es un CH341F en modo UIO, que es el que soporta el driver libch341-spi-userspace de Meshtastic. Un multiplexor TPS2115A conmuta automáticamente entre la alimentación del USB y la de un jack DC, de modo que el módulo puede transmitir a plena potencia sin sobrecargar el puerto del ordenador.
Main components on the Usb ch341 e22p
Usb ch341 e22p bill of materials (BOM)
35 components, 25 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | CH341F WCH(南京沁恒) | QFN-28_L4.0-W4.0-P0.40-BL-EP | U1 |
| 1 | 24C02S(XBLW) 24C02S XBLW(芯伯乐) | SOT-23-5_L3.0-W1.6-P0.95-LS2.8-BR | U2 |
| 1 | E22P-868M30S | PE22(900M30S) | U3 |
| 1 | XC6206P332MR XC6206P332MR_C5148692 HXY MOSFET(华轩阳电子) | SOT-23-3_L2.9-W1.3-P1.90-LS2.4-BR | U4 |
| 1 | TPS2115ADRBT TI(德州仪器) | SON-8_L3.0-W3.0-P0.65-TL-EP | U5 |
| 1 | DC-005-2.5A-2.5-SMT XKB Connection(中国星坤) | DC-IN-TH_XKB_DC-005-2.5A-2.5-SMT | U6 |
| 1 | H7VHD3UA R+O(宏嘉诚) | SOD-323_L1.7-W1.3-LS2.7-RD | U7 |
| 1 | X322512MSB4SI YXC(扬兴晶振) | CRYSTAL-SMD_4P-L3.2-W2.5-BL | X1 |
| 1 | - 皇捷 | SMA-TH_HJ-SMA175 | SMA1 |
| 1 | KH-TYPE-C-16P kinghelm(金航标) | USB-C-SMD_KH-TYPE-C-16P | USB1 |
| 1 | TPD4E05U06DQAR Texas Instruments | USON-10_L2.5-W1.0-P0.50-BL | D2 |
| 1 | C7371903 Green | LED_0603_1608Metric | D3 |
| 1 | C7371903 Blue | LED_0603_1608Metric | D4 |
| 1 | 4.7NF/1KV 4.7nF/1kV | C_1206_3216Metric | C1 |
| 2 | 20PF 20pF | C_0402_1005Metric | C2, C3 |
| 6 | 100NF 100nF | C_0603_1608Metric | C4, C6, C7, C10, C11, C12 |
| 1 | HV1C477M0607PZ HONOR(荣誉) | CAP-SMD_BD6.3-L6.6-W6.6-LS7.8-FD | C5 |
| 2 | 1UF 1uF | C_0603_1608Metric | C8, C9 |
| 1 | 10UF 10uF | C_0603_1608Metric | C13 |
| 2 | 5.1K | R_0603_1608Metric | R1, R2 |
Show 5 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | 1M | R_0603_1608Metric | R3 |
| 1 | 0R | R_0603_1608Metric | R4 |
| 2 | 10K | R_0603_1608Metric | R5, R7 |
| 2 | 1K | R_0603_1608Metric | R6, R9 |
| 1 | 390R | R_0603_1608Metric | R8 |
Usb ch341 e22p design files
The KiCad project lives in the cvaldess/usb_ch341_e22p repository on GitHub; these links point at the commit this page was built from.
- Layoutusb_ch341_e22p.kicad_pcb
- Schematicusb_ch341_e22p.kicad_sch
- BOMfab/bom-jlcpcb.csv
Usb ch341 e22p: common questions
How big is the Usb ch341 e22p PCB?
The Usb ch341 e22p measures 49.2 × 63.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Usb ch341 e22p?
35 components, from 25 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Usb ch341 e22p design files?
From the cvaldess/usb_ch341_e22p repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Usb ch341 e22p design in my own project?
Yes, under the terms of its CC-BY-SA-4.0 license, which cvaldess chose for the repository.
