Prusa chain production
About the Prusa chain production PCB
Prusa chain production is an open source AVR/Arduino PCB design by d-weber, published on GitHub under the CC-BY-NC-4.0 license. It is a 2-layer board measuring 55.9 × 76.2 mm, with 18 components from 11 distinct parts.
Its main chip is the Arduino_pro_micro, from the AVR/Arduino family. Other key parts include the A4988 and MC7800AE. By type, the board carries 4 ICs, 3 capacitors, 2 modules, 2 transistors, 2 relays and 2 LEDs.
It belongs with the robotics & motion designs in this gallery.
From the project

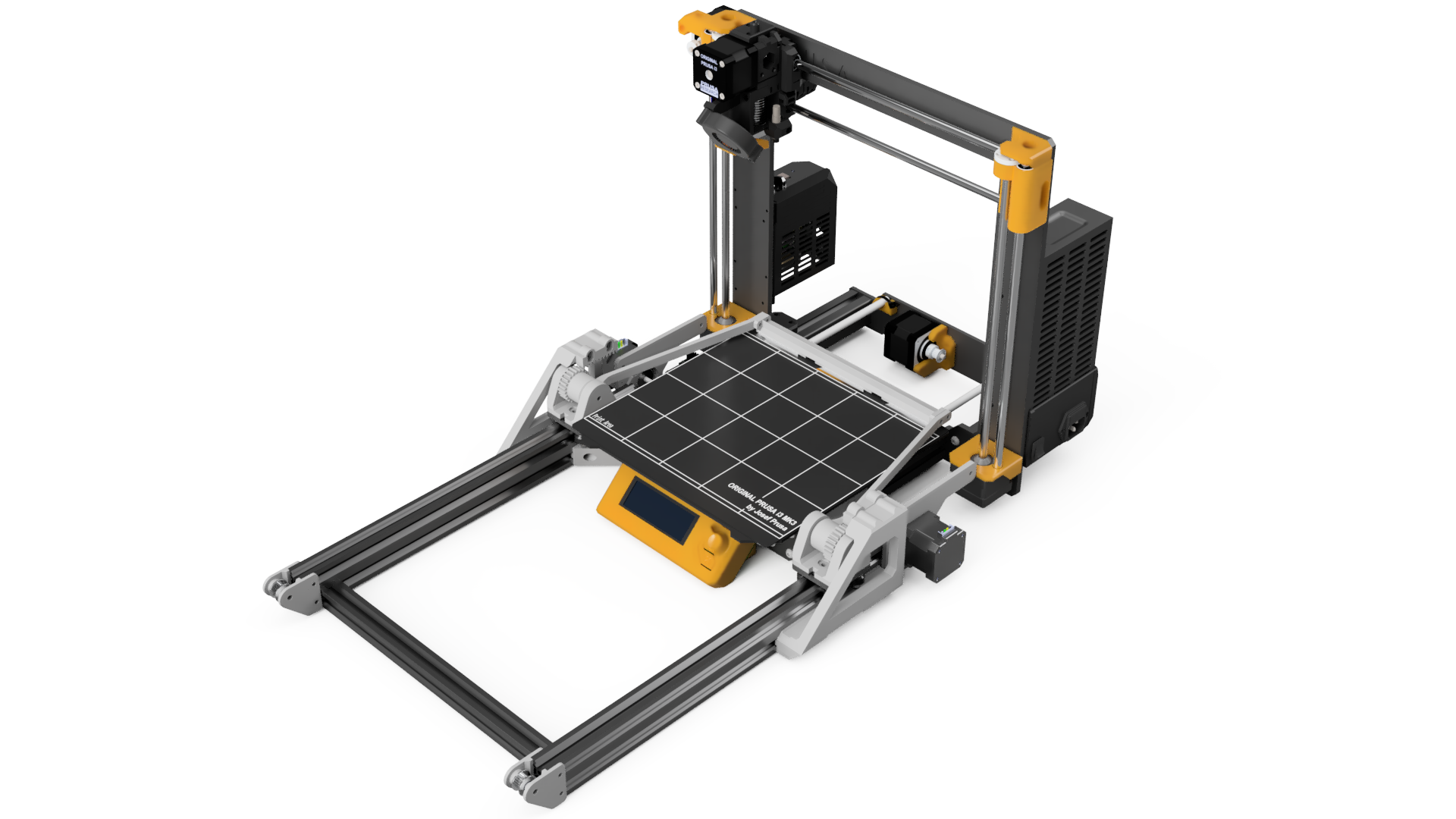

Add chain production capability to your Prusa i3
Description | Count | Français | English ------------ | ------------- | ------------- | ------------- Nema 17 stepper | 2 | AliExpress | AliExpress 350mm 2040 V-SLOT Aluminium profile | 2 | AliExpress | AliExpress 300mm 2020 V-SLOT Aluminium profile | 1 | AliExpress | AliExpress Mini V-SLOT gantry | 2 | AliExpress | AliExpress Angle bracket for 2020 | 2 | AliExpress | AliExpress 20T 6MM GT2 Idler pulley | 2 | AliExpress | AliExpress 20T 6MM GT2 Motor pulley | 2 | AliExpress | AliExpress 1M 6MM GT2 Belt | 2 | AliExpress | AliExpress 120MM 12V FAN | 2 | AliExpress | AliExpress TMC2130 SPI…
Main components on the Prusa chain production
Prusa chain production bill of materials (BOM)
18 components, 11 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Arduino_pro_micro | ARDUINOPROMICRO | U1 |
| 2 | A4988 | A4988 | U2, U3 |
| 1 | MC7800AE | TO-220-3_Horizontal_TabDown | U4 |
| 2 | Conn_01x04_Male | PinHeader_1x04_P2.54mm_Vertical | M1, M2 |
| 2 | 2N2222 | TO-18-3 | Q1, Q2 |
| 1 | Screw_Terminal_01x02 | TerminalBlock_Phoenix_MKDS-1,5-2-5.08_1x02_P5.08mm_Horizontal | J1 |
| 2 | Conn_01x02_Female | Molex_KK-254_AE-6410-03A_1x03_P2.54mm_Vertical | FAN1, FAN2 |
| 2 | AZ850-x | Relay_DPDT_Panasonic_JW2 | K1, K2 |
| 2 | Conn_01x02_Female | Molex_SL_171971-0002_1x02_P2.54mm_Vertical | LED1, LED2 |
| 1 | 0.33u | CP_Radial_D5.0mm_P2.00mm | C1 |
| 2 | 100u | CP_Radial_D8.0mm_P3.50mm | C2, C3 |
Prusa chain production design files
The KiCad project lives in the d-weber/prusa-chain-production repository on GitHub; these links point at the commit this page was built from.
Prusa chain production: common questions
What microcontroller does the Prusa chain production use?
The Prusa chain production is built around the Arduino_pro_micro, from the AVR/Arduino family.
How big is the Prusa chain production PCB?
The Prusa chain production measures 55.9 × 76.2 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Prusa chain production?
18 components, from 11 distinct parts. The full bill of materials is listed on this page.
Where can I download the Prusa chain production design files?
From the d-weber/prusa-chain-production repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the Prusa chain production design in my own project?
It is published under CC-BY-NC-4.0, which limits how it may be reused; read the license before building on it.
Can I test firmware for the Prusa chain production without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
