About the Keyboard v2 PCB

Keyboard v2 is an open source RP2040/RP2350 PCB design by daaminashai, published on GitHub under the MIT license. It is a 2-layer board measuring 290.9 × 123.4 mm, with 137 components from 12 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 72 diodes, 61 switches, 3 resistors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

a custom mechanical keyboard made from scratch

- 61x keys! - Default 60% Layout - 2x EC11 Rotary Encoder - For Volume, Brightness etc - 9x LEDs with acrylic for aesthetics (multicolor) - COOOL Silkscreen - 5° inclined case - Comfy Design - KMK firmware

I made this keyboard since I wanted a compact alternative to my bigger keyboard, this keyboard is pretty small in size and has most of the necessary keys. I also wanted to make this one look aesthetically pleasing instead of my old keyboard which did not look really good 😭.

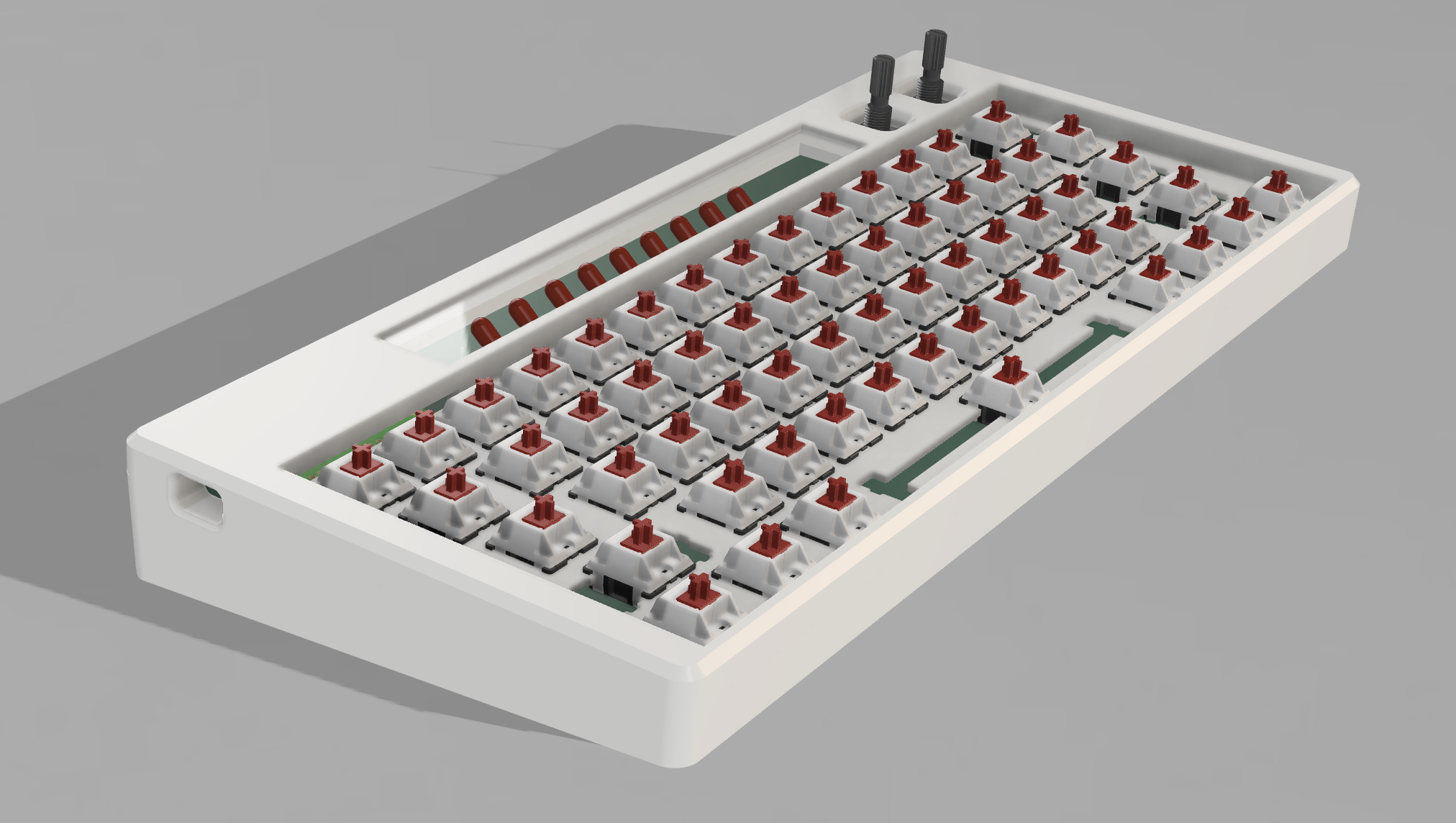

Keyboard v2, from the project README — From the project README

Main components on the Keyboard v2

Pico

Keyboard v2 bill of materials (BOM)

137 components, 12 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD_TH	U1
46	SW_Push	SW_Cherry_MX_1.00u_PCB	SW1, SW2, SW3, SW4, SW5, SW6, SW7, SW8 +38
1	SW_Push	SW_Cherry_MX_2.00u_PCB	SW14
2	SW_Push	SW_Cherry_MX_1.50u_PCB	SW15, SW28
1	SW_Push	SW_Cherry_MX_1.75u_PCB	SW29
2	SW_Push	SW_Cherry_MX_2.25u_PCB	SW41, SW42
1	SW_Push	SW_Cherry_MX_2.75u_PCB	SW53
7	SW_Push	SW_Cherry_MX_1.25u_PCB	SW54, SW55, SW56, SW58, SW59, SW60, SW61
1	SW_Push	SW_Cherry_MX_6.25u_PCB	SW57
63	1N4148	D_DO-35_SOD27_P7.62mm_Horizontal	D1, D2, D3, D4, D5, D6, D7, D8 +55
9	LED_Small	LED_D5.0mm	D64, D65, D66, D67, D68, D69, D70, D71 +1
3	330Ω	R_Axial_DIN0309_L9.0mm_D3.2mm_P20.32mm_Horizontal	R1, R2, R3

Keyboard v2 design files

The KiCad project lives in the daaminashai/keyboard-v2 repository on GitHub; these links point at the commit this page was built from.

Keyboard v2: common questions

What microcontroller does the Keyboard v2 use?

The Keyboard v2 is built around the Pico, from the RP2040/RP2350 family.

How big is the Keyboard v2 PCB?

The Keyboard v2 measures 290.9 × 123.4 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Keyboard v2?

137 components, from 12 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Keyboard v2 design files?

From the daaminashai/keyboard-v2 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Keyboard v2 design in my own project?

Yes, under the terms of its MIT license, which daaminashai chose for the repository.
