Macropad PCB layout, top view — open source RP2040/RP2350 board by daaminashai

About the Macropad PCB

Macropad is an open source RP2040/RP2350 PCB design by daaminashai, published on GitHub. It is a 2-layer board measuring 81 × 86 mm, with 25 components from 4 distinct parts.

Its main chip is the XIAO-RP2040-DIP, from the RP2040/RP2350 family. By type, the board carries 12 diodes, 11 switches, 1 IC and 1 LED.

It belongs with the keyboards designs in this gallery.

From the project

a custom macropad - made from scratch.

I wanted to boost my productivity and add an aesthetic looking device to my desk setup.

Believe it or not, this was my first time using Fusion 360! I spammed ChatGPT and #hackpad with queries. It also took me a lotta time making the PCB and routing it 😭. I had to reroute a hundred times.

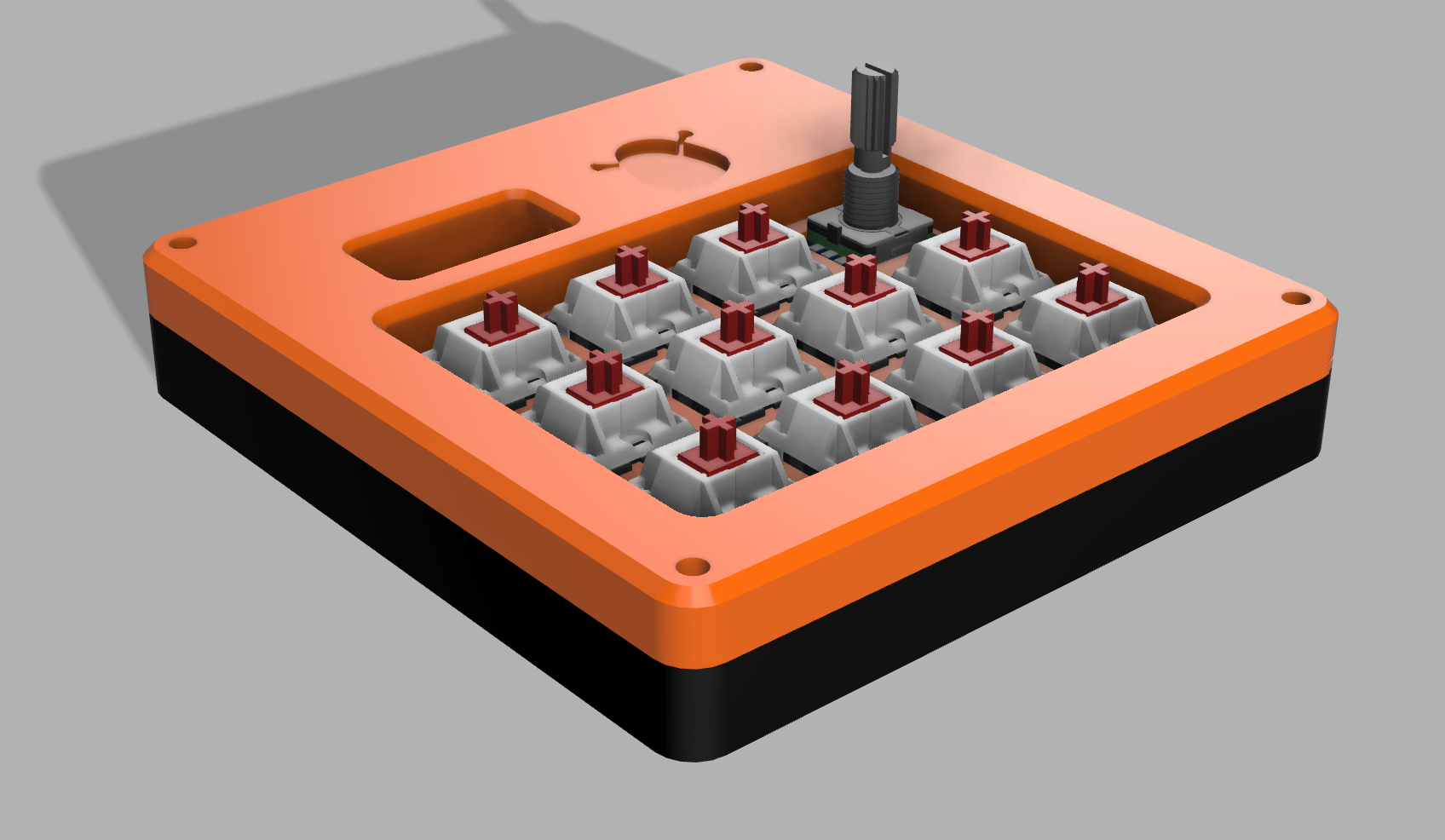

The case features a very hot Orange and Black look with the keycaps being black and Knob being orange too.

Macropad, from the project README
From the project README

Main components on the Macropad

XIAO-RP2040-DIP

Macropad bill of materials (BOM)

25 components, 4 distinct parts.

QtyPartRefs
1
XIAO-RP2040-DIP
U1
11
SW_Push
SW1, SW2, SW3, SW5, SW6, SW7, SW8, SW9 +3
1
SSD1306
Brd1
12
1N4148
D1, D4, D5, D6, D7, D8, D9, D10 +4

Macropad design files

The KiCad project lives in the daaminashai/macropad repository on GitHub; these links point at the commit this page was built from.

Macropad: common questions

What microcontroller does the Macropad use?

The Macropad is built around the XIAO-RP2040-DIP, from the RP2040/RP2350 family.

How big is the Macropad PCB?

The Macropad measures 81 × 86 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Macropad?

25 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Macropad design files?

From the daaminashai/macropad repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Macropad design in my own project?

The repository has no license, so all rights stay with daaminashai. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Macropad without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
