Pcb stator

dakata1337·open-esl·h1/pcb-stator/pcb-stator.kicad_pcb

Pcb stator layout, top view — open source board by dakata1337
Simulate this board

About the Pcb stator

Pcb stator is an open source PCB design by dakata1337, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 92.5 × 126.1 mm, with 1 components from 1 distinct parts.

It belongs with the audio designs in this gallery.

From the project

This project aims to create an entirely open source DIY electrostatic headphones.

Fully open-source electrostatic headphones — designed from the ground up for DIY builders who want high-end sound without proprietary parts.

H1 is the current flagship design — a major upgrade over the Jade II clone.

Everything you need to manufacture H1 is inside the h1/ folder.

Coming Soon — a full spreadsheet with part numbers, JLCPCB/PCBWay links, and 3D-print settings will be added to h1/.

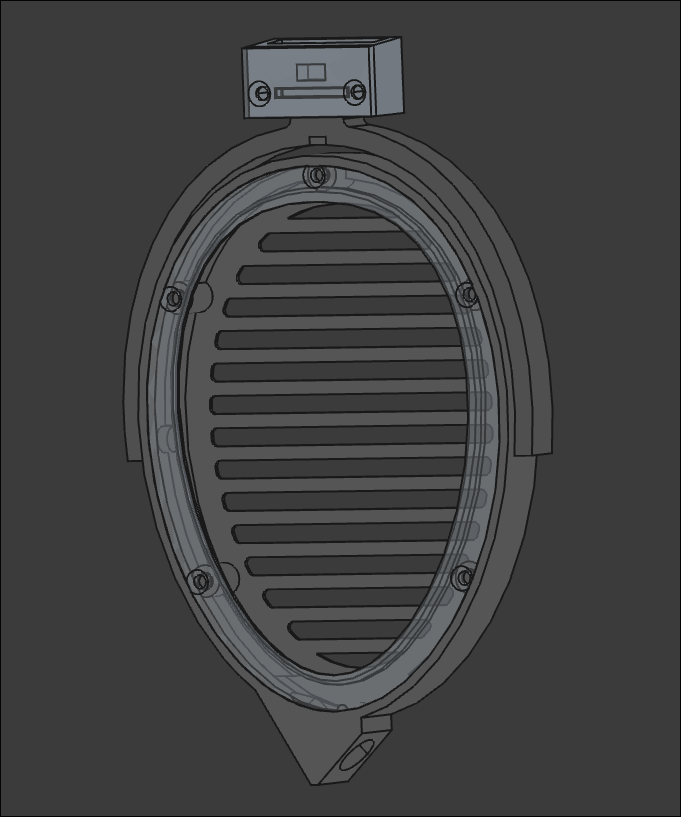

Pcb stator, from the project README
From the project README

Pcb stator bill of materials (BOM)

1 components, 1 distinct parts.

QtyPartRefs
1
Conn_01x01_Pin
J1

Pcb stator design files

The KiCad project lives in the dakata1337/open-esl repository on GitHub; these links point at the commit this page was built from.

Pcb stator: common questions

How big is the Pcb stator?

The Pcb stator measures 92.5 × 126.1 mm, has 2 copper layers and is 1 mm thick.

How many components are on the Pcb stator?

1 components, from 1 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pcb stator design files?

From the dakata1337/open-esl repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pcb stator design in my own project?

Yes, under the terms of its GPL-2.0 license, which dakata1337 chose for the repository.
