AirBoxnano PCB layout, top view — open source AVR/Arduino board by danfei

About the AirBoxnano PCB

AirBoxnano is an open source AVR/Arduino PCB design by danfei, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 44 × 21 mm, with 30 components from 19 distinct parts.

Its main chip is the ATmega32U4-AU, from the AVR/Arduino family. Other key parts include the NCP1117ST33T3G. By type, the board carries 14 capacitors, 7 resistors, 4 connectors, 2 ICs, 1 crystal and 1 LED.

From the project

AirBoxnano ============ This project uses the Plantower PMS5003S to detect PM2.5 and HCHO in the air.

AirBoxnano ============ This project uses the Plantower PMS5003S to detect PM2.5 and HCHO in the air.

[schem]:https://github.com/danfei/AirBoxnano/raw/master/hardware/AirBoxnano.pdf [bom]:https://github.com/danfei/AirBoxnano/raw/master/manufacturing/AirBoxnano_bom.csv [lc]:https://github.com/danfei/AirBoxnano/raw/master/manufacturing/airboxnano.dxf

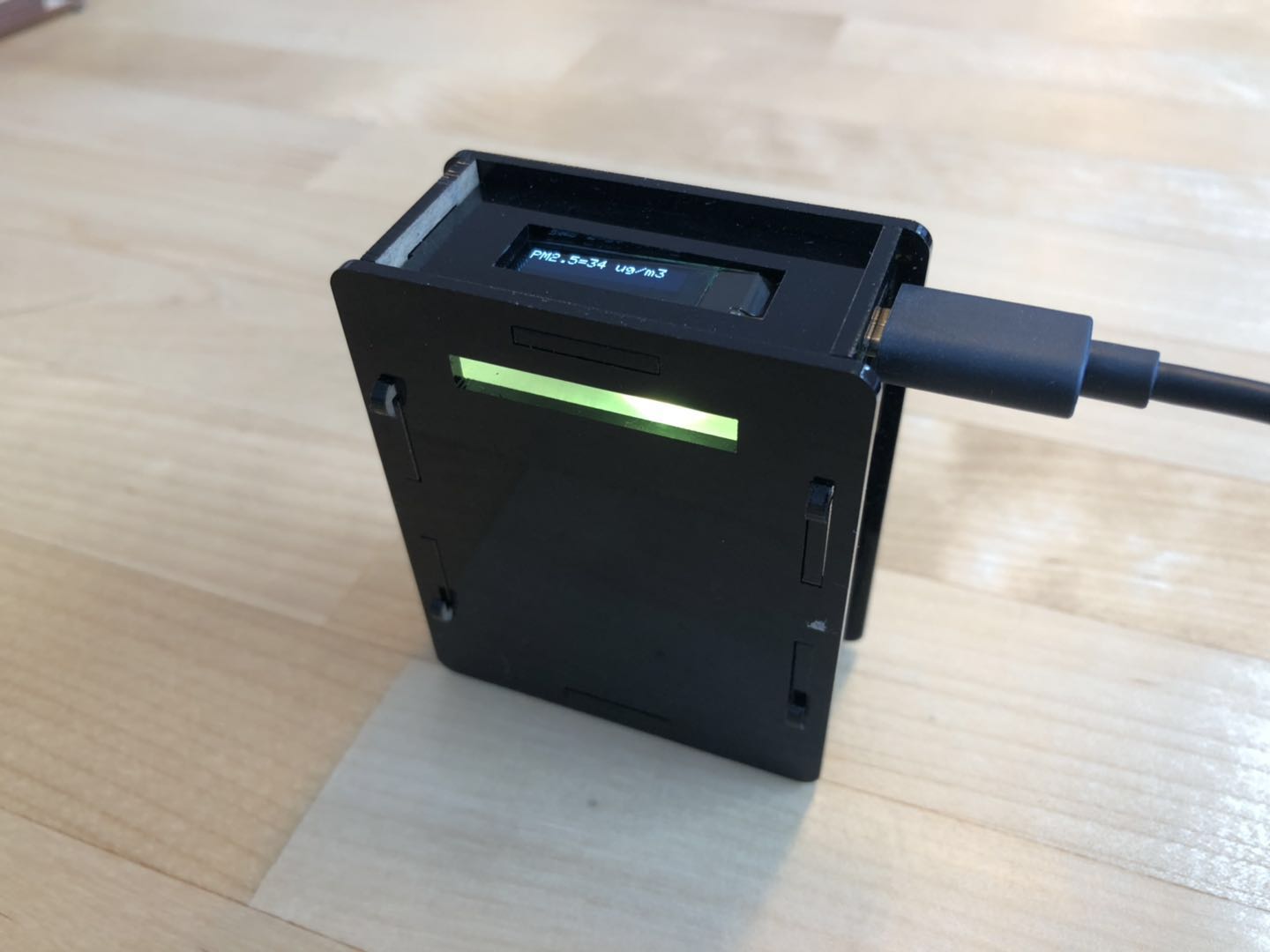

AirBoxnano, from the project README
From the project README

Main components on the AirBoxnano

ATmega32U4-AUNCP1117ST33T3G

AirBoxnano bill of materials (BOM)

30 components, 19 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ATmega32U4-AU
U1
1
NCP1117ST33T3G
U2
1
16MHZ
16MHz
Y1
1
CONN_01X14
P1
1
CONN_01X08
P2
2
CONN_01X14
P3, P4
1
USB_B
CONN1
1
WS2812B
LED1
2
22P
C1, C2
1
22UF
22uF
C3
2
100NF
100nF
C4, C5
3
1UF
1uF
C6, C12, C13
1
10UF/25V
10uF/25V
C7
1
10UF
10uF
C8
4
4.7UF
4.7uF
C9, C10, C11, C14
2
1K
R1, R6
2
22R
R2, R3
2
10K
R4, R8
1
820K
R7

AirBoxnano design files

The KiCad project lives in the danfei/AirBoxnano repository on GitHub; these links point at the commit this page was built from.

AirBoxnano: common questions

What microcontroller does the AirBoxnano use?

The AirBoxnano is built around the ATmega32U4-AU, from the AVR/Arduino family.

How big is the AirBoxnano PCB?

The AirBoxnano measures 44 × 21 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the AirBoxnano?

30 components, from 19 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the AirBoxnano design files?

From the danfei/AirBoxnano repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the AirBoxnano design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which danfei chose for the repository.

Can I test firmware for the AirBoxnano without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
