TaskNode
About the TaskNode PCB
TaskNode is an open source PCB design by davitkhlghatyan2010-afk, published on GitHub. It is a 2-layer board measuring 100 × 84 mm, with 16 components from 5 distinct parts.
Other key parts include the MOUDLE-SEEEDUINO-XIAO and ER_OLEDM0.91_1x-I2C. By type, the board carries 7 switches, 7 diodes and 2 ICs.
It belongs with the keyboards, displays & leds and sensors designs in this gallery.
From the project

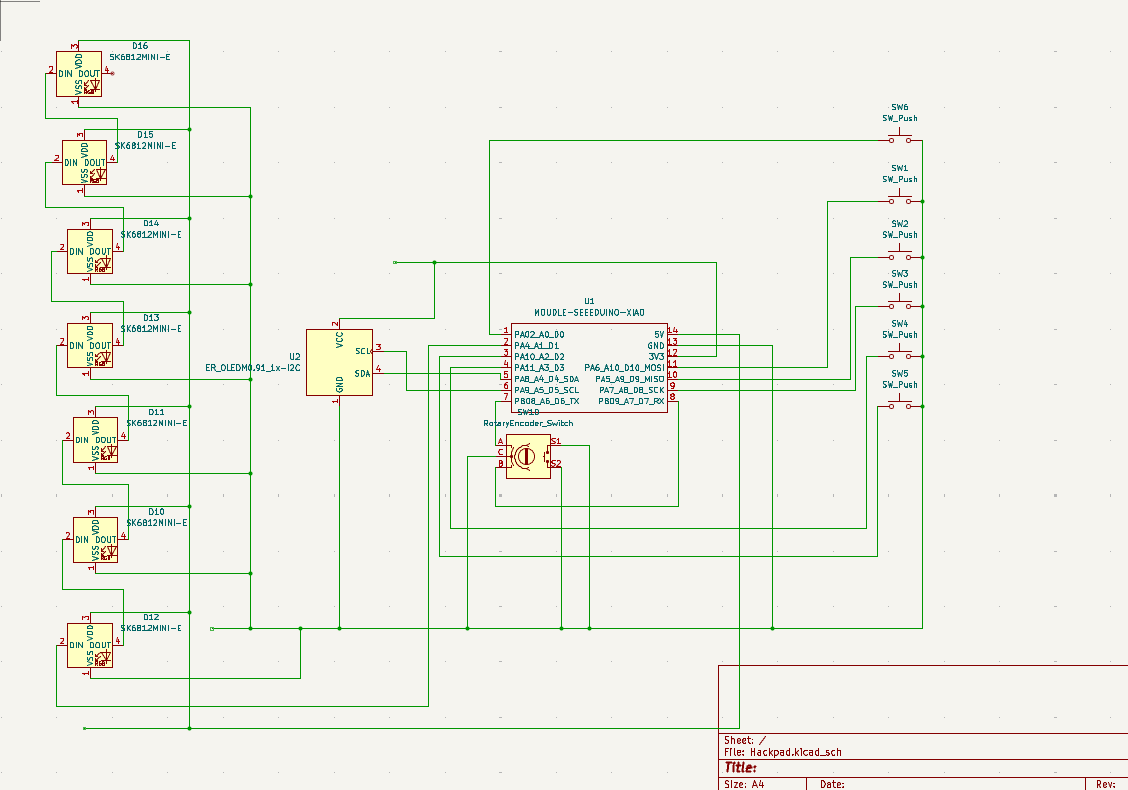

A compact, DIY custom macropad built around the Seeed Studio XIAO RP2040 microcontroller and running the open-source KMK Firmware (CircuitPython). This pad features 6 keyswitches, a 7-pixel chained SK6812 MINI-E RGB strip, a volume rotary encoder, and a sleek 0.91" SSD1306 128x32
A compact, DIY custom macropad built around the Seeed Studio XIAO RP2040 microcontroller and running the open-source KMK Firmware (CircuitPython). This pad features 6 keyswitches, a 7-pixel chained SK6812 MINI-E RGB strip, a volume rotary encoder, and a sleek 0.91" SSD1306 128x32 OLED display running custom frame animations.
Layer Height: 0.2mm Infill: 15% - 20% Gyroid (provides a solid weight distribution) Hardware Requirements:** Requires 6x M3 heatset inserts melted into the top case housing, secured using 6x M3x16mm screws from the base plate.
Main components on the TaskNode
TaskNode bill of materials (BOM)
16 components, 5 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | MOUDLE-SEEEDUINO-XIAO | XIAO-Generic-Hybrid-14P-2.54-21X17.8MM | U1 |
| 1 | ER_OLEDM0.91_1x-I2C | ER_OLEDM0.91_1x-I2C | U2 |
| 6 | SW_Push | SW_Cherry_MX_1.00u_PCB | SW1, SW2, SW3, SW4, SW5, SW6 |
| 1 | RotaryEncoder_Switch | RotaryEncoder_Alps_EC11E-Switch_Vertical_H20mm | SW10 |
| 7 | SK6812MINI-E | LED_SK6812MINI-E_3.2x2.8mm_P1.5mm_ReverseMount | D10, D11, D12, D13, D14, D15, D16 |
TaskNode design files
The KiCad project lives in the davitkhlghatyan2010-afk/TaskNode repository on GitHub; these links point at the commit this page was built from.
- LayoutPCB/Hackpad.kicad_pcb
- SchematicPCB/Hackpad.kicad_sch
- BOMBOM.csv
TaskNode: common questions
How big is the TaskNode PCB?
The TaskNode measures 100 × 84 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the TaskNode?
16 components, from 5 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the TaskNode design files?
From the davitkhlghatyan2010-afk/TaskNode repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the TaskNode design in my own project?
The repository has no license, so all rights stay with davitkhlghatyan2010-afk. Use it as a reference, and ask the author before reusing the design.
