2003-hall sensors board platter

DB375237·smarties·hardware/2003-hall-sensors-board-platter/2003-hall-sensors-board-platter.kicad_pcb

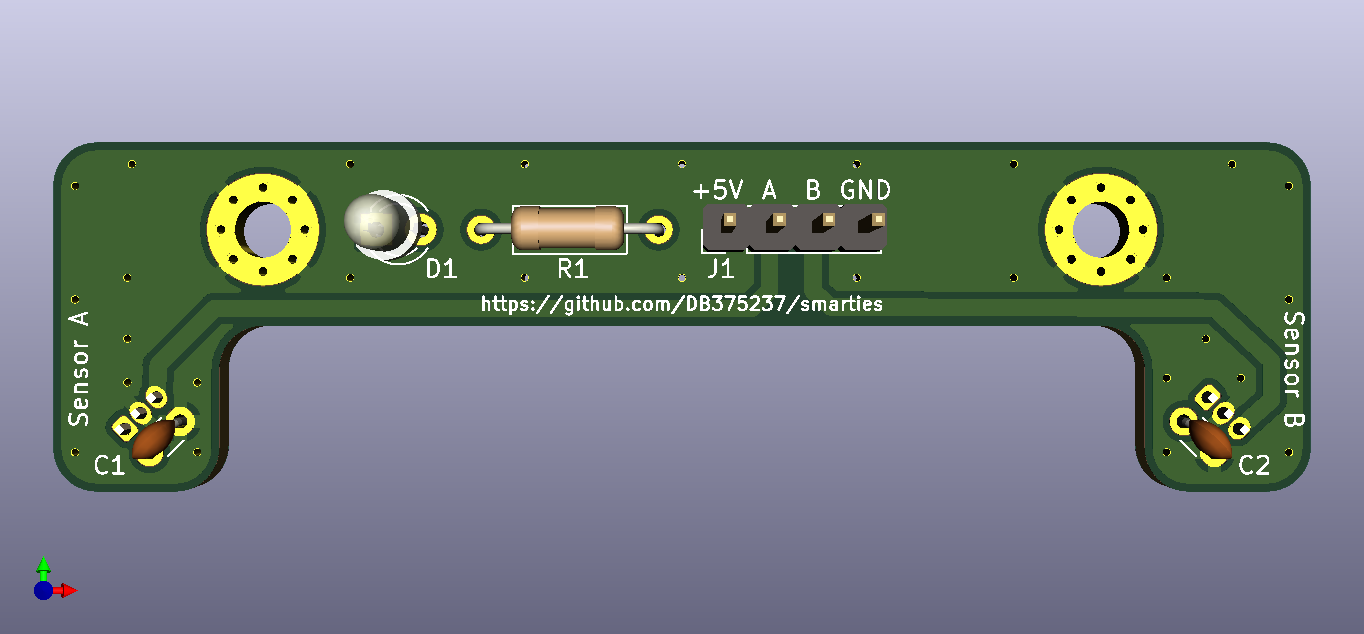

2003-hall sensors board platter layout, top view — open source board by DB375237

About the 2003-hall sensors board platter

2003-hall sensors board platter is an open source PCB design by DB375237, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 72 × 20 mm, with 7 components from 5 distinct parts.

Other key parts include the SS49X. By type, the board carries 2 ICs, 2 capacitors, 1 connector, 1 diode and 1 resistor.

It belongs with the robotics & motion, sensors and iot & wireless designs in this gallery.

From the project

A basic Arduino-based bluetooth-controlled dispenser for Smarties™

KiCad project of the board for the Hall effect sensors to control the positioning of the rotating platter.

Copyright © 2020-2021 DB375237 (Dario B.)

The hardware part of the Smarties™ Dispenser project is licensed under the CERN Open Hardware Licence Version 2 - Strongly Reciprocal

2003-hall sensors board platter, from the project README
From the project README

Main components on the 2003-hall sensors board platter

SS49X

2003-hall sensors board platter bill of materials (BOM)

7 components, 5 distinct parts.

QtyPartRefs
2
SS49X
U1, U2
1
Conn_01x04_Male
J1
1
LED_ALT
D1
2
.1u
C1, C2
1
R
R1

2003-hall sensors board platter design files

The KiCad project lives in the DB375237/smarties repository on GitHub; these links point at the commit this page was built from.

2003-hall sensors board platter: common questions

How big is the 2003-hall sensors board platter?

The 2003-hall sensors board platter measures 72 × 20 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the 2003-hall sensors board platter?

7 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the 2003-hall sensors board platter design files?

From the DB375237/smarties repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the 2003-hall sensors board platter design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which DB375237 chose for the repository.
