Bartender pump array

dburnsii·bartender·hardware/kicad/bartender_pump_array/bartender_pump_array.kicad_pcb

Bartender pump array PCB layout, top view — open source board by dburnsii
Simulate this board

About the Bartender pump array PCB

Bartender pump array is an open source PCB design by dburnsii, published on GitHub under the GPL-2.0 license. It is a 2-layer board measuring 31.5 × 51.9 mm, with 55 components from 17 distinct parts.

Other key parts include the PCAL6416AHF,128. By type, the board carries 21 resistors, 13 connectors, 10 transistors, 10 diodes and 1 IC.

It belongs with the robotics & motion designs in this gallery.

From the project

The intelligent, robotic, drink making machine of the future!

Here you'll find all the hardware you'll need to assemble your own The Bartender. There are quite a few parts you'll need, and most of them can be purchased for very cheap from eBay, however you'll likely end up with more parts than you'll need for most things. As this project gains popularity, kits may become available to make getting started a lot easier.

The list of cuts you'll need to make to the single 4'x8' sheet of plywood are available in .csv format. My current favorite tool for this purpose is CutListOptimizer. It isn't a FOSS tool, but you should only need to use it once or twice…

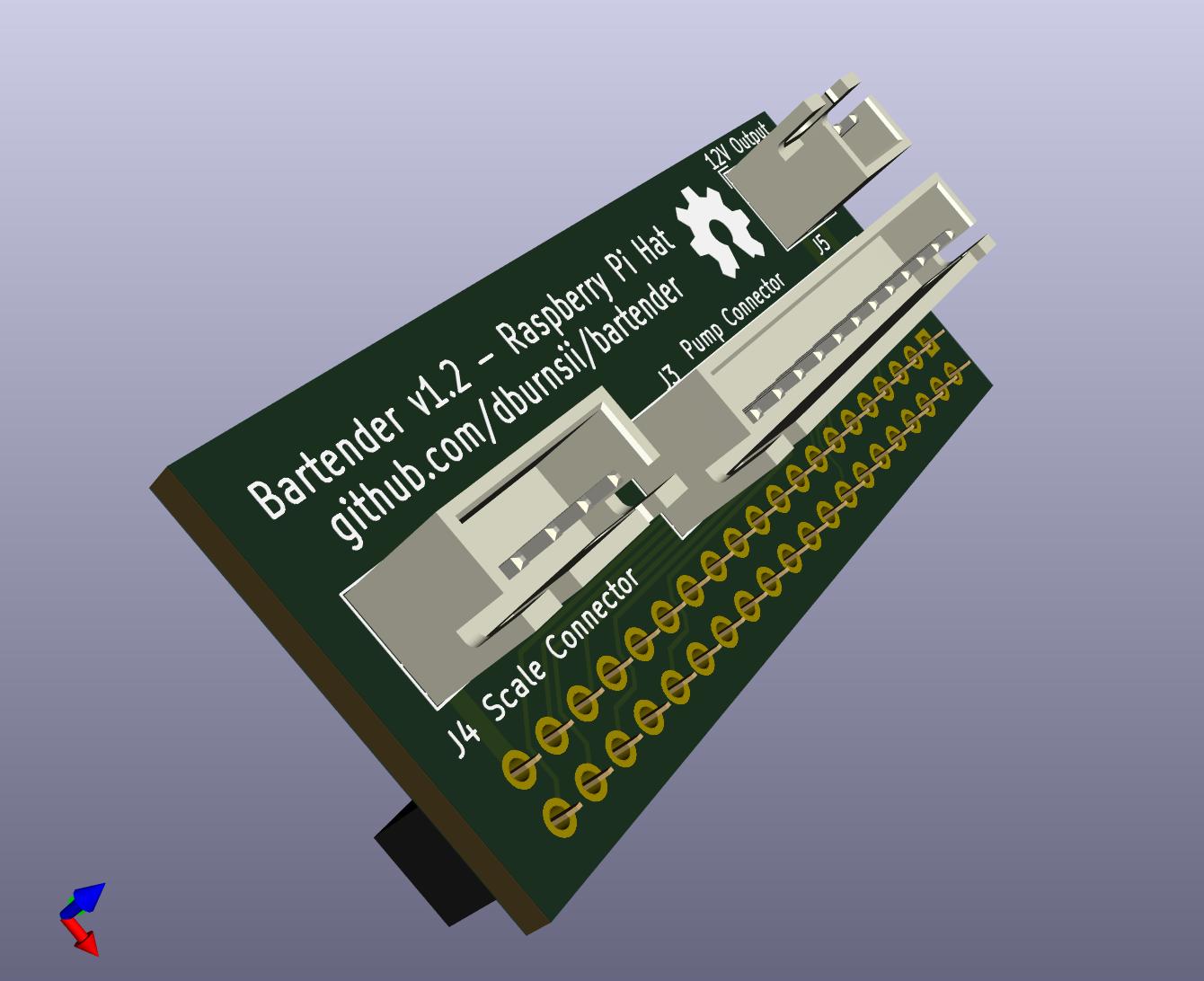

Bartender pump array, from the project README
From the project README

Main components on the Bartender pump array

PCAL6416AHF,128

Bartender pump array bill of materials (BOM)

55 components, 17 distinct parts.

QtyPartRefs
1
PCAL6416AHF,128
U1
10
AO3400A
Q1, Q2, Q3, Q4, Q5, Q6, Q7, Q8 +2
1
10
J1
1
9
J2
1
8
J3
1
7
J4
1
6
J5
1
5
J6
1
4
J7
1
3
J8
1
2
J9
1
1
J10
2
Conn_01x04_Female
J11, J12
1
12V
J13
10
1N4148W
D1, D2, D3, D4, D5, D6, D7, D8 +2
11
1KR
R1, R2, R3, R4, R5, R6, R7, R8 +3
10
R_Small_US
R11, R12, R13, R14, R15, R16, R17, R18 +2

Bartender pump array design files

The KiCad project lives in the dburnsii/bartender repository on GitHub; these links point at the commit this page was built from.

Bartender pump array: common questions

How big is the Bartender pump array PCB?

The Bartender pump array measures 31.5 × 51.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Bartender pump array?

55 components, from 17 distinct parts. The full bill of materials is listed on this page.

Where can I download the Bartender pump array design files?

From the dburnsii/bartender repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Bartender pump array design in my own project?

Yes, under the terms of its GPL-2.0 license, which dburnsii chose for the repository.
