PCB Khess Module Payment layout, top view — open source Raspberry Pi board by DBXYD

About the PCB Khess Module Payment

PCB Khess Module Payment is an open source Raspberry Pi PCB design by DBXYD, published on GitHub under the MIT license. It is a 4-layer board measuring 65 × 30 mm, with 22 components from 11 distinct parts.

Its main chip is the RASPBERRY_PI_ZERO_2_W, from the Raspberry Pi family. By type, the board carries 12 resistors, 3 connectors, 3 diodes, 3 capacitors and 1 IC.

It belongs with the iot & wireless designs in this gallery.

From the project

Voici une représentation Mermaid du schéma :

Voici une représentation Mermaid du schéma :

Convertisseur 12V à 5V DC 1 Convertisseur R-78B5.0-2.0 (datasheet) 1 Condensateur 10uF 1 Condensateur 4,7uF * 1 Bobine 10uH

Conventisseur 230V à 12V DC 1 Porte-fusible 1 Convertisseur PSK-15E-12 (datasheet) 1 Condensateur 100uF 1 Condensateur 1uF 1 Diode TVS (824 500 500) (datasheet) 1 Résistance bobinée 6,8 Ohm (remplacée par un fil) (datasheet) 1 Varistance TVS 10D561K (non mise) (datasheet)

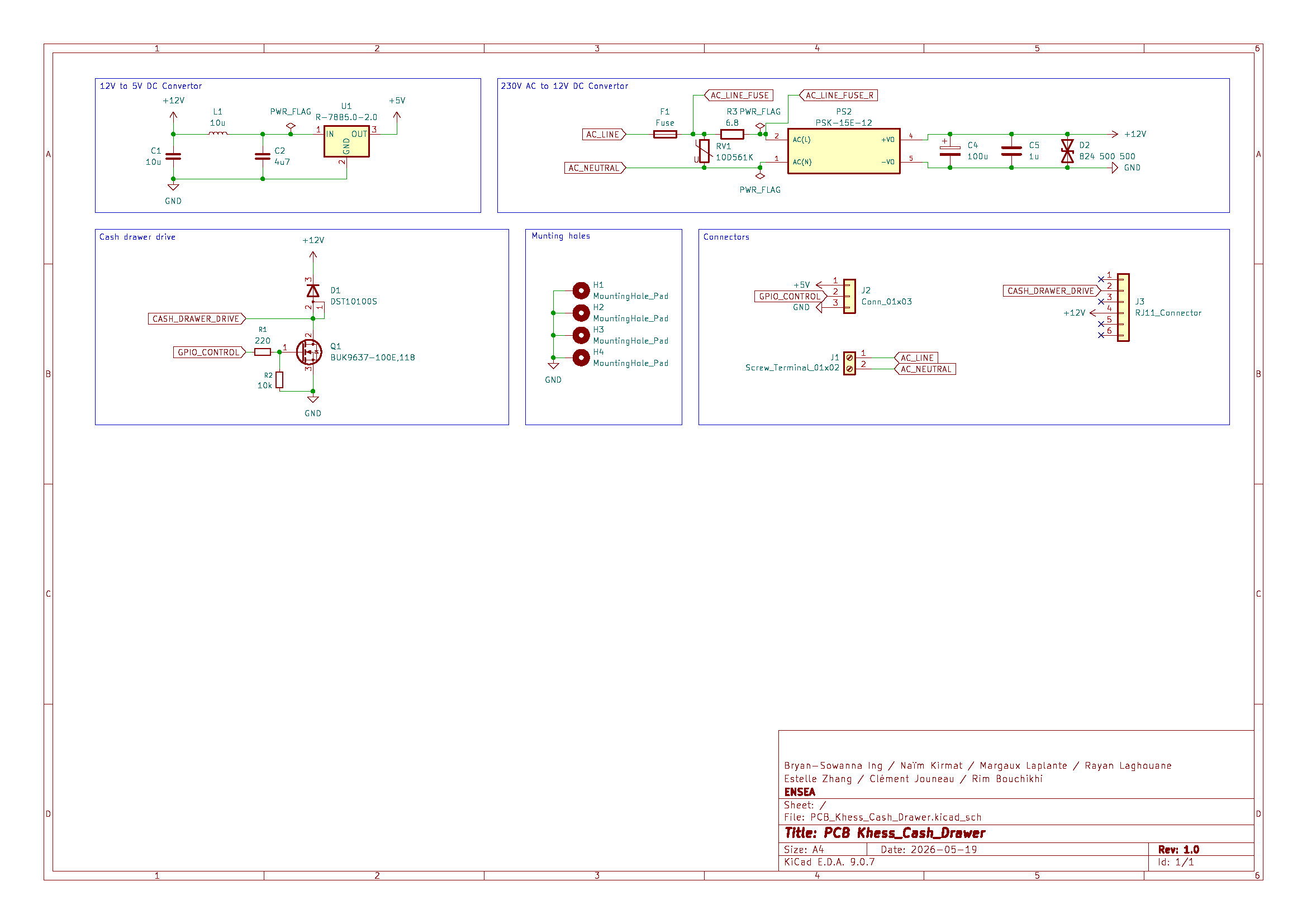

PCB Khess Module Payment, from the project README
From the project README

Main components on the PCB Khess Module Payment

RASPBERRY_PI_ZERO_2_W

PCB Khess Module Payment bill of materials (BOM)

22 components, 11 distinct parts.

QtyPartRefs
1
RASPBERRY_PI_ZERO_2_W
U1
2
Conn_01x08
J3, J6
1
Conn_01x04
J4
1
824 500 500
D1
2
LED
D2, D3
1
100n
C5
2
1u
C6, C7
4
330
R1, R4, R5, R6
2
470
R2, R3
2
4.7k
R10, R11
4
10k
R14, R15, R19, R20

PCB Khess Module Payment design files

The KiCad project lives in the DBXYD/2526_Projet1AB_Khess repository on GitHub; these links point at the commit this page was built from.

PCB Khess Module Payment: common questions

What microcontroller does the PCB Khess Module Payment use?

The PCB Khess Module Payment is built around the RASPBERRY_PI_ZERO_2_W, from the Raspberry Pi family.

How big is the PCB Khess Module Payment?

The PCB Khess Module Payment measures 65 × 30 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the PCB Khess Module Payment?

22 components, from 11 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB Khess Module Payment design files?

From the DBXYD/2526_Projet1AB_Khess repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCB Khess Module Payment design in my own project?

Yes, under the terms of its MIT license, which DBXYD chose for the repository.
