DisPhaze Components PCB layout, top view — open source STM32 board by dchwebb

About the DisPhaze Components PCB

DisPhaze Components is an open source STM32 PCB design by dchwebb, published on GitHub under the Apache-2.0 license. It is a 2-layer board measuring 60 × 110 mm, with 89 components from 49 distinct parts.

Its main chip is the STM32F405RGTx, from the STM32 family. Other key parts include the TL072, MCP6004, LM1117-3.3 and LM4040DBZ-5. By type, the board carries 28 resistors, 24 capacitors, 9 connectors, 5 ICs, 5 test points and 4 switches.

It belongs with the audio designs in this gallery.

From the project

Eurorack Phase Distortion Oscillator module

Eurorack module providing two Phase Distortion oscillators based on Casio's CZ synthesizors.

Phase distortion involves warping a sine wave using a second phase distortion signal. The phase distortion tables in this module were loosely based on waveforms sampled from a Casio CZ-1000. Both oscillators allow the sine wave to be warped by a greater amount than on the original and in the case of oscillator 1 the phase distortion tables can be continuously varied.

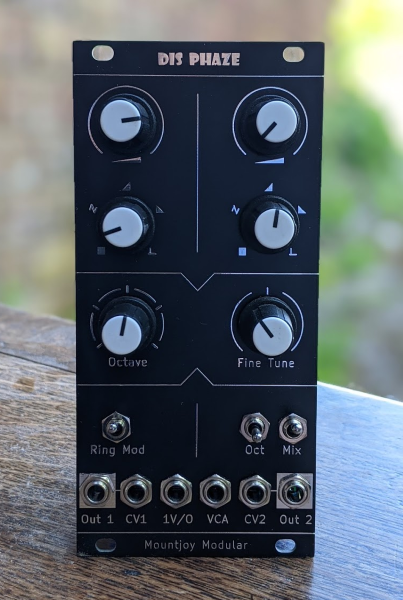

DisPhaze Components, from the project README
From the project README

Main components on the DisPhaze Components

STM32F405RGTxTL072MCP6004LM1117-3.3LM4040DBZ-5

DisPhaze Components bill of materials (BOM)

89 components, 49 distinct parts.

QtyPartRefs
1
STM32F405RGTx
U1
1
TL072
U2
1
MCP6004
U3
1
LM1117-3.3
U4
1
LM4040DBZ-5
U7
2
C20526
MMBT3904
Q1, Q2
1
12MHz_18pF
Y1
1
SWD_Header
J1
1
USB_B_Micro
J2
1
PItch_In
J3
1
PD1_Amt_In
J4
1
PD2_Amt_In
J5
1
VCA_In
J6
1
DAC1_Out
J7
1
DAC2_Out
J8
1
Eurorack_16_pin_power
J9
6
B10k
CTune1, FTune1, PD1Amt1, PD1Type1, PD2Amt1, PD2Type1
1
SW_Push
RESET1
1
Octave_Switch
SW1
1
DAC1_RingMod_Switch
SW2
Show 29 more
QtyPartRefs
1
DAC2_Mix_Switch
SW3
1
SW_Push
SW4
5
TestPoint
TP1, TP2, TP3, TP4, TP5
1
LED_Dual_AKA
D1
2
1N5819
D2, D3
1
L
L1
1
4.7uF
C1
6
100nF
C2, C3, C4, C5, C7, C23
1
1uF
C6
2
2.2uF
C8, C9
2
30pF
C10, C11
2
2.2nF
C12, C14
2
1.5nF
C13, C15
2
22pF
C16, C18
2
10uF
C17, C19
1
10uF
C20
2
22uF
C21, C24
1
47uF
C22
1
C25803
100k
R1
4
1k
R2, R3, R19, R23
1
91k
R4
1
56k
R5
4
100k
R6, R9, R12, R16
1
82k
R7
6
47k
R8, R11, R14, R15, R20, R24
4
68k
R10, R13, R17, R21
2
6.8k
R18, R22
3
C23162
4k7
R25, R26, R27
1
2.2k
R28

DisPhaze Components design files

The KiCad project lives in the dchwebb/DisPhaze repository on GitHub; these links point at the commit this page was built from.

DisPhaze Components: common questions

What microcontroller does the DisPhaze Components use?

The DisPhaze Components is built around the STM32F405RGTx, from the STM32 family.

How big is the DisPhaze Components PCB?

The DisPhaze Components measures 60 × 110 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the DisPhaze Components?

89 components, from 49 distinct parts. The full bill of materials is listed on this page.

Where can I download the DisPhaze Components design files?

From the dchwebb/DisPhaze repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the DisPhaze Components design in my own project?

Yes, under the terms of its Apache-2.0 license, which dchwebb chose for the repository.

Can I test firmware for the DisPhaze Components without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
