Cs240lx-22spr PCB layout, top view — open source Raspberry Pi board by dddrrreee

About the Cs240lx-22spr PCB

Cs240lx-22spr is an open source Raspberry Pi PCB design by dddrrreee, published on GitHub under the MIT license. It is a 2-layer board measuring 67.3 × 45.7 mm, with 6 components from 4 distinct parts.

Its main chip is the Raspberry_Pi_2_3, from the Raspberry Pi family. Other key parts include the NRF24L01_Breakout. By type, the board carries 2 ICs, 2 connectors and 2 capacitors.

From the project

cs240lx class repo. except in very rare cases, cs140e is a hard requirement.

This lab is focused on designing printed circuit boards (PCBs), which you may find useful in your final project. This is moreso a quick lesson on how to replace your bundles of wires with a more reliable board, rather than how to actually design electrical circuits on a board which is a much more involved discussion.

Our goal is to create a board that can plug into the Raspberry Pi GPIO header and connect to the USB/UART converter and 2 NRFs. You can also optionally add other devices to the board of your choosing. My board looks something like this:

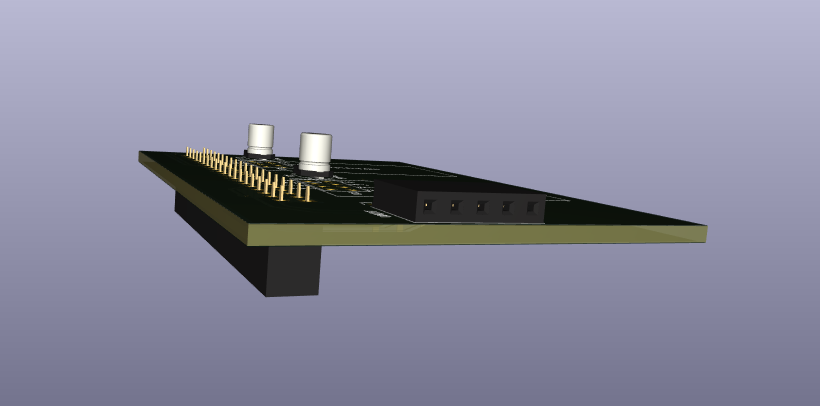

Cs240lx-22spr, from the project README
From the project README

Main components on the Cs240lx-22spr

NRF24L01_Breakout

Cs240lx-22spr bill of materials (BOM)

6 components, 4 distinct parts — part numbers from the project's BOM.

QtyPartRefs
2
NRF24L01_Breakout
U1, U2
1
UART
J1
1
Raspberry_Pi_2_3
J2
2
10 uF
C1, C2

Cs240lx-22spr design files

The KiCad project lives in the dddrrreee/cs240lx-22spr repository on GitHub; these links point at the commit this page was built from.

Cs240lx-22spr: common questions

What microcontroller does the Cs240lx-22spr use?

The Cs240lx-22spr is built around the Raspberry_Pi_2_3, from the Raspberry Pi family.

How big is the Cs240lx-22spr PCB?

The Cs240lx-22spr measures 67.3 × 45.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Cs240lx-22spr?

6 components, from 4 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Cs240lx-22spr design files?

From the dddrrreee/cs240lx-22spr repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Cs240lx-22spr design in my own project?

Yes, under the terms of its MIT license, which dddrrreee chose for the repository.

Can I test firmware for the Cs240lx-22spr without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug Raspberry Pi firmware against it before you order a PCB.
