Cmio

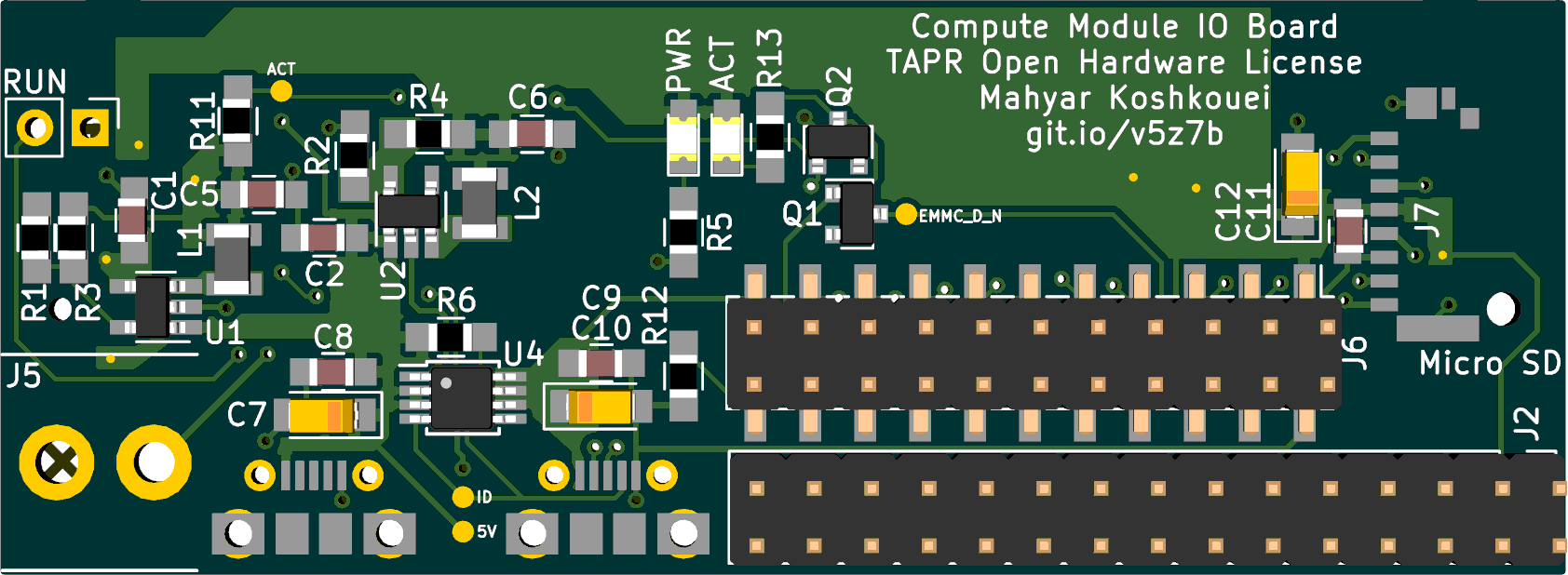

Cmio is an open source Raspberry Pi PCB design by deltabeard: a 2-layer, 72.4 × 26.6 mm board with 43 components (29 distinct parts). It is built around the AP3417BK-ADJTRG1, SP6203EM5-L-2-8, AP2401MP-13.
Custom Raspberry Pi Compute Module (1/3) IO Board
Note that this circuit is currently untested, as such I cannot guarantee that it will function correctly.
This is a custom Raspberry Pi Compute Module IO Board. Designed for low cost production, and a minimal set of components.
Because low cost production was the main focus of the project, this Compute Module IO board only has a subset of features in comparison to the official version. However, whilst the official version costs £115, this design aims to produce a Compute Module IO board that can be manufactured (PCB fabrication, BOM, et al) under £30.
Built around
Parts list
43 components, 29 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | AP3417BK-ADJTRG1 AP3417B DiodesZetex | SOT-23-5_HandSoldering | U1, U2 |
| 1 | SP6203EM5-L-2-8 AP2138 EXAR | SOT-23 | U3 |
| 1 | AP2401MP-13 AP2401 DiodesZetex | MSOP-8_3x3mm_Pitch0.65mm | U4 |
| 2 | 2N7002 | SOT-23 | Q1, Q2 |
| 1 | USB_POWER | Molex_Right_Angle_SMT_TypeB_MicroUSB_105017_CircularOnly_annular_fix | J1 |
| 1 | BANK0 | Pin_Header_Straight_2x15_Pitch2.54mm | J2 |
| 1 | BANK0 USB_OTG Generic | Molex_Right_Angle_SMT_TypeB_MicroUSB_105017_CircularOnly_annular_fix | J3 |
| 1 | 105017-0001 Raspberry Pi Compute Module 1/3/3L Molex | CM3_Socket_SODIMM_DDR1-2_TE_1473149_4_NoHole_NoEndSilkS | J4 |
| 1 | 1473149-4 TVOUT TE Connectivity | RCA_PHONO | J5 |
| 1 | BANK1 Generic | Pin_Header_Straight_2x11_Pitch2.54mm_SMD | J6 |
| 1 | 95278-101-16LF Micro_SD_Card_Molex_47309-2651 Generic | Molex_Micro_SD_47309-2651 | J7 |
| 1 | 104554/TFP09-2-12B RUN Centenary Materials | Pin_Header_Straight_1x02_Pitch2.54mm | J8 |
| 1 | PWR LED | LED_0805 | D1 |
| 1 | STATUS LED | LED_0805 | D2 |
| 2 | LQM2HPN2R2MG0L 2.2uH Generic | Neosid_Inductor_SM-NE29_SMD1008 | L1, L2 |
| 3 | 0805ZD475KAT2A 4.7uF Generic | C_0805_HandSoldering | C1, C2, C6 |
| 2 | 0805ZD475KAT2A 1uF Generic | C_0805_HandSoldering | C3, C4 |
| 1 | C0805C103K5RACTU 4.7uF Generic | C_0805_HandSoldering | C5 |
| 1 | 0805ZD475KAT2A 47uF Generic | CP_Tantalum_Case-A_EIA-3216-18_Reflow | C7 |
| 2 | C0805C104K5RACTU 0.1uF Generic | C_0805_HandSoldering | C8, C9 |
Show 9 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | TAJA476K006R 47uF AVX | CP_Tantalum_Case-A_EIA-3216-18_Reflow | C10, C12 |
| 1 | C0805C104K5RACTU 0.1uF Generic | C_0805 | C11 |
| 5 | CRG0805F100K 100k Generic | R_0805_HandSoldering | R1, R2, R7, R8, R9 |
| 1 | CRCW0805200KJNEA 200k Generic | R_0805_HandSoldering | R3 |
| 1 | ERA6AEB4533V 450k Generic | R_0805_HandSoldering | R4 |
| 1 | CRCW080510K0JNEA 470R Generic | R_0805_HandSoldering | R5 |
| 1 | CRG0805F100K 10k Generic | R_0805_HandSoldering | R6 |
| 3 | 100k | R_0805_HandSoldering | R10, R11, R12 |
| 1 | 470R | R_0805_HandSoldering | R13 |
