PCB-reflow solder table

DerSpatz·PCB-reflow-solder-table·HeatTable-Base-v0.9/HeatTable-Base-v0.9.kicad_pcb

PCB-reflow solder table layout, top view — open source STM32 board by DerSpatz
Simulate this board

About the PCB-reflow solder table

PCB-reflow solder table is an open source STM32 PCB design by DerSpatz, published on GitHub under the MIT license. It is a 2-layer board measuring 100 × 100 mm, with 77 components from 37 distinct parts.

Its main chip is the STM32G030Fx, from the STM32 family. Other key parts include the IP2721, 78M33, INA180A2, IRS44273L and ITR8307-S17-TR8. By type, the board carries 26 capacitors, 22 resistors, 7 ICs, 5 diodes, 4 switches and 3 connectors.

From the project

Table version of the PCB heat plate with advanced features and swappable heat plate

This design is not yet tested and was not built yet. Currently there's no firmware yet. I am not able to write the code, so feel free to contribute.

Schematic is pretty well documented, you can find most info you'll need there.

Todo: - write firmware - check actual mechanical device - write better readme ;-)

Send me a message if you need gerbers for the actual heat plate.

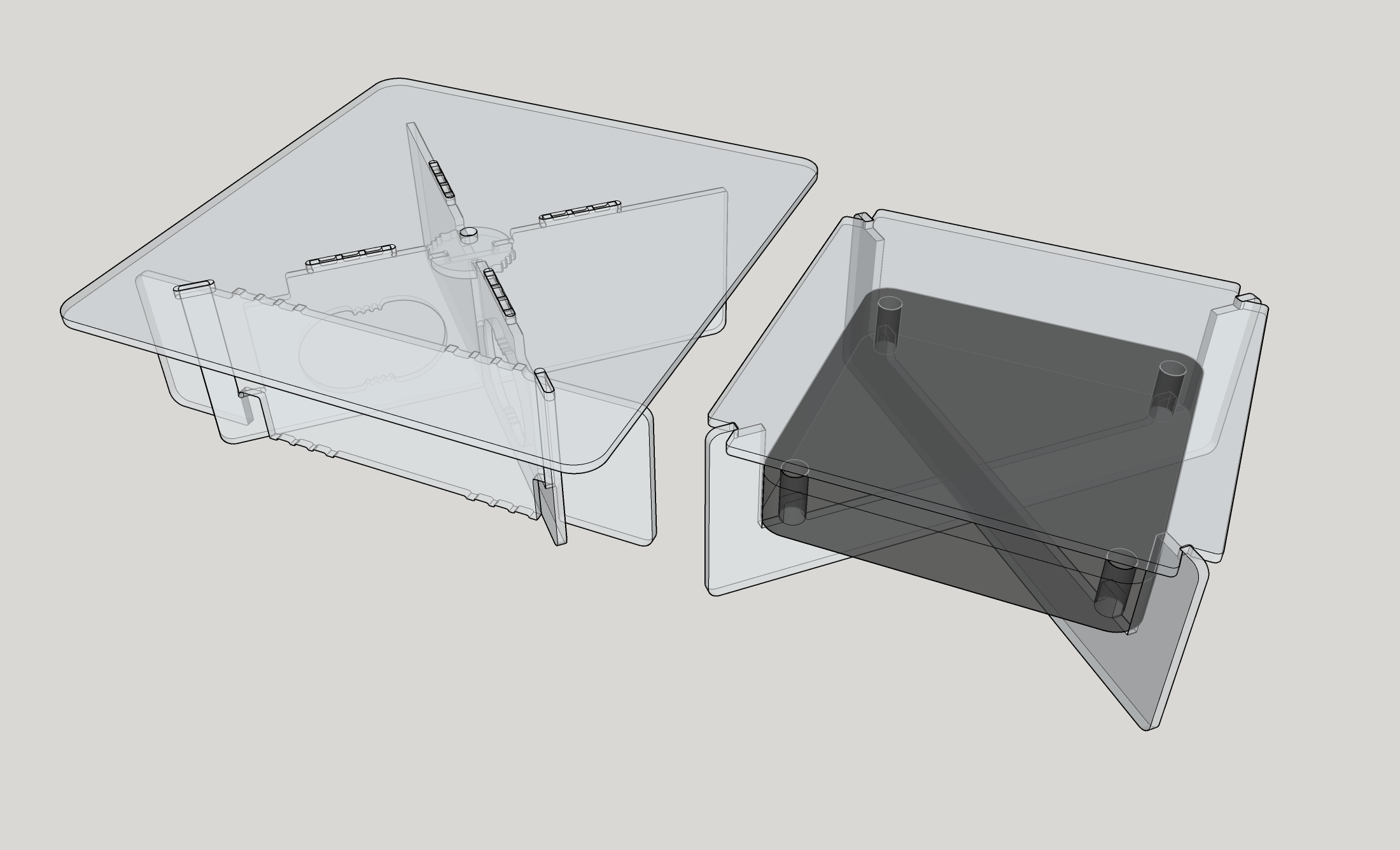

PCB-reflow solder table, from the project README
From the project README

Main components on the PCB-reflow solder table

IP272178M33INA180A2IRS44273LSTM32G030FxITR8307-S17-TR8

PCB-reflow solder table bill of materials (BOM)

77 components, 37 distinct parts.

QtyPartRefs
1
IP2721
U1
1
78M33
U2
2
INA180A2
U3, U4
1
IRS44273L
U5
1
STM32G030Fx
U6
1
ITR8307-S17-TR8
U7
1
WSP4409A
Q1
1
IRLR8726
Q2
1
DC-005-5A-2.5
J1
1
2x10xP1.27mm
J2
1
1.25mm SMD
J5
1
MLT-9650
BZ1
1
5A
F1
2
200mA
F2, F3
3
6mm
SW1, SW2, SW3
1
5.1mm
SW4
1
LMT85
TEMP1
1
TYPE-C-31-M-17
USB1
1
RED/GREEN
LED1
1
SSD1306
OLED1
Show 17 more
QtyPartRefs
2
18V
D1, D2
2
B5819W
D3, D4
1
SS34
D5
6
220u/35V
C1, C2, C3, C4, C5, C6
2
470p
C7, C8
9
100n
C9, C10, C11, C12, C13, C14, C15, C16 +1
8
4u7
C18, C19, C20, C21, C22, C23, C24, C25
1
22u
C26
2
6m
R1, R2
3
150
R3, R4, R21
4
680
R5, R6, R7, R8
1
2k
R9
4
3k
R10, R11, R12, R22
2
5k1
R13, R14
3
10k
R15, R16, R17
1
21k
R18
2
100k
R19, R20

PCB-reflow solder table design files

The KiCad project lives in the DerSpatz/PCB-reflow-solder-table repository on GitHub; these links point at the commit this page was built from.

PCB-reflow solder table: common questions

What microcontroller does the PCB-reflow solder table use?

The PCB-reflow solder table is built around the STM32G030Fx, from the STM32 family.

How big is the PCB-reflow solder table?

The PCB-reflow solder table measures 100 × 100 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the PCB-reflow solder table?

77 components, from 37 distinct parts. The full bill of materials is listed on this page.

Where can I download the PCB-reflow solder table design files?

From the DerSpatz/PCB-reflow-solder-table repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the PCB-reflow solder table design in my own project?

Yes, under the terms of its MIT license, which DerSpatz chose for the repository.
