Fixed cat

Developer-Vini·fixed_cat-pcb·hardware/kicad/gato-pcb.kicad_pcb

Fixed cat PCB layout, top view — open source board by Developer-Vini
Simulate this board

About the Fixed cat PCB

Fixed cat is an open source PCB design by Developer-Vini, published on GitHub. It is a 2-layer board measuring 63.9 × 62.6 mm, with 10 components from 7 distinct parts.

By type, the board carries 3 resistors, 2 switches, 2 diodes, 1 module, 1 battery holder and 1 capacitor.

It belongs with the power & battery designs in this gallery.

From the project

I created this because I didn't have the patience to configure Git.

A printed circuit board (PCB) project developed in KiCad.

A cat-themed PCB designed for the Hack Club Solder workshop. The board features LEDs, resistors, push buttons, a battery holder, a potentiometer, a capacitor, and a motor/pinheader connector — a hands-on beginner-friendly circuit for learning PCB design and soldering.

- 2x LED — Visual indicators - 2x Push Switch — User input / interaction - 2x Resistor — Current limiting - 1x Potentiometer — Adjustable resistance / brightness control - 1x Capacitor (10uF) — Filtering / energy storage - 1x Motor/PinHeader — Motor driver interface -…

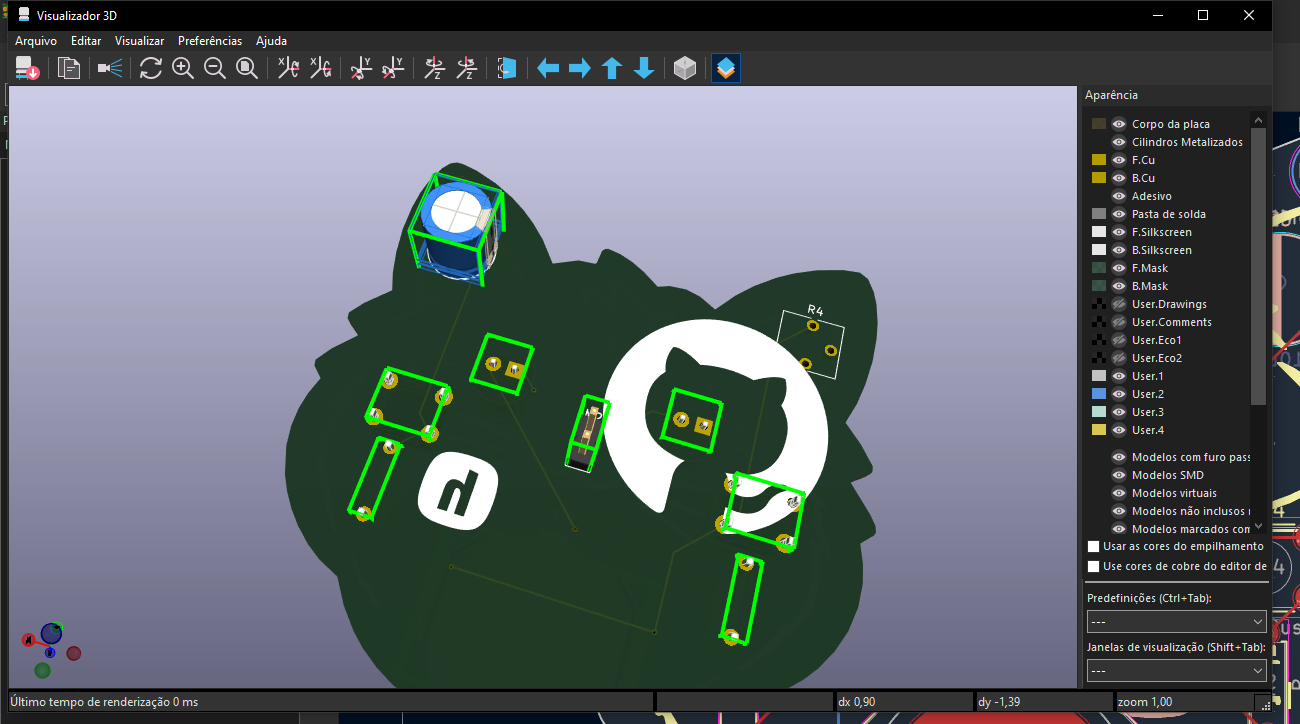

Fixed cat, from the project README
From the project README

Fixed cat bill of materials (BOM)

10 components, 7 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Motor_DC
M2
1
Battery_Cell
BT2
2
SW_Push
SW3, SW4
2
LED
D3, D4
1
10UF
10uF
C2
1
Potentiometer
R4
2
R
R5, R6

Fixed cat design files

The KiCad project lives in the Developer-Vini/fixed_cat-pcb repository on GitHub; these links point at the commit this page was built from.

Fixed cat: common questions

How big is the Fixed cat PCB?

The Fixed cat measures 63.9 × 62.6 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Fixed cat?

10 components, from 7 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Fixed cat design files?

From the Developer-Vini/fixed_cat-pcb repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Fixed cat design in my own project?

The repository has no license, so all rights stay with Developer-Vini. Use it as a reference, and ask the author before reusing the design.
