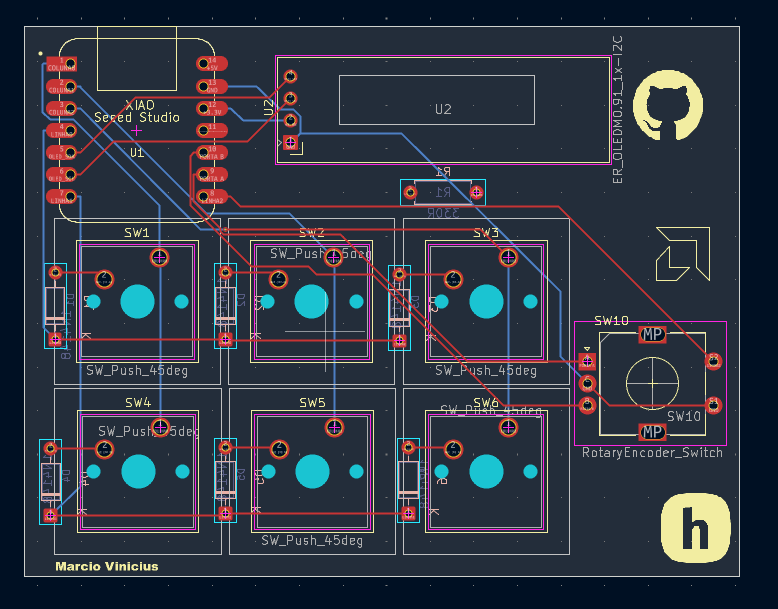

MarcinhoPad PCB layout, top view — open source board by Developer-Vini

About the MarcinhoPad PCB

MarcinhoPad is an open source PCB design by Developer-Vini, published on GitHub under the MIT license. It is a 2-layer board measuring 82 × 63 mm, with 16 components from 6 distinct parts.

Other key parts include the MOUDLE-SEEEDUINO-XIAO and ER_OLEDM0.91_1X-I2C. By type, the board carries 7 switches, 6 diodes, 2 ICs and 1 resistor.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

MarcinhoPad is a simple, custom-built macro keyboard designed using KiCad. Built with mechanical switches and integrated, it serves as a compact shortcut pad to streamline your daily workflow and macro controls.

Custom macropad designed for the Hack Club Hackpad program.

MarcinhoPad is a compact macro keyboard built around a Seeed XIAO RP2040. It features 6 mechanical switches, a rotary encoder for volume control, and an OLED display for visual feedback.

- MCU: Seeed XIAO RP2040 (through-hole) - PCB: 2-layer, under 100mm x 100mm - Case: 3D-printed only, fits within 200x200x100mm - Inputs: 6 switches + 1 encoder (7 total, under 16 limit) - Firmware: KMK (CircuitPython)

MarcinhoPad, from the project README
From the project README

Main components on the MarcinhoPad

MOUDLE-SEEEDUINO-XIAOER_OLEDM0.91_1X-I2C

MarcinhoPad bill of materials (BOM)

16 components, 6 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
MOUDLE-SEEEDUINO-XIAO
U1
1
ER_OLEDM0.91_1X-I2C
ER_OLEDM0.91_1x-I2C
U2
6
SW_PUSH_45DEG
SW_Push_45deg
SW1, SW2, SW3, SW4, SW5, SW6
1
RotaryEncoder_Switch
SW10
6
1N4148
D1, D2, D3, D4, D5, D6
1
330R
R1

MarcinhoPad design files

The KiCad project lives in the Developer-Vini/MarcinhoPad repository on GitHub; these links point at the commit this page was built from.

MarcinhoPad: common questions

How big is the MarcinhoPad PCB?

The MarcinhoPad measures 82 × 63 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the MarcinhoPad?

16 components, from 6 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the MarcinhoPad design files?

From the Developer-Vini/MarcinhoPad repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the MarcinhoPad design in my own project?

Yes, under the terms of its MIT license, which Developer-Vini chose for the repository.
