TeslaSMPS is an open source PCB design by devfabiosilva, published on GitHub under the Unlicense license. It is a 2-layer board measuring 110.5 × 90.8 mm, with 94 components from 61 distinct parts.
Other key parts include the LTV-817. By type, the board carries 37 resistors, 22 diodes, 19 capacitors, 3 connectors, 3 transformers and 2 ICs.
It belongs with the power & battery, robotics & motion and iot & wireless designs in this gallery.
From the project
DIY: High Voltage Range Switching Mode Power Supply for Embedded and Solar systems
DIY: High Voltage Range Switching Mode Power Supply for Embedded / Solar and industrial systems

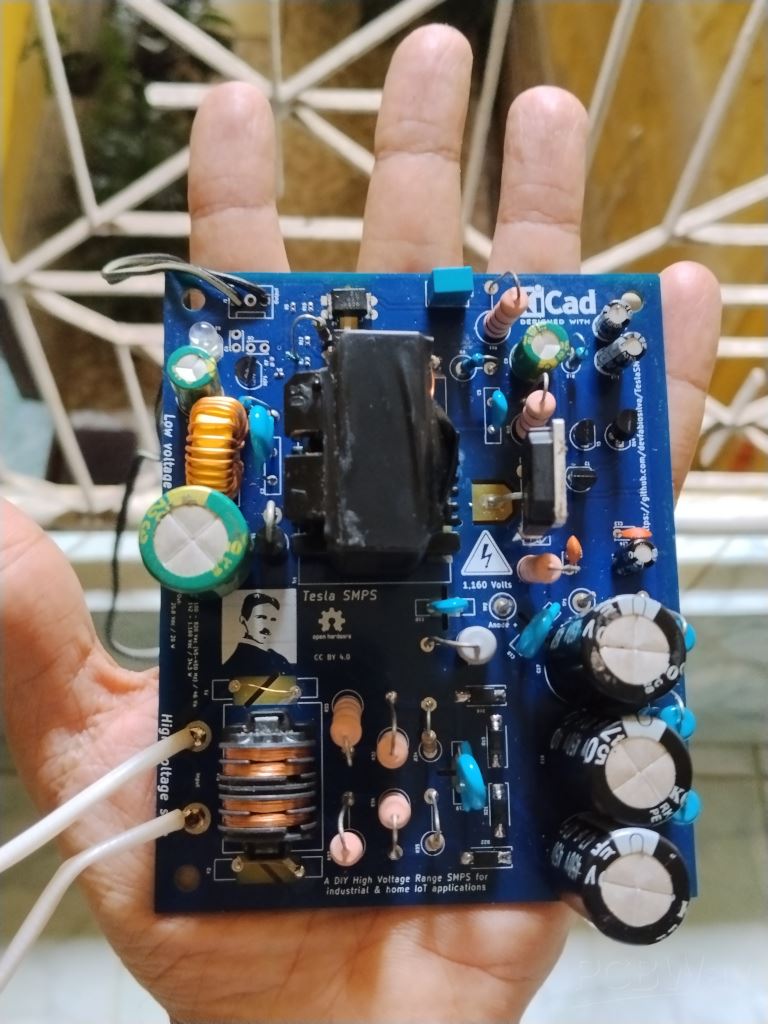

This is a DIY WVR-SMPS (Wide Voltage Range Switching Mode Power Supply) or simply Tesla SMPS is a wide range and high voltage input for low power embedded systems. This device allows input voltage as low as 100 VAC and as high as 820 VAC in wide frequency range (45 − 450 Hz) or even in DC voltage as low as 142 VDC and as high as 1,160 VDC using only 3 transistors
Main components on the TeslaSMPS
TeslaSMPS bill of materials (BOM)
94 components, 61 distinct parts.
