RP2040 Dev Board

DhruvaG2000·RP2040_Dev_Board·picoDevR0/picoDevR02.kicad_pcb

RP2040 Dev Board layout, top view — open source RP2040/RP2350 board by DhruvaG2000

About the RP2040 Dev Board

RP2040 Dev Board is an open source RP2040/RP2350 PCB design by DhruvaG2000, published on GitHub under the MIT license. It is a 4-layer board measuring 78.8 × 45.4 mm, with 16 components from 12 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 2 connectors, 2 diodes, 1 switch and 1 resistor.

It belongs with the dev boards & breakouts and robotics & motion designs in this gallery, and the repository also holds 2 earlier revisions of it.

From the project

Kicad PCB design for a RP2040 Development Board Designed to make the RP2040 more beginner friendly

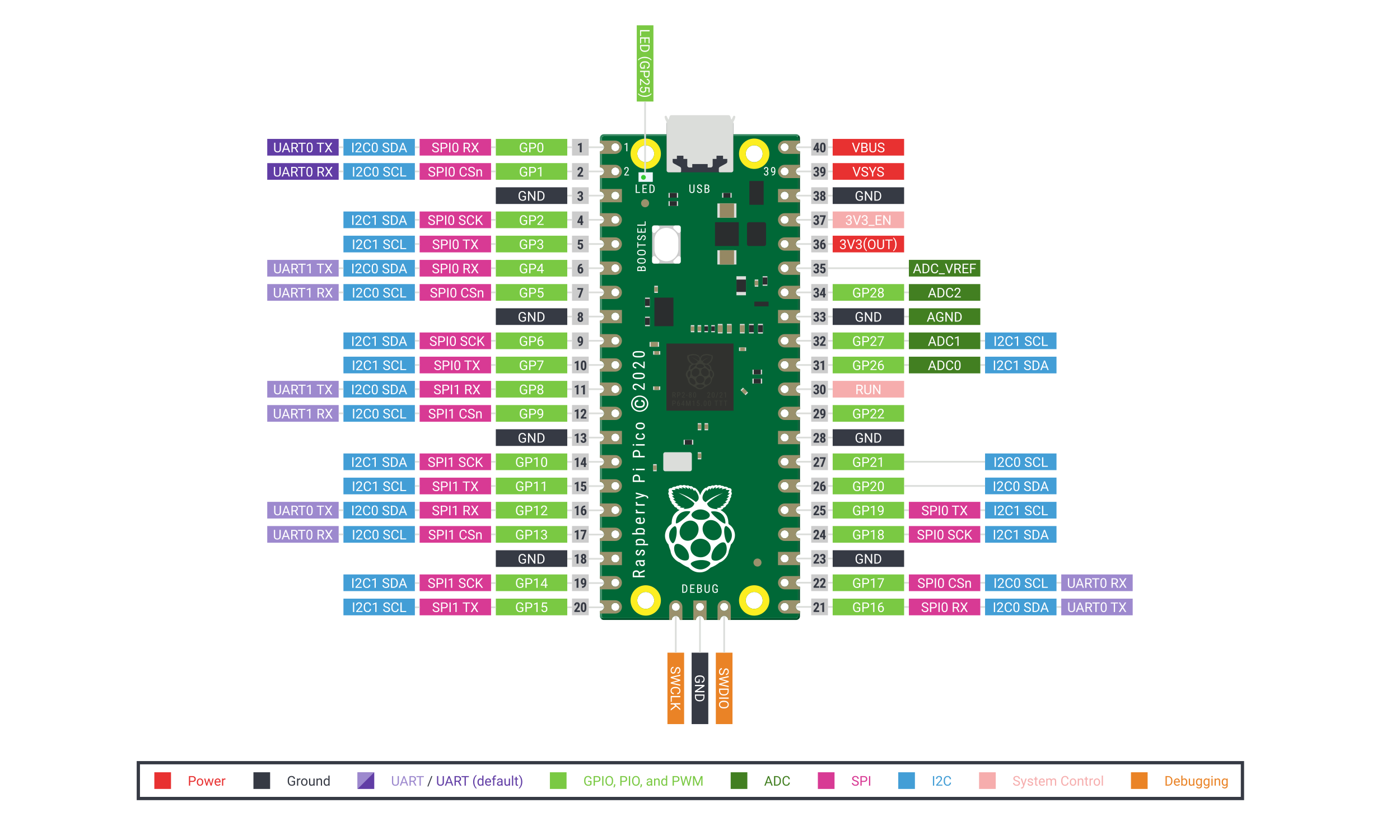

RP2040 Dev Board, from the project README
From the project README

RP2040 Dev Board bill of materials (BOM)

16 components, 12 distinct parts.

QtyPartRefs
1
Barrel_Jack
J1
1
Pico1to20
J2
2
Conn_01x04_Male
12Vout1, Main_GND1
4
C
C_ip1, C_ip2, C_op1, C_op2
1
LM1117-3.3
LM_3V3
1
LM1117-5.0
LM_5
1
Pico
RP2040Board1
1
SW_Push_Dual
SW1
1
Conn_01x20_Female
pico21to40
1
LED
D1
1
1N4148
D2
1
R
R1

RP2040 Dev Board design files

The KiCad project lives in the DhruvaG2000/RP2040_Dev_Board repository on GitHub; these links point at the commit this page was built from.

RP2040 Dev Board: common questions

What microcontroller does the RP2040 Dev Board use?

The RP2040 Dev Board is built around the Pico, from the RP2040/RP2350 family.

How big is the RP2040 Dev Board?

The RP2040 Dev Board measures 78.8 × 45.4 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the RP2040 Dev Board?

16 components, from 12 distinct parts. The full bill of materials is listed on this page.

Where can I download the RP2040 Dev Board design files?

From the DhruvaG2000/RP2040_Dev_Board repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RP2040 Dev Board design in my own project?

Yes, under the terms of its MIT license, which DhruvaG2000 chose for the repository.

Can I test firmware for the RP2040 Dev Board without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.

Earlier revisions in the repo: picoDevR01, picoDevR0
