About the Anorith PCB

Anorith is an open source RP2040/RP2350 PCB design by dialgorithm, published on GitHub. It is a 4-layer board measuring 65 × 30 mm, with 39 components from 15 distinct parts.

Its main chip is the RP2040, from the RP2040/RP2350 family. Other key parts include the AMS1117-3.3 and W25Q16JVSS. By type, the board carries 17 capacitors, 11 resistors, 5 diodes, 3 ICs, 2 connectors and 1 crystal.

From the project

- RP2040 dual-core microcontroller as the main processor - W25Q16JVSS 16 mbit qspi flash for program storage - reset and boot buttons for flashing and resetting - status LEDs for power and I/O indication

anorith is a small, self-contained RP2040 board built around a compact 4-layer stackup.

the board is centered on the rp2040, with a w25q16jvss QSPI flash chip providing onboard storage for firmware, and an ams1117-3.3 regulating the 3.3 V rail from USB. a 12 MHz crystal clocks the RP2040, and a pair of schottky diodes handle power-path switching between usb and the header supply. the usb-c…

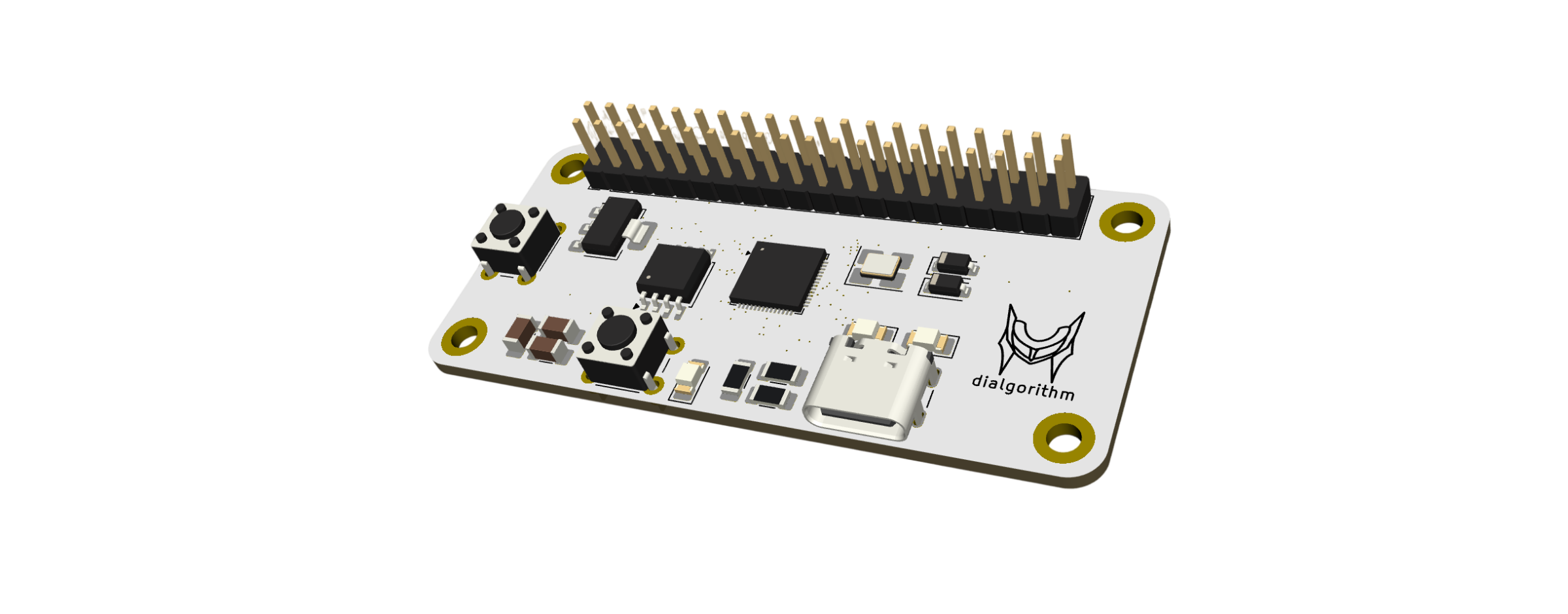

Anorith, from the project README — From the project README

Main components on the Anorith

RP2040 AMS1117-3.3 W25Q16JVSS

Anorith bill of materials (BOM)

39 components, 15 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	RP2040	QFN-56-1EP_7x7mm_P0.4mm_EP3.2x3.2mm	U1
1	AMS1117-3.3	SOT-223-3_TabPin2	U2
1	W25Q16JVSS	SOIC-8_5.3x5.3mm_P1.27mm	U3
1	12MHz	Crystal_SMD_3225-4Pin_3.2x2.5mm_HandSoldering	Y1
1	Conn_02x20_Counter_Clockwise	PinHeader_2x20_P2.54mm_Vertical	J1
1	USB_C_Receptacle_USB2.0_14P	USB_C_Receptacle_GCT_USB4105-xx-A_16P_TopMnt_Horizontal	J3
3	LED	LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder	D1, D2, D3
2	B5819W	D_SOD-123	D4, D5
13	10uF	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C1, C2, C3, C4, C5, C6, C7, C8 +5
2	27pF	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C11, C12
2	100uF	C_1206_3216Metric_Pad1.33x1.80mm_HandSolder	C14, C16
3	1k	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R1, R4, R8
2	27	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R2, R3
2	5.1k	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R5, R6
4	10k	R_1206_3216Metric_Pad1.30x1.75mm_HandSolder	R7, R9, R10, R11

Anorith design files

The KiCad project lives in the dialgorithm/anorith repository on GitHub; these links point at the commit this page was built from.

Anorith: common questions

What microcontroller does the Anorith use?

The Anorith is built around the RP2040, from the RP2040/RP2350 family.

How big is the Anorith PCB?

The Anorith measures 65 × 30 mm, has 4 copper layers and is 1.6 mm thick.

How many components are on the Anorith?

39 components, from 15 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Anorith design files?

From the dialgorithm/anorith repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the Anorith design in my own project?

The repository has no license, so all rights stay with dialgorithm. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Anorith without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
