Klyr f072
About the Klyr f072 PCB
Klyr f072 is an open source STM32 PCB design by dialgorithm, published on GitHub. It is a 2-layer board measuring 65 × 30 mm, with 31 components from 16 distinct parts.
Its main chip is the STM32F072CBTx, from the STM32 family. Other key parts include the TC1262-33. By type, the board carries 14 capacitors, 9 resistors, 2 ICs, 2 crystals, 2 connectors and 1 switch.
It belongs with the dev boards & breakouts designs in this gallery.
From the project

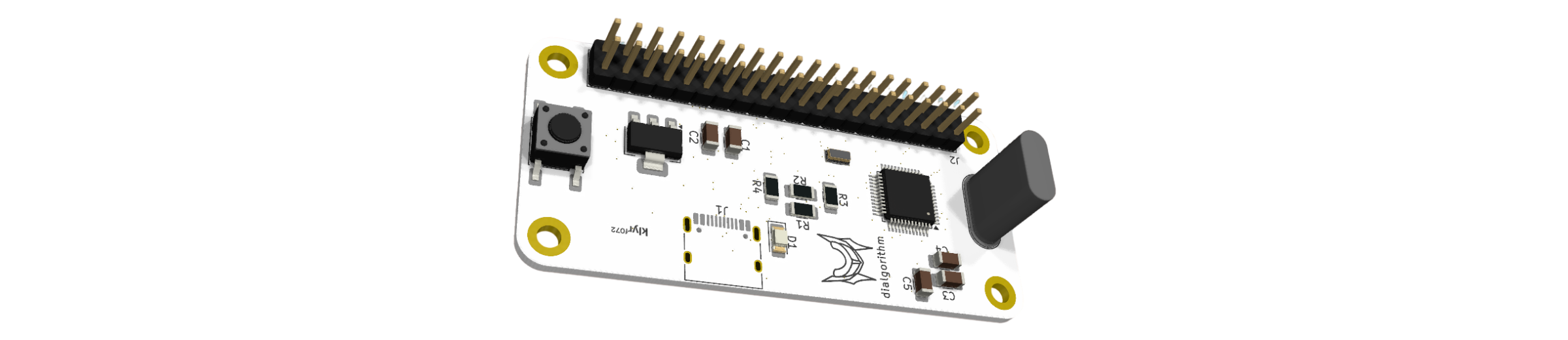

STM32F072CBT6 dev board
the complete bill of materials is available in bom.csv.
Main components on the Klyr f072
Klyr f072 bill of materials (BOM)
31 components, 16 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F072CBTx | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | TC1262-33 | SOT-223-3_TabPin2 | U2 |
| 1 | 8MHz | Crystal_HC49-U_Vertical | Y1 |
| 1 | 32.768k | Crystal_SMD_3215-2Pin_3.2x1.5mm | Y2 |
| 1 | USB_C_Receptacle_USB2.0_14P | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | Conn_02x20_Top_Bottom | PinHeader_2x20_P2.54mm_Vertical | J2 |
| 1 | SW_Push | SW_Push_1P1T_NO_E-Switch_TL3301NxxxxxG | SW1 |
| 1 | LED | LED_1206_3216Metric_Pad1.42x1.75mm_HandSolder | D1 |
| 4 | 100nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C1, C9, C10, C14 |
| 4 | 15pF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C2, C3, C4, C5 |
| 3 | 1uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C6, C7, C12 |
| 2 | 4.7uF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C8, C13 |
| 1 | 10nF | C_1206_3216Metric_Pad1.33x1.80mm_HandSolder | C11 |
| 6 | 0 | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R1, R4, R5, R7, R8, R9 |
| 2 | 5.1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R2, R3 |
| 1 | 1k | R_1206_3216Metric_Pad1.30x1.75mm_HandSolder | R6 |
Klyr f072 design files
The KiCad project lives in the dialgorithm/klyr-f072 repository on GitHub; these links point at the commit this page was built from.
- LayoutKiCad/klyr-f072.kicad_pcb
- SchematicKiCad/klyr-f072.kicad_sch
- BOMbom.csv
Klyr f072: common questions
What microcontroller does the Klyr f072 use?
The Klyr f072 is built around the STM32F072CBTx, from the STM32 family.
How big is the Klyr f072 PCB?
The Klyr f072 measures 65 × 30 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Klyr f072?
31 components, from 16 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Klyr f072 design files?
From the dialgorithm/klyr-f072 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Klyr f072 design in my own project?
The repository has no license, so all rights stay with dialgorithm. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the Klyr f072 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
