About the Indoor-Air-Quality-Project PCB
Indoor-Air-Quality-Project is an open source ESP32 PCB design by DienKiku, published on GitHub under the MIT license. It is a board, with 12 components from 8 distinct parts.
By type, the board carries 5 ICs, 4 resistors, 1 transistor, 1 buzzer and 1 capacitor.
It belongs with the sensors, iot & wireless and power & battery designs in this gallery.
From the project
Hệ thống giám sát chất lượng không khí trong phòng
An edge-computing Internet of Things (IoT) station designed for real-time indoor environmental quality monitoring and autonomous power management. Powered by an ultra-compact ESP32-C3 Super Mini (RISC-V) microcontroller, the device integrates multi-sensor environmental sensing (PM2.5, VOC, Temperature, Humidity, Pressure), on-device visual feedback (1.8" ST7735 TFT), local acoustic alerts, a rechargeable 2S Li-ion battery subsystem with real-time power telemetry (INA219), and cloud synchronization with Google Firebase.
Indoor-Air-Quality-Project bill of materials (BOM)
12 components, 8 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 5 | — | U1, U2, U3, U4, U5 | |
| 1 | 2SC1815 | TO-92_Inline | Q1 |
| 1 | Buzzer | Buzzer_12x9.5RM7.6 | BZ1 |
| 1 | 220uF | CP_Radial_D10.0mm_P3.50mm | C1 |
| 1 | 150 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R1 |
| 1 | 1k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R2 |
| 1 | 2k | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R3 |
| 1 | 240 | R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal | R4 |
Indoor-Air-Quality-Project design files
The KiCad project lives in the DienKiku/Indoor-Air-Quality-Project repository on GitHub; these links point at the commit this page was built from.

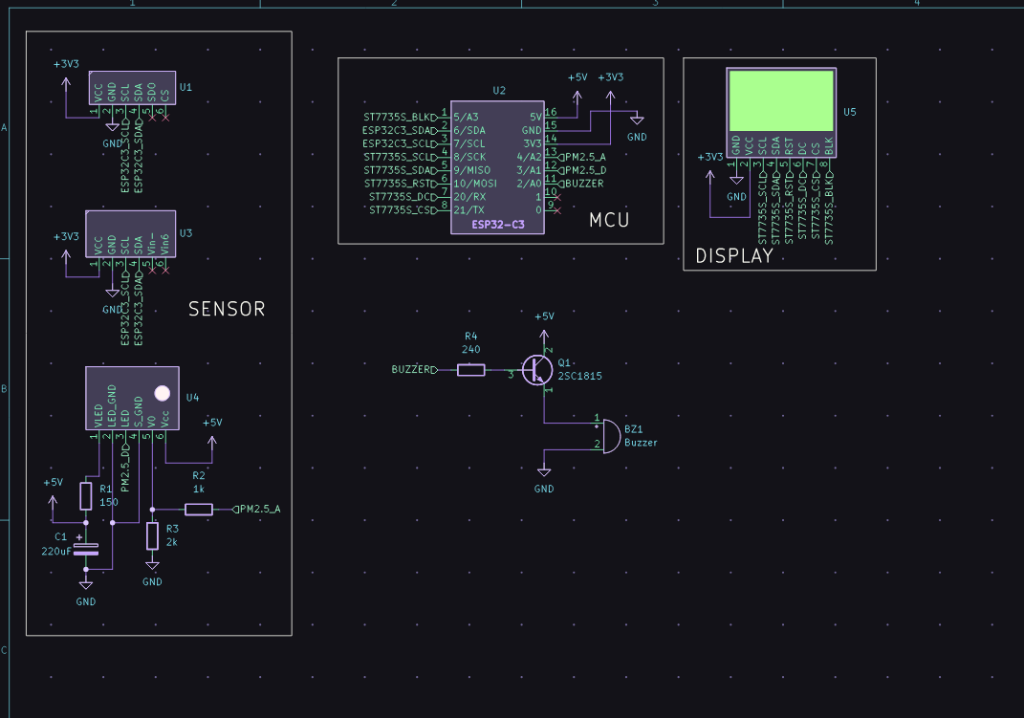

- Schematichardware/schematics/1.kicad_sch
Indoor-Air-Quality-Project: common questions
How many components are on the Indoor-Air-Quality-Project?
12 components, from 8 distinct parts. The full bill of materials is listed on this page.
Where can I download the Indoor-Air-Quality-Project design files?
From the DienKiku/Indoor-Air-Quality-Project repository on GitHub, which has the schematic; the links under Design files point to each one.
Can I use the Indoor-Air-Quality-Project design in my own project?
Yes, under the terms of its MIT license, which DienKiku chose for the repository.
Can I test firmware for the Indoor-Air-Quality-Project without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug ESP32 firmware against it before you order a PCB.
