Travis num2024

dieseltravis·travis-ergogen-numpad·output/pcbs/travis_num2024-routed2.kicad_pcb

Travis num2024 PCB layout, top view — open source AVR/Arduino board by dieseltravis
Simulate this board

About the Travis num2024 PCB

Travis num2024 is an open source AVR/Arduino PCB design by dieseltravis, published on GitHub under the Custom license license. It is a 2-layer board measuring 85.2 × 137.8 mm, with 81 components from 8 distinct parts.

Its main chip is the Arduino Pro Micro, from the AVR/Arduino family. By type, the board carries 22 LEDs, 22 capacitors, 18 diodes, 17 switches and 1 IC.

It belongs with the keyboards and displays & leds designs in this gallery.

From the project

a numpad made with Ergogen

JLCPCB PCBA: 17 @ C5184526 Kailh CPG151101S11-1 Mechanical Keyboard Shaft ROHS https://jlcpcb.com/partdetail/Kailh-CPG151101S111/C5184526 18 @ C7420318 hongjiacheng 1N4148W SOD-123 Switching Diode ROHS https://jlcpcb.com/partdetail/hongjiacheng-1N4148W/C7420318 21 @ C5149201 OPSCO Optoelectronics SK6812MINI-E SMD RGB LEDs(Built-in IC) ROHS https://jlcpcb.com/partdetail/OPSCOOptoelectronics-SK6812MINIE/C5149201 21 @ C710467 HUI JU NM1206B104K251CEGN 100nF X7R ±10% 1206 Multilayer Ceramic Capacitors MLCC - SMD/SMT ROHS https://jlcpcb.com/partdetail/HUIJU-NM1206B104K251CEGN/C710467 * C4747954…

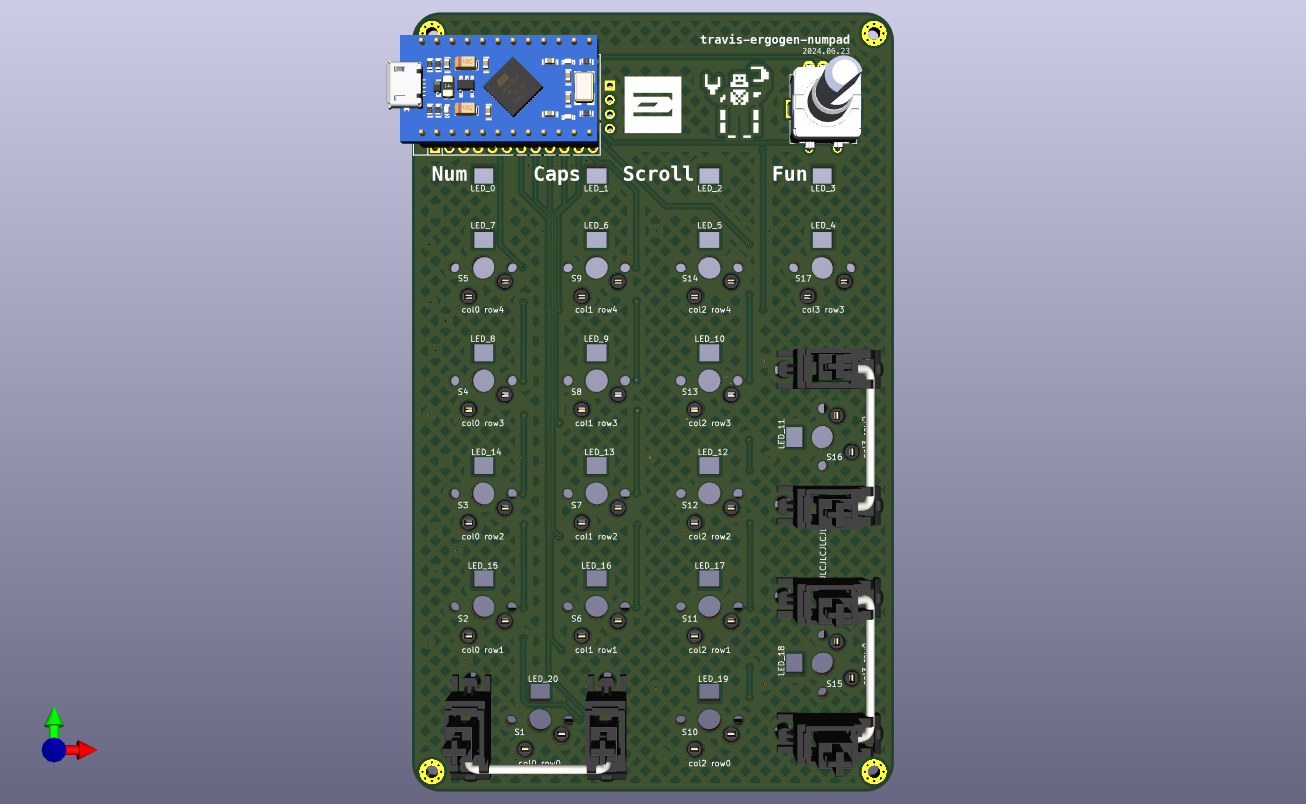

Travis num2024, from the project README
From the project README

Main components on the Travis num2024

Arduino Pro Micro

Travis num2024 bill of materials (BOM)

81 components, 8 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
Arduino Pro Micro
MCU1
1
EC11
ROT1
17
Kailh MX Switch Sockets
S1, S2, S3, S4, S5, S6, S7, S8 +9
21
SK6812mini-e
LED_0, LED_1, LED_2, LED_3, LED_4, LED_5, LED_6, LED_7 +13
1
OLED
OLED1
18
D_1206_3216Metric
D1, D2, D3, D4, D5, D6, D7, D8 +10
1
6.3V 1000uF
C1
21
C_1206_3216Metric
C2, C3, C4, C5, C6, C7, C8, C9 +13

Travis num2024 design files

The KiCad project lives in the dieseltravis/travis-ergogen-numpad repository on GitHub; these links point at the commit this page was built from.

Travis num2024: common questions

What microcontroller does the Travis num2024 use?

The Travis num2024 is built around the Arduino Pro Micro, from the AVR/Arduino family.

How big is the Travis num2024 PCB?

The Travis num2024 measures 85.2 × 137.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Travis num2024?

81 components, from 8 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the Travis num2024 design files?

From the dieseltravis/travis-ergogen-numpad repository on GitHub, which has the KiCad layout and the BOM; the links under Design files point to each one.

Can I use the Travis num2024 design in my own project?

It is published under Custom license, which limits how it may be reused; read the license before building on it.

Can I test firmware for the Travis num2024 without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug AVR/Arduino firmware against it before you order a PCB.
