Overnight sensations PCB layout, top view — open source board by digahill

About the Overnight sensations PCB

Overnight sensations is an open source PCB design by digahill, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 132.5 × 82.5 mm, with 10 components from 10 distinct parts.

By type, the board carries 4 capacitors, 2 connectors, 2 inductors and 2 resistors.

It belongs with the audio designs in this gallery.

From the project

Project files for an Overnight Sensations DIY speaker build.

For build log posts, see the build-posts folder.

You can find pics of the build process in the build-pics folder.

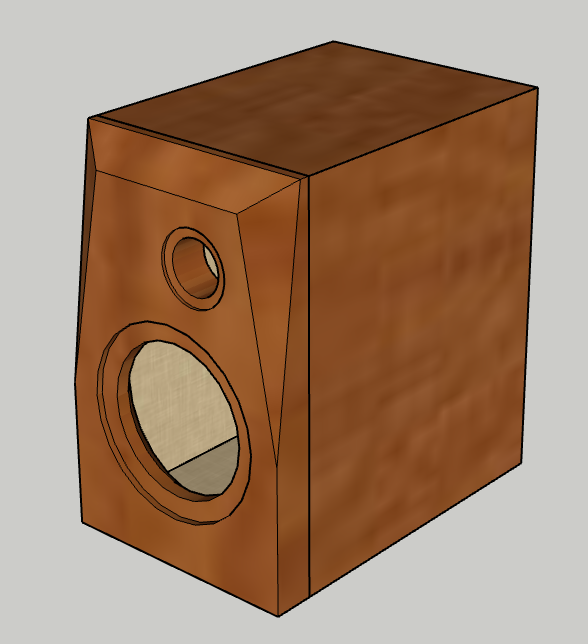

Overnight sensations, from the project README
From the project README

Overnight sensations bill of materials (BOM)

10 components, 10 distinct parts.

QtyPartRefs
1
Screw_Terminal_01x02
J1
1
Screw_Terminal_01x04
J2
1
.35m
L1
1
1.1m
L2
1
1.5u
C1
1
2.2u
C2
1
.22u
C3
1
6.8u
C4
1
6
R1
1
10
R2

Overnight sensations design files

The KiCad project lives in the digahill/overnight-sensations repository on GitHub; these links point at the commit this page was built from.

Overnight sensations: common questions

How big is the Overnight sensations PCB?

The Overnight sensations measures 132.5 × 82.5 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Overnight sensations?

10 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Overnight sensations design files?

From the digahill/overnight-sensations repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Overnight sensations design in my own project?

Yes, under the terms of its GPL-3.0 license, which digahill chose for the repository.
