FlightController PCB layout, top view — open source STM32 board by DiScarlet

About the FlightController PCB

FlightController is an open source STM32 PCB design by DiScarlet, published on GitHub. It is a 2-layer board measuring 39 × 39 mm, with 42 components from 29 distinct parts.

Its main chip is the MPU-6050, from the STM32 family. Other key parts include the ICM-42688-P, USBLC6-2SC6, TPSM63603 and ESC_XROTOR_65A_4IN1. By type, the board carries 23 capacitors, 9 resistors, 5 ICs, 3 connectors, 1 diode and 1 inductor.

It belongs with the robotics & motion designs in this gallery.

From the project

A custom STM32F405-based flight controller designed from the ground up for modern FPV drones. Supports 4S–6S LiPo batteries, four ESC outputs with DShot, USB-C programming, and the ICM-42688-P IMU. The repository includes complete schematics, PCB design, CAD assembly, hardware do

A custom STM32F405-based flight controller designed from the ground up for modern FPV drones. Supports 4S–6S LiPo batteries, four ESC outputs with DShot, USB-C programming, and the ICM-42688-P IMU. The repository includes complete schematics, PCB design, CAD assembly, hardware documentation, and firmware flashing/bring-up guides. Designed for Betaflight compatibility with future ArduPilot support and additional onboard peripherals.

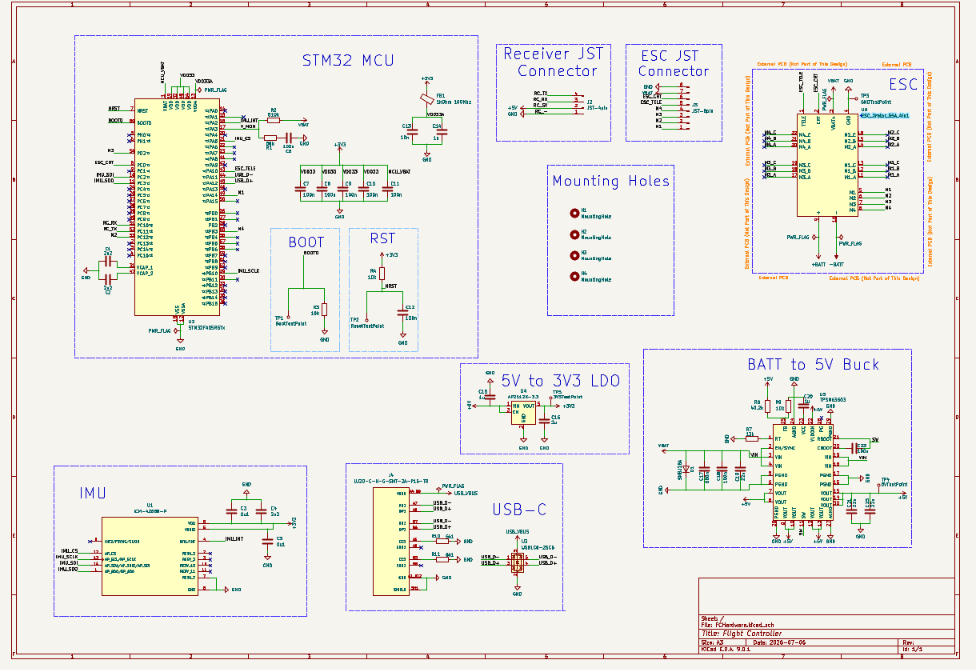

FlightController, from the project README
From the project README

Main components on the FlightController

ICM-42688-PMPU-6050USBLC6-2SC6TPSM63603ESC_XROTOR_65A_4IN1

FlightController bill of materials (BOM)

42 components, 29 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
ICM-42688-P
U1
1
MPU-6050
STM32F405RGTx
U2
1
USBLC6-2SC6
U3
1
TPSM63603
AP2112K-3.3
U4
1
ESC_XROTOR_65A_4IN1
TPSM63603
U5
1
JST-4pin
J2
1
USB_C_RECEPTACLE_USB2.0_16P
JST-8pin
J3
1
UJ20-C-H-G-SMT-2A-P16-TR
J4
1
SMBJ28A
D1
1
1kOhm 100Mhz
FB1
3
2u2
C1, C2, C4
2
0u1
C3, C5
4
100n
C6, C7, C12, C18
3
100N
100n
C8, C11, C22
1
2N2
100n
C9
1
680N
100n
C10
1
100N
10n
C13
2
1u
C14, C20
2
22U
1u
C15, C16
1
680n
C17
Show 9 more
QtyPartRefs
2
22u
C19, C21
1
100N
22u
C23
1
68k
R1
1
510k
R2
3
10k
R3, R4, R9
1
2K2
13k
R7
1
2K2
40.2k
R8
1
5k1
R10
1
27.4K
5k1
R11

FlightController design files

The KiCad project lives in the DiScarlet/FlightController repository on GitHub; these links point at the commit this page was built from.

FlightController: common questions

What microcontroller does the FlightController use?

The FlightController is built around the MPU-6050, from the STM32 family.

How big is the FlightController PCB?

The FlightController measures 39 × 39 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the FlightController?

42 components, from 29 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the FlightController design files?

From the DiScarlet/FlightController repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the FlightController design in my own project?

The repository has no license, so all rights stay with DiScarlet. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the FlightController without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
