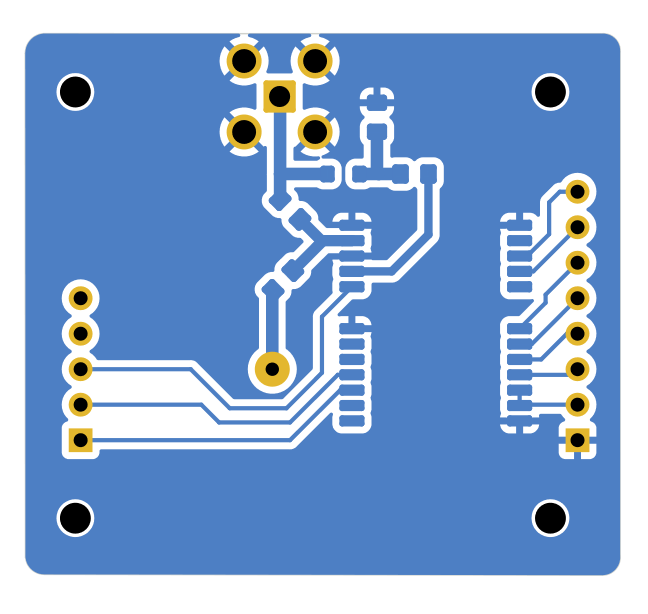

Neo m8p board
About the Neo m8p board
Neo m8p board is an open source PCB design by dizcza, published on GitHub. It is a 2-layer board measuring 33.9 × 32.5 mm, with 12 components from 10 distinct parts.
Other key parts include the NEO-M8P. By type, the board carries 3 connectors, 3 resistors, 2 diodes, 2 capacitors, 1 IC and 1 inductor.
It belongs with the rf & radio designs in this gallery.
From the project
ublox GPS NEO-M8P Kicad design files
The board serves an SMA connector for an external active antenna and a slot for a passive ceramic patch antenna 25x25 mm.
Main components on the Neo m8p board
Neo m8p board bill of materials (BOM)
12 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | NEO-M8P | ublox_NEO | U1 |
| 1 | SMA | SMA_Amphenol_901-143_Horizontal | J1 |
| 2 | Conn_01x05 | PinHeader_1x05_P2.54mm_Vertical | J3, J4 |
| 1 | RTK | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D1 |
| 1 | TP | LED_0805_2012Metric_Pad1.15x1.40mm_HandSolder | D2 |
| 1 | 27nH | L_0805_2012Metric_Pad1.05x1.20mm_HandSolder | L1 |
| 1 | 47pF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1 |
| 1 | 10uF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C2 |
| 1 | 10 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1 |
| 2 | 1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2, R3 |
Neo m8p board design files
The KiCad project lives in the dizcza/neo_m8p_board repository on GitHub; these links point at the commit this page was built from.
- Layoutneo_m8p_board.kicad_pcb
- Schematicneo_m8p_board.kicad_sch
Neo m8p board: common questions
How big is the Neo m8p board?
The Neo m8p board measures 33.9 × 32.5 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Neo m8p board?
12 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Neo m8p board design files?
From the dizcza/neo_m8p_board repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Neo m8p board design in my own project?
The repository has no license, so all rights stay with dizcza. Use it as a reference, and ask the author before reusing the design.
