Pouetpouet board r2
About the Pouetpouet board r2
Pouetpouet board r2 is an open source STM32 PCB design by dkm, published on GitHub under the MIT license. It is a 2-layer board measuring 232.6 × 109.6 mm, with 84 components from 13 distinct parts.
Its main chip is the STM32F072CBT6, from the STM32 family. Other key parts include the TLV70233_SOT23-5 and 74LVC1G34. By type, the board carries 61 diodes, 12 capacitors, 4 resistors, 3 ICs, 1 connector and 1 fuse.
It belongs with the keyboards designs in this gallery.
From the project
The main repository is on sourcehut ~dkm/pouetpouet-board-r2. Anything else is a mirror or a copy and can be out of date.
The main repository is on sourcehut ~dkm/pouetpouet-board-r2. Anything else is a mirror or a copy and can be out of date.
The firmware is Keyberon, a pure rust firmware.
The goal was: build a custom keyboard from scratch continue to learn embedded rust * have fun

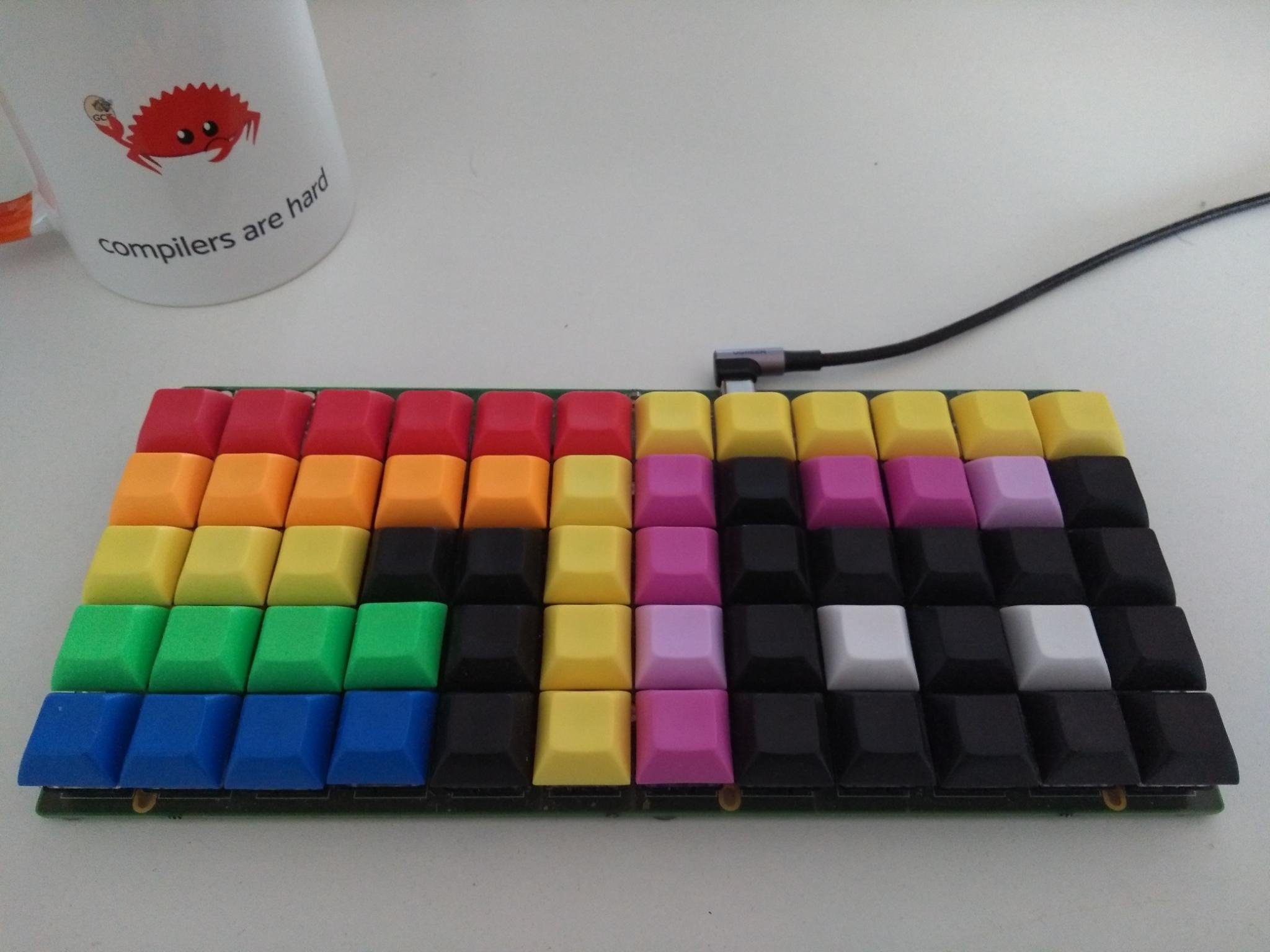

ortholinear 60 keys, using Cherry MX switches, only 1U keycaps; 4 RGB LEDs for status; 6 RGB LEDs for backlight; USB-C connector; 1 STM32F072 MCU, with hardware USB DFU bootloader; Only onboard SMD component (except for the switches). ESD protection
Main components on the Pouetpouet board r2
Pouetpouet board r2 bill of materials (BOM)
84 components, 13 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | STM32F072CBT6 STM32 | LQFP-48_7x7mm_P0.5mm | U1 |
| 1 | TLV70233_SOT23-5 | SOT-23-5 | U2 |
| 1 | 74LVC1G34 | SOT-23-5 | U3 |
| 1 | TYPE-C-31-M-12 USB_C_Receptacle_USB2.0 | USB_C_Receptacle_HRO_TYPE-C-31-M-12 | J1 |
| 1 | 500mA | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | F1 |
| 2 | TS-1101-C-W ~ | SW_SPST_CK_RS282G05A3 | SWBOOT1, SWRST1 |
| 60 | 1N4148WS-7-F | D_SOD-323 | D11, D12, D13, D14, D15, D16, D17, D18 +52 |
| 1 | PRTR5V0U2X | SOT-143 | D20 |
| 5 | 100nF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C1, C2, C3, C4, C5 |
| 2 | 4.7µF | C_0805_2012Metric_Pad1.18x1.45mm_HandSolder | C6, C7 |
| 5 | 100pF | R_0805_2012Metric | C10, C11, C12, C13, C14 |
| 3 | 0805W8F5101T5E 5.1k | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R1, R6, R7 |
| 1 | 0805W8F4700T5E 470 | R_0805_2012Metric_Pad1.20x1.40mm_HandSolder | R2 |
Pouetpouet board r2 design files
The KiCad project lives in the dkm/pouetpouet-board-r2 repository on GitHub; these links point at the commit this page was built from.
Pouetpouet board r2: common questions
What microcontroller does the Pouetpouet board r2 use?
The Pouetpouet board r2 is built around the STM32F072CBT6, from the STM32 family.
How big is the Pouetpouet board r2?
The Pouetpouet board r2 measures 232.6 × 109.6 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Pouetpouet board r2?
84 components, from 13 distinct parts. The full bill of materials is listed on this page.
Where can I download the Pouetpouet board r2 design files?
From the dkm/pouetpouet-board-r2 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Pouetpouet board r2 design in my own project?
Yes, under the terms of its MIT license, which dkm chose for the repository.
Can I test firmware for the Pouetpouet board r2 without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
