Teensy40 Minimalist USB Host

dmadison·Teensy40_Minimalist_USB_Host·pcb/Teensy40_Min_USB_Host.kicad_pcb

Teensy40 Minimalist USB Host PCB layout, top view — open source NXP board by dmadison

About the Teensy40 Minimalist USB Host PCB

Teensy40 Minimalist USB Host is an open source NXP PCB design by dmadison, published on GitHub. It is a 2-layer board measuring 17.8 × 45.7 mm, with 9 components from 8 distinct parts.

Its main chip is the Teensy4.0, from the NXP family. Other key parts include the TPD3S014. By type, the board carries 3 connectors, 2 ICs, 2 capacitors, 1 fuse and 1 inductor.

It belongs with the dev boards & breakouts designs in this gallery.

From the project

A minimalist USB host shield for the Teensy 4.0 development board

This repository contains the KiCAD 6 board files for the Teensy 4.0 minimalist USB host shield. The shield is designed to connect to the underside of the Teensy 4.0 board and provide a safe and stable USB-A host port in a small and lightweight size.

The Teensy board needs to be soldered to 0.1" male headers. It can then be mated to the shield with 0.1" female headers and pogo pins, or soldered directly using enamel wire to connect to the data pads on the underside of the board.

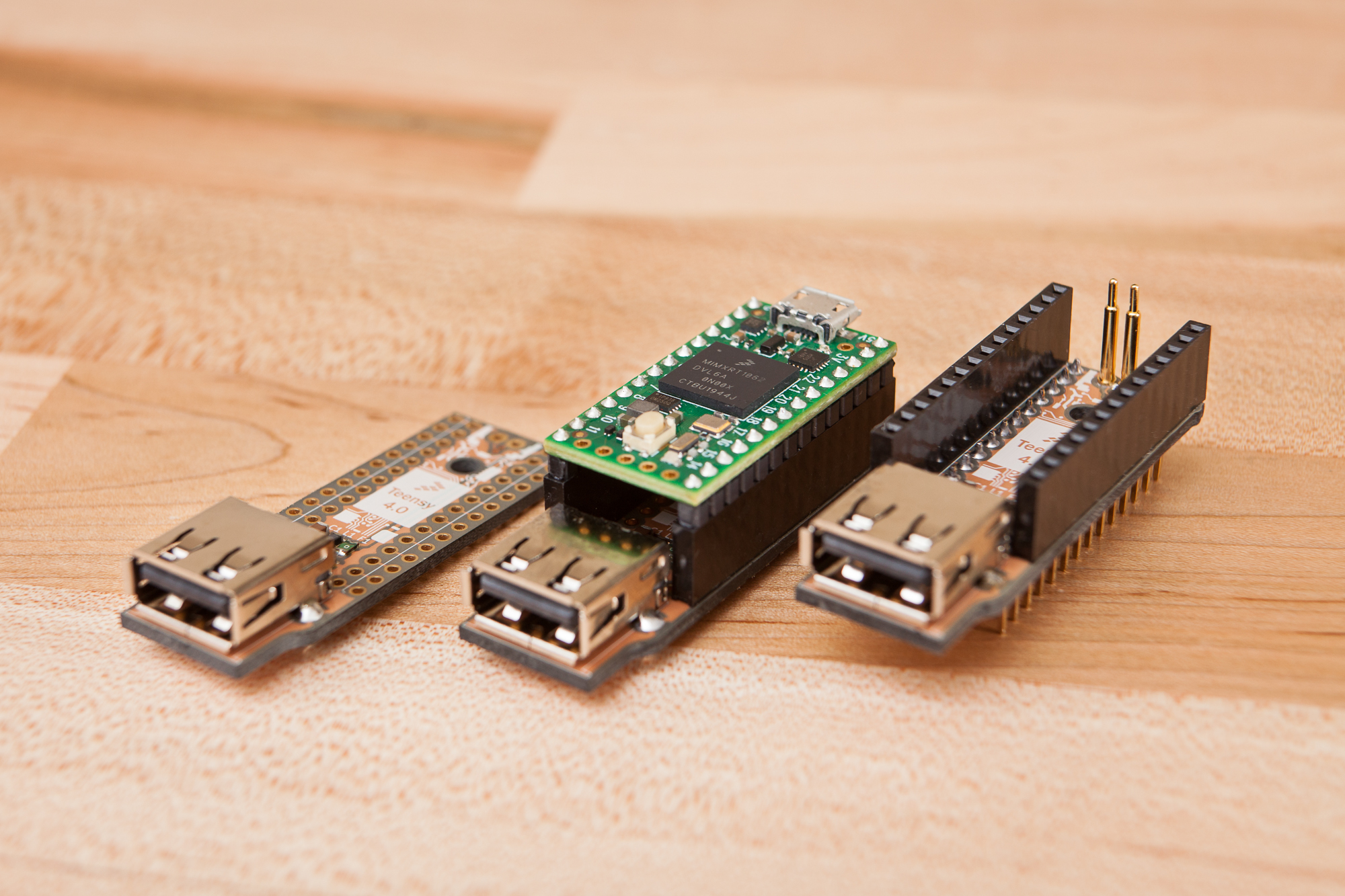

Teensy40 Minimalist USB Host, from the project README
From the project README

Main components on the Teensy40 Minimalist USB Host

TPD3S014Teensy4.0

Teensy40 Minimalist USB Host bill of materials (BOM)

9 components, 8 distinct parts.

QtyPartRefs
1
TPD3S014
Texas Instruments
U1
1
Teensy4.0
U2
1
USB_A
Stewart Connector
J1
2
Conn_01x14
Sullins Connector Solutions
J2, J3
1
500 mA
Eaton - Electronics Division
F1
1
Ferrite, 150Ω
Bourns Inc.
L1
1
2.2 µF
TDK Corporation
C1
1
150 µF
KYOCERA AVX
C2

Teensy40 Minimalist USB Host design files

The KiCad project lives in the dmadison/Teensy40_Minimalist_USB_Host repository on GitHub; these links point at the commit this page was built from.

Teensy40 Minimalist USB Host: common questions

What microcontroller does the Teensy40 Minimalist USB Host use?

The Teensy40 Minimalist USB Host is built around the Teensy4.0, from the NXP family.

How big is the Teensy40 Minimalist USB Host PCB?

The Teensy40 Minimalist USB Host measures 17.8 × 45.7 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Teensy40 Minimalist USB Host?

9 components, from 8 distinct parts. The full bill of materials is listed on this page.

Where can I download the Teensy40 Minimalist USB Host design files?

From the dmadison/Teensy40_Minimalist_USB_Host repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Teensy40 Minimalist USB Host design in my own project?

The repository has no license, so all rights stay with dmadison. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Teensy40 Minimalist USB Host without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug NXP firmware against it before you order a PCB.
