RCD Switch Expander

DMRoberts·RCD_Switch_Expander·PCB/RCD_2HP_Expander.kicad_pcb

RCD Switch Expander PCB layout, top view — open source board by DMRoberts

About the RCD Switch Expander PCB

RCD Switch Expander is an open source PCB design by DMRoberts, published on GitHub. It is a 2-layer board measuring 8.9 × 100.3 mm, with 12 components from 2 distinct parts.

It belongs with the audio designs in this gallery.

From the project

PCB and Panel files for a Eurorack switch expander. Designed for the 4MS Rotating Clock Divider (RCD).

The panel was produced via Front Panel Express (https://www.frontpanelexpress.com/). The included Front Design file (FPD) can be used to order the same panel. The panel text was created in Affinity Designer, and imported into Front Design as a graphic object. To change the text, you can either:

A. Replace the graphic object with text engravings:

1. Delete the graphic layer in Front Design. 2. Insert Front Design text engravings.

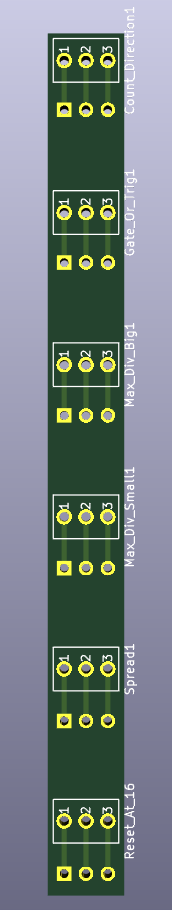

RCD Switch Expander, from the project README
From the project README

RCD Switch Expander bill of materials (BOM)

12 components, 2 distinct parts.

QtyPartRefs
6
CONN_01X03
CountH1, GateTrigH1, MaxDivBigH1, MaxDivSmallH1, Reset16H1, SpreadH1
6
SW_SPDT
Count_Direction1, Gate_Or_Trig1, Max_Div_Big1, Max_Div_Small1, Reset_At_16, Spread1

RCD Switch Expander design files

The KiCad project lives in the DMRoberts/RCD_Switch_Expander repository on GitHub; these links point at the commit this page was built from.

RCD Switch Expander: common questions

How big is the RCD Switch Expander PCB?

The RCD Switch Expander measures 8.9 × 100.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the RCD Switch Expander?

12 components, from 2 distinct parts. The full bill of materials is listed on this page.

Where can I download the RCD Switch Expander design files?

From the DMRoberts/RCD_Switch_Expander repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the RCD Switch Expander design in my own project?

The repository has no license, so all rights stay with DMRoberts. Use it as a reference, and ask the author before reusing the design.
