About the Dw3005t PCB

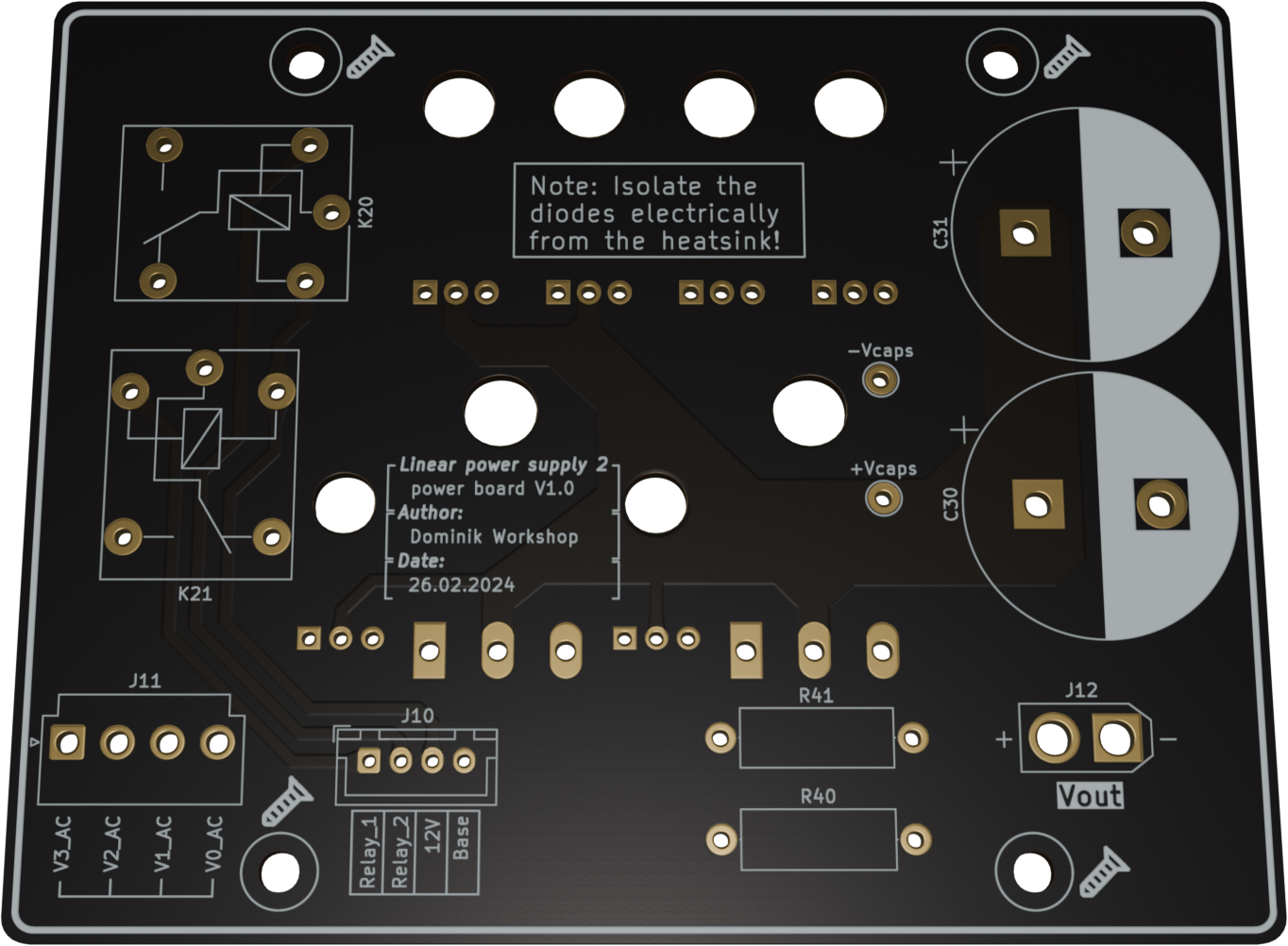

Dw3005t is an open source PCB design by Dominik-Workshop, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 100 × 79 mm, with 19 components from 10 distinct parts.
By type, the board carries 6 diodes, 4 transistors, 3 connectors, 2 relays, 2 capacitors and 2 resistors.
It belongs with the power & battery designs in this gallery.
From the project
Linear power supply, with digital control
This is the second iteration of my linear power supply project available on GitHub, building upon the foundation of my original design. While the first version served as an excellent learning experience, the DW3005T aims to improve upon its predecessor with enhanced performance, better stability, and a more professional design.
- 30V 5A output - Very small output resistance - Precise voltage, current and power measurements - Small output noise - Digital controll - rotary encoder
Dw3005t bill of materials (BOM)
19 components, 10 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 2 | BD249C | TO-247-3_Horizontal_TabUp | Q40, Q42 |
| 2 | BD139 | TO-126-3_Horizontal_TabUp | Q41, Q43 |
| 1 | JST_B4B-XH-A | JST_XH_B4B-XH-A_1x04_P2.50mm_Vertical | J10 |
| 1 | JST_B4P-VH | JST_VH_B4P-VH_1x04_P3.96mm_Vertical | J11 |
| 1 | XT30 | AMASS_XT30U-F_1x02_P5.0mm_Vertical | J12 |
| 2 | FINDER-40.41 | Relay_SPDT_Finder_36.11 | K20, K21 |
| 2 | BYG22B-E3/TR BYG22B | D_SMA | D20, D21 |
| 4 | MBR3045CT | TO-220-3_Horizontal_TabUp | D30, D31, D32, D33 |
| 2 | 2200u | CP_Radial_D22.0mm_P10.00mm_SnapIn | C30, C31 |
| 2 | 0R2 | R_Axial_DIN0414_L11.9mm_D4.5mm_P15.24mm_Horizontal | R40, R41 |
Dw3005t design files
The KiCad project lives in the Dominik-Workshop/dw3005t repository on GitHub; these links point at the commit this page was built from.
Dw3005t: common questions
How big is the Dw3005t PCB?
The Dw3005t measures 100 × 79 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Dw3005t?
19 components, from 10 distinct parts. The full bill of materials is listed on this page.
Where can I download the Dw3005t design files?
From the Dominik-Workshop/dw3005t repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.
Can I use the Dw3005t design in my own project?
Yes, under the terms of its GPL-3.0 license, which Dominik-Workshop chose for the repository.
