Sapflow gauge

dotmote·sapflow·hardware/sapflow_gauge/kicad/sapflow_gauge/sapflow_gauge.kicad_pcb

Sapflow gauge PCB layout, top view — open source board by dotmote

About the Sapflow gauge PCB

Sapflow gauge is an open source PCB design by dotmote, published on GitHub. It is a 2-layer board measuring 25.2 × 22.8 mm, with 8 components from 7 distinct parts.

It belongs with the iot & wireless, dev boards & breakouts and sensors designs in this gallery.

From the project

Opensource Sapflow

So you want to measure sapflow in plants? You and me both, buddy. The goal of this project is to create an open-source, accurate, robust, low-cost, and low-power system to help answer the age-old question: "How is my plant doing?"

To build the gauge, you'll need: (1) the PCB; and (2) the components.

Visualize your hard-earned data with this Observable notebook.

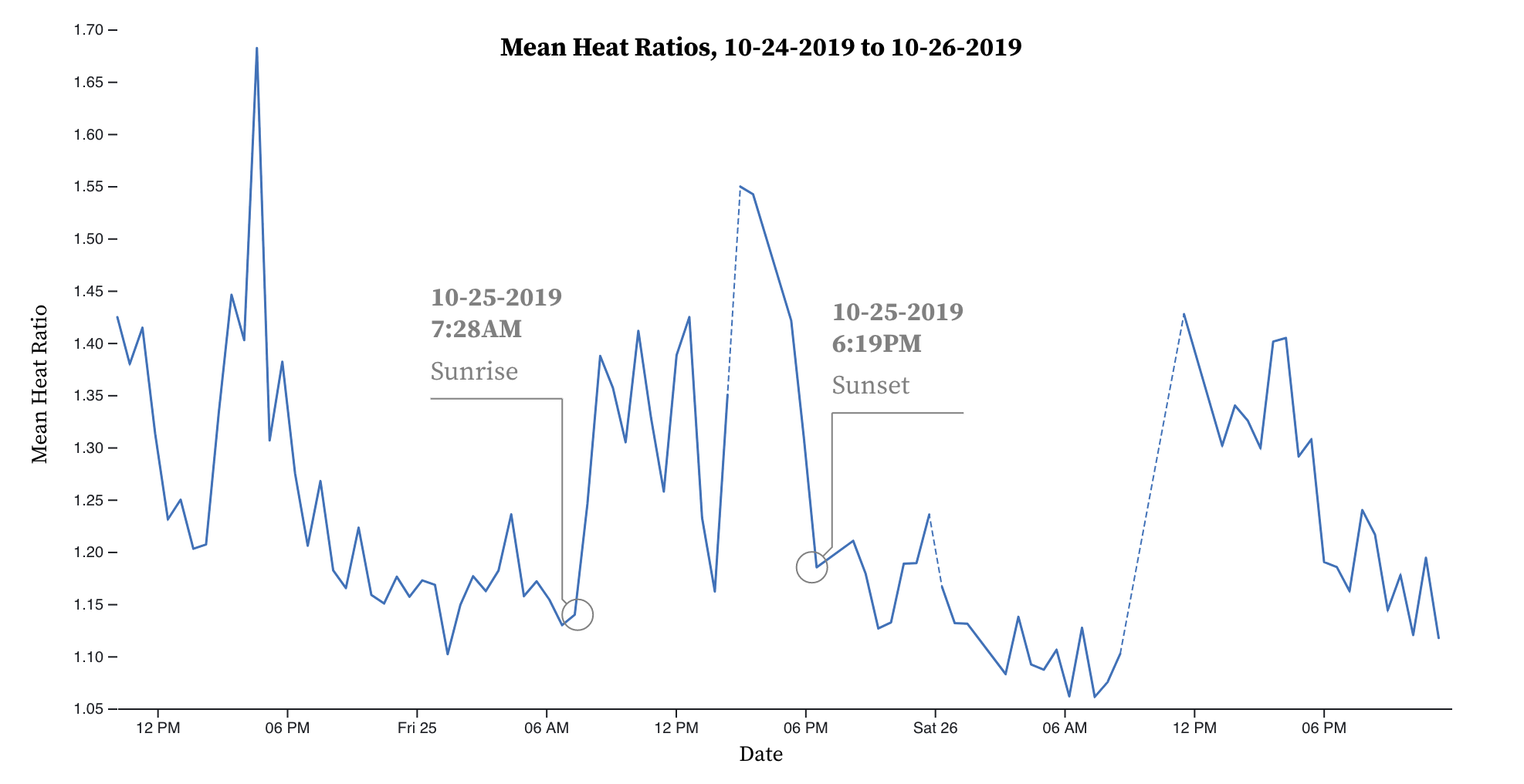

Sapflow gauge, from the project README
From the project README

Sapflow gauge bill of materials (BOM)

8 components, 7 distinct parts.

QtyPartRefs
1
0.1uF
0.1uF
1
5K
5K
1
10K
10K
1
100
100
1
230
230
1
DMN3051L
DMN3051L
2
HDC2080
TEMP1, TEMP2

Sapflow gauge design files

The KiCad project lives in the dotmote/sapflow repository on GitHub; these links point at the commit this page was built from.

Sapflow gauge: common questions

How big is the Sapflow gauge PCB?

The Sapflow gauge measures 25.2 × 22.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Sapflow gauge?

8 components, from 7 distinct parts. The full bill of materials is listed on this page.

Where can I download the Sapflow gauge design files?

From the dotmote/sapflow repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Sapflow gauge design in my own project?

The repository has no license, so all rights stay with dotmote. Use it as a reference, and ask the author before reusing the design.
