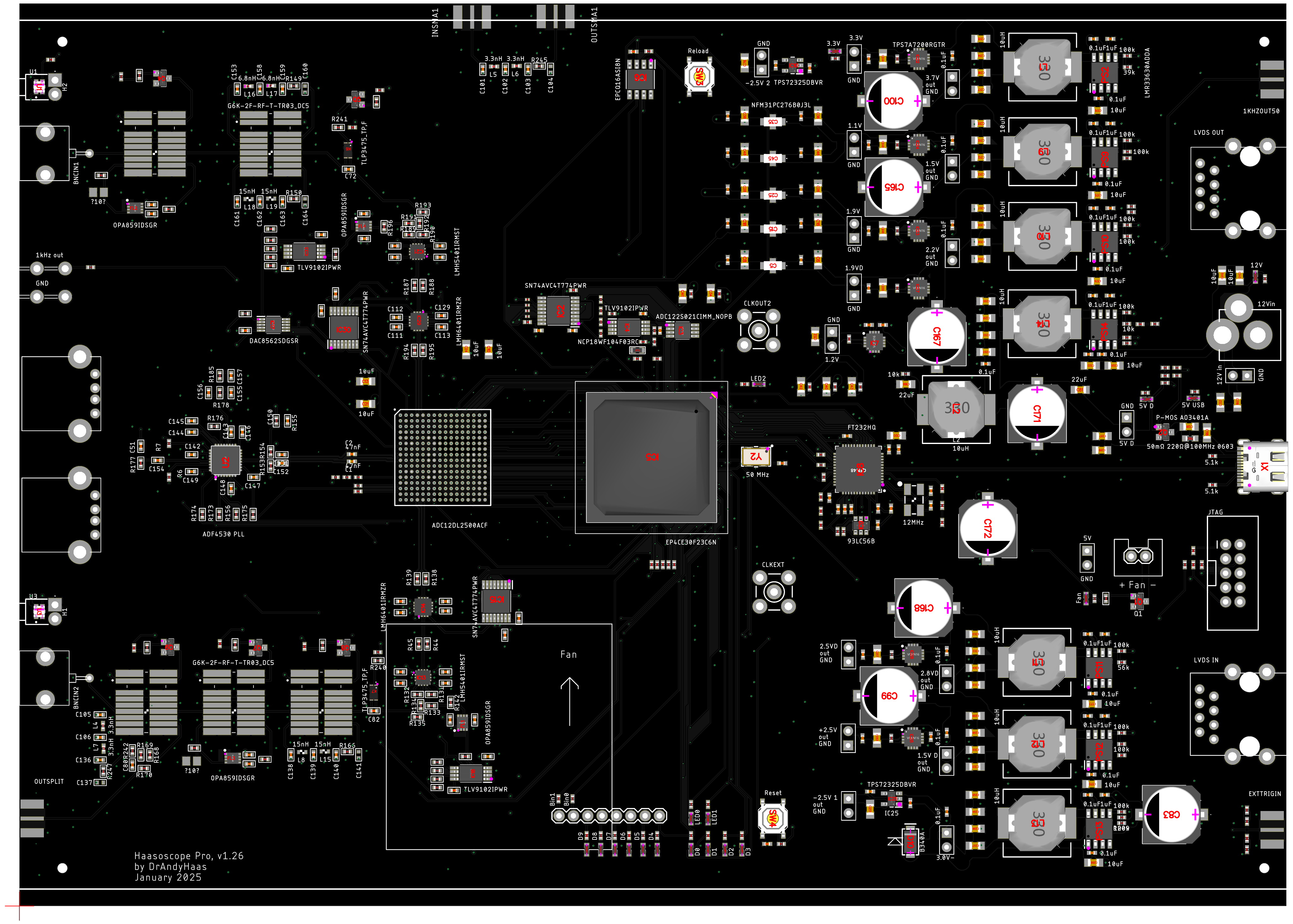

HaasoscopePro is an open source FPGA PCB design by drandyhaas: a 10-layer, 224.5 × 160 mm board with 586 components (94 distinct parts). It is built around the ADC12DL500ACF, C129363, C206499, C2058017 and more. Filed under test & measurement and audio and usb & debug tools.

Affordable 2 GHz 3.2 GS/s 12 bit open-source open-hardware expandable USB real-time oscilloscope

This is the main ADC and FPGA board for the Haasoscope Pro - a 2 GHz 3.2 GS/s 12-bit open-source USB oscilloscope.

The Haasoscope Pro ADC board is a high-performance data acquisition board featuring dual-channel analog-to-digital conversion with FPGA processing and USB connectivity. The board integrates the complete signal chain from analog inputs through digitization, processing, and USB transfer.

HaasoscopePro, from the project README — From the project README

Built around

ADC12DL500ACF C129363 C206499 C2058017 C6549145 C467192 C180439 C82158 C190271 C69932 C2057542 C2060538 C127965 C98705 RJ45-CONNECTOR-SHIELDED

Parts list

586 components, 94 distinct parts — part numbers from the project's BOM.

Qty	Part	Footprint	Refs
1	ADC12DL500ACF ADC12DL2500ACF	BGA256C100P16X16_1700X1700X331	IC1
3	C129363 SN74AVC4T774PWR Texas Instruments	SOP65P640X120-16N	IC2, IC15, IC30
1	C206499 ADC122S021CIMM_NOPB Texas Instruments	SOP65P490X110-8N	IC3
3	C2058017 TLV9102IPWR Texas Instruments	SOP65P640X120-8N	IC4, IC18, IC33
1	C6549145 EP4CE30F23C6N intel/altera	BGA484C100P22X22_2300X2300X240	IC5
1	C467192 EPCQ16ASI8N intel/altera	SOIC127P600X175-8N	IC6
7	C180439 TPS7A7200RGTR Texas Instruments	QFN50P300X300X100-17N	IC7, IC22, IC23, IC24, IC26, IC27, IC28
1	C82158 FT232HQ Ftdi	QFN48_8MM	IC8
1	C190271 93LC56B Microchip Tech	SOT23-6	IC9
2	C69932 TPS72325DBVR Texas Instruments	SOT95P280X145-5N	IC10, IC25
2	C2057542 LMH5401IRMST Texas Instruments	LMH5401IRMSR	IC13, IC21
2	C2060538 LMH6401IRMZR Texas Instruments	LMH6401IRMZR	IC14, IC29
1	C127965 DAC8562SDGSR Texas Instruments	SOP50P490X110-10N	IC17
1	C98705 ADF4350BCPZ Analog Devices	QFN50P500X500X100-33V2N	U2
2	RJ45-CONNECTOR-SHIELDED	RJ45_THT_RA_AMPH-FRJAE448	U$1, U$3
6	C7420370 S8050 Hongjiacheng	SOT-23_477	Q1, Q4, Q5, Q7, Q8, Q9
1	P-MOS AO3401A FDN340P Alpha & Omega Semicon	SOT-23_477	Q2
1	C5307756 USBC Hctl	USB_C_CUSB31-CFM2AX-01-X	X1
1	C2901546 OSCILLATORSMD-5X3 Shenzhen Sctf Elec	OSCILLATOR-SMD-5X3.2_511	Y2
1	C2901628 12MHz Shenzhen Sctf Elec	CRYSTAL-SMD-5X3	Y3

Show 74 more

Qty	Part	Footprint	Refs
1	12Vin	DCJACK_2MM_PTH	CN2
19	2p-2.54	H2-2.54_478	J1, J3, J4, J30, J31, J32, J33, J34 +11
2	test1	USB-2.0-A-THT-RA-TE_AMP-292303-1	J2, J15
4	8pin	1X08_513	J8, J10, J11, J13
4	—		@HOLE0, @HOLE1, @HOLE2, @HOLE3
2	73100-0105 MOLEX_BNC_73100-0105	MOLEX-BNC-73100-0105	BNCIN1, BNCIN2
2	BU-SMB-V	BU-SMB-V_133	CLKEXT0, CLKOUT2
3	50	SMA_EDGELAUNCH	EXTTRIGIN0, OUTSPLIT0, UNK1KHZOUT50
4	C2058582 OPA859IDSGR Texas Instruments	SON50P200X200X80-9N	FL1, FL2, FL3, FL4
1	Fan	1X02	JST_FAN0
1	2x5	2X5-SHROUDED_513	JTAG0
5	C5644852 G6K-2F-RF-T-TR03_DC5 Omron Electronics	G6K2FRFTTR03DC5	K1, K2, K3, K4, K5
2	TLP3475 TLP3475_TP,F Toshiba	TLP3475TPF	K6, K7
7	C841384 LMR33630ADDA Texas Instruments	SOIC127P600X170-9N	PS2, PS9, PS10, PS11, PS12, PS13, PS14
2	C116647 SKQGADE010 Alpsalpine	SW4-SMD-5.2X5.2X1.5MM_476	SW3, SW4
17	C2286 red Hubei Kento Elec	CHIP-LED0603	LED1, LED2, LED3, LED25, LED26, LED27, LED28, LED29 +9
1	red	CHIP-LED0603	LED44
1	C64982 B340A mdd(microdiode semiconductor)	SMA-DIODE_514	D10
1	C14709 50mΩ 220Ω@100MHz 0603 Murata Electronics	0603_512	FB2
7	C339970 10uH Yjycoin	CDRH125	L1, L9, L10, L11, L12, L13, L14
2	C272875 47nF Yageo	RESC0402_N_169009	C1, C2
30	C1525 0.1uF Samsung electro-mechanics	RESC0402_N_169009	C3, C4, C7, C9, C17, C19, C27, C29 +22
5	C118987 NFM31PC276B0J3L Murata Electronics	NFM31HK103R1H3L	C5, C15, C25, C35, C45
40	C15850 10uF Samsung electro-mechanics	RESC0805_N_169009	C6, C8, C10, C13, C16, C18, C21, C24 +32
5	1uF	RESC0402_N_169009	C11, C14, C22, C30, C32
16	0.1uF	RESC0402_N_169009	C12, C20, C23, C31, C33, C61, C62, C63 +8
2	C1525 0.1uF Samsung electro-mechanics	0402_CAP	C44, C50
46	C1525 0.1uF Samsung electro-mechanics	C0402	C51, C55, C56, C75, C78, C84, C85, C86 +38
2	?10?	C0805_348	C57, C79
2	C52923 RF_1uF Samsung electro-mechanics	C0402	C72, C82
2	C77590 16pF Yageo	RESC0402_N_169009	C127, C128
1	C22435967 2.7nF Hre	C0402	C155
1	C107030 680pF Yageo	C0402	C156
1	C272875 47nF Yageo	C0402	C157
30	C307331 0.1uF Samsung electro-mechanics	RESC0402_N_169009	C245, C247, C249, C250, C252, C254, C256, C258 +22
7	C52923 1uF Samsung electro-mechanics	RESC0402_N_169009	C261, C265, C269, C273, C277, C281, C285
28	C45783 22uF Samsung electro-mechanics	RESC0805_N_169009	C290, C291, C292, C293, C294, C295, C296, C297 +20
4	C270366 100 uni-royal(uniroyal elec)	0201	R1, R2, R3, R4
26	C25744 10k uni-royal(uniroyal elec)	RES-0402	R5, R27, R38, R78, R79, R80, R82, R83 +18
35	C11702 1k uni-royal(uniroyal elec)	RES-0402	R6, R7, R8, R9, R10, R11, R12, R13 +27
7	C17168 0 uni-royal(uniroyal elec)	RES-0402	R15, R18, R81, R87, R88, R89, R90
60	100	0201	R17, R19, R20, R21, R23, R24, R25, R26 +52
4	C25118 47 uni-royal(uniroyal elec)	RES-0402	R31, R136, R160, R210
2	C26083 1M uni-royal(uniroyal elec)	R0402	R42, R158
8	C25118 47 uni-royal(uniroyal elec)	R0402	R43, R153, R154, R159, R168, R169, R170, R177
8	C185420 39 Yageo	R0402	R44, R45, R138, R139, R187, R188, R194, R195
1	C423184 1k uni-royal(uniroyal elec)	RES-0402	R50
5	C11702 1k uni-royal(uniroyal elec)	0402_RES	R122, R124, R126, R202, R203
5	C25744 10k uni-royal(uniroyal elec)	0402_RES	R125, R127, R130, R186, R198
2	C17168 0 uni-royal(uniroyal elec)	0402_RES	R128, R129
4	C1509602 127 Viking Tech	R0402	R131, R132, R189, R190
2	C368442 66.5 Walsin Tech Corp	R0402	R133, R191
2	C272377 22.6 Yageo	R0402	R134, R192
2	C25091 357 uni-royal(uniroyal elec)	R0402	R135, R193
14	C25741 100k uni-royal(uniroyal elec)	RES-0402	R137, R163, R209, R221, R223, R224, R225, R226 +6
19	C11702 1k uni-royal(uniroyal elec)	R0402	R140, R141, R143, R144, R145, R146, R147, R162 +11
3	C17168 0 uni-royal(uniroyal elec)	R0402	R142, R155, R196
1	C25744 75 uni-royal(uniroyal elec)	R0402	R148
2	C17168 75 uni-royal(uniroyal elec)	R0402	R149, R166
1	C17168 120 uni-royal(uniroyal elec)	R0402	R150
6	C25905 5.1k uni-royal(uniroyal elec)	RES-0402	R152, R182, R183, R217, R218, R235
4	C25744 10k uni-royal(uniroyal elec)	R0402	R156, R173, R174, R175
1	C25905 75 uni-royal(uniroyal elec)	R0402	R165
1	C25744 120 uni-royal(uniroyal elec)	R0402	R167
1	C25905 5.1k uni-royal(uniroyal elec)	R0402	R176
1	C185420 39 Yageo	RES-0402	R184
1	C423184 357 uni-royal(uniroyal elec)	R0402	R185
2	C26083 1M uni-royal(uniroyal elec)	RES-0402	R204, R205
1	NCP18XH103F03RB NCP18WF104F03RC Murata Electronics	R0603_474	R207
1	47	RES-0402	R211
1	C25783 39k uni-royal(uniroyal elec)	RES-0402	R222
1	C25796 56k uni-royal(uniroyal elec)	RES-0402	R228
1	C11702 10k uni-royal(uniroyal elec)	RES-0402	R237
2	C25079 120 uni-royal(uniroyal elec)	R0402	R240, R241
