Learning rmk PCB layout, top view — open source RP2040/RP2350 board by Dreamy-Jy

About the Learning rmk PCB

Learning rmk is an open source RP2040/RP2350 PCB design by Dreamy-Jy, published on GitHub. It is a 2-layer board measuring 84 × 57.3 mm, with 19 components from 3 distinct parts.

Its main chip is the Raspberry_Pi_Pico, from the RP2040/RP2350 family. By type, the board carries 9 switches, 9 diodes and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

A chronicle of my efforts learning RMK.

- I've provide no documentation for this part of the project. Interested parties are responsible for their own understanding - Thank you to NYC Resistor For helping to put together the board

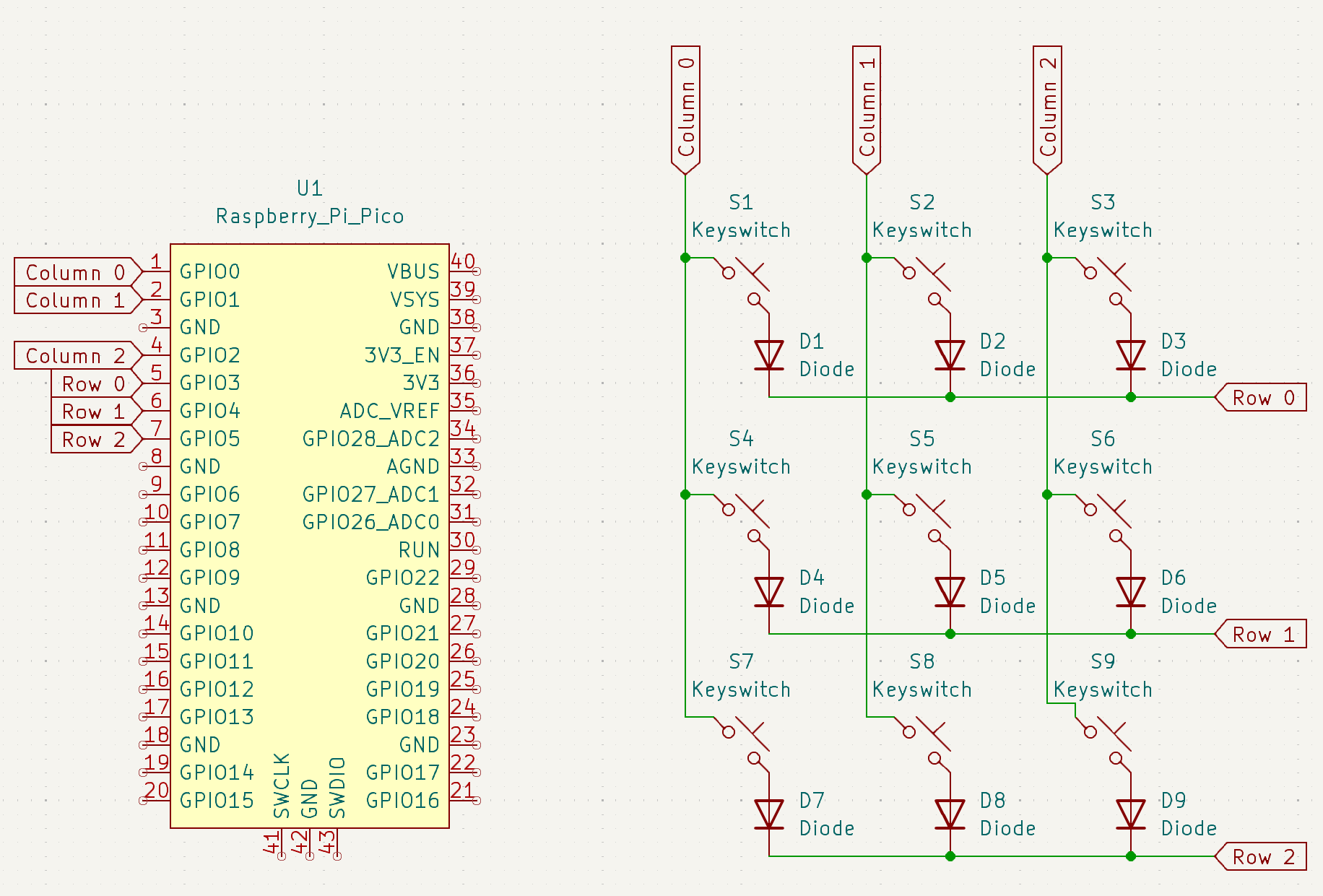

Learning rmk, from the project README
From the project README

Main components on the Learning rmk

Raspberry_Pi_Pico

Learning rmk bill of materials (BOM)

19 components, 3 distinct parts.

QtyPartRefs
1
Raspberry_Pi_Pico
U1
9
Keyswitch
S1, S2, S3, S4, S5, S6, S7, S8 +1
9
Diode
D1, D2, D3, D4, D5, D6, D7, D8 +1

Learning rmk design files

The KiCad project lives in the Dreamy-Jy/learning_rmk repository on GitHub; these links point at the commit this page was built from.

Learning rmk: common questions

What microcontroller does the Learning rmk use?

The Learning rmk is built around the Raspberry_Pi_Pico, from the RP2040/RP2350 family.

How big is the Learning rmk PCB?

The Learning rmk measures 84 × 57.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Learning rmk?

19 components, from 3 distinct parts. The full bill of materials is listed on this page.

Where can I download the Learning rmk design files?

From the Dreamy-Jy/learning_rmk repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Learning rmk design in my own project?

The repository has no license, so all rights stay with Dreamy-Jy. Use it as a reference, and ask the author before reusing the design.

Can I test firmware for the Learning rmk without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
