About the Hvawg PCB

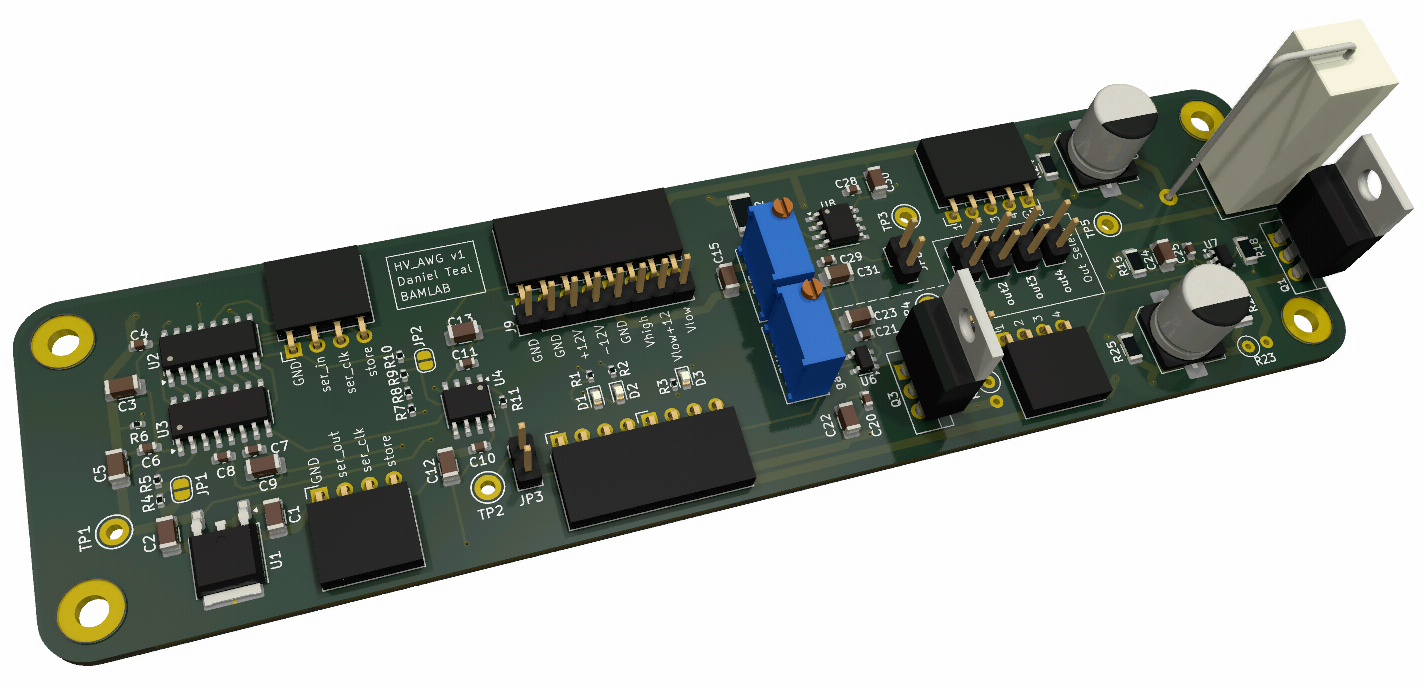

Hvawg is an open source PCB design by dteal, published on GitHub. It is a 2-layer board measuring 150 × 40 mm, with 55 components from 13 distinct parts.
Other key parts include the L7805, C5947, DAC0808LCMX/NOPB, NE5532 and LM8261. By type, the board carries 27 capacitors, 18 resistors, 7 ICs and 3 diodes.
From the project
High voltage modular arbitrary waveform generator.
This is the first draft iteration of a modular arbitrary waveform generator intended to generate possibly tens of separate ±100V 1MHz signals for small capacitive loads, e.g., electrostatic actuators or ion traps.
WARNING: THIS BOARD IS DANGEROUS. IT USES SOMEWHAT HIGH VOLTAGES AT SOMEWHAT HIGH POWER. DO NOT BUILD, TEST, OR USE WITHOUT BOTH CAUTION AND KNOWING WHAT YOU ARE DOING. No guarantees or warranty or support is provided, etc.
Main components on the Hvawg
Hvawg bill of materials (BOM)
55 components, 13 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | L7805 | TO-252-2 | U1 |
| 1 | C5947 74HC595D,110 | SOIC-16_3.9x9.9mm_P1.27mm | U2 |
| 1 | DAC0808LCMX/NOPB | SOIC-16_3.9x9.9mm_P1.27mm | U3 |
| 2 | NE5532 | SOIC-8_3.9x4.9mm_P1.27mm | U4, U8 |
| 2 | LM8261 | SOT-23-5 | U6, U7 |
| 3 | LED | LED_0603_1608Metric | D1, D2, D3 |
| 13 | 10U 10u | C_1206_3216Metric | C1, C2, C3, C5, C9, C12, C13, C15 +5 |
| 12 | 100N 100n | C_0603_1608Metric | C4, C6, C7, C8, C10, C11, C14, C20 +4 |
| 2 | 4.7U 4.7u | CP_Elec_8x10.5 | C26, C27 |
| 12 | 2.7K 2.7k | R_0402_1005Metric | R1, R2, R3, R4, R5, R6, R7, R8 +4 |
| 1 | 110K 110k | R_2010_5025Metric | R12 |
| 4 | 1M | R_1206_3216Metric | R15, R18, R24, R25 |
| 1 | 75 | R_2010_5025Metric | R22 |
Hvawg design files
The KiCad project lives in the dteal/hvawg repository on GitHub; these links point at the commit this page was built from.
Hvawg: common questions
How big is the Hvawg PCB?
The Hvawg measures 150 × 40 mm, has 2 copper layers and is 1.6 mm thick.
How many components are on the Hvawg?
55 components, from 13 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the Hvawg design files?
From the dteal/hvawg repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the Hvawg design in my own project?
The repository has no license, so all rights stay with dteal. Use it as a reference, and ask the author before reusing the design.
