About the Pico-Matrix-Touch-Keyboard PCB

Pico-Matrix-Touch-Keyboard is an open source RP2040/RP2350 PCB design by DustinWatts, published on GitHub under the MIT license. It is a 2-layer board measuring 98.1 × 55.9 mm, with 6 components from 5 distinct parts.

Its main chip is the Pico, from the RP2040/RP2350 family. By type, the board carries 5 connectors and 1 IC.

It belongs with the keyboards designs in this gallery.

From the project

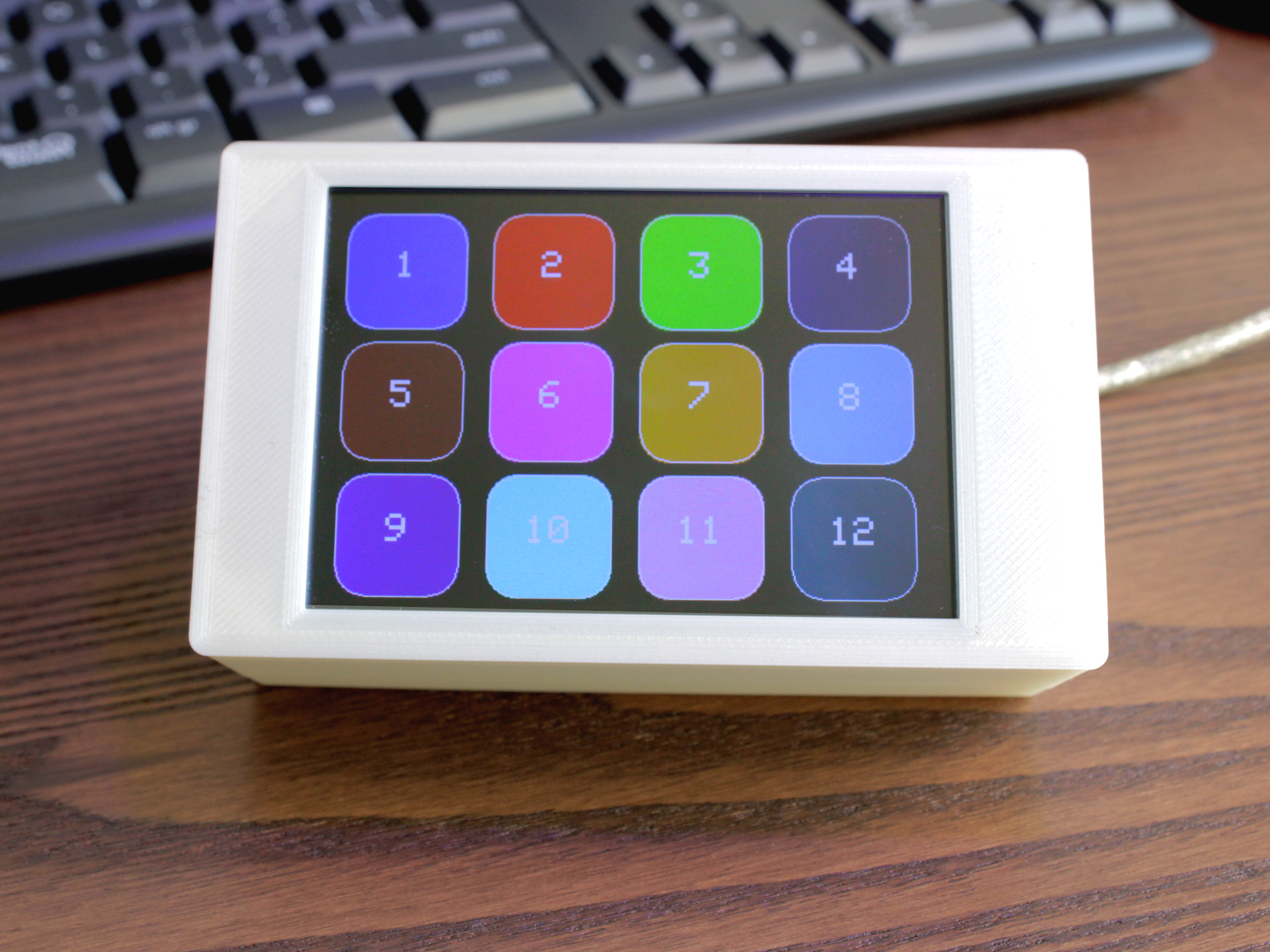

A touchscreen matrix using an 3.5" ILI9488 TFT with resistive touch and a Raspberry Pi Pico

A touchscreen matrix using an 3.5" ILI9488 TFT with resistive touch and a Raspberry Pi Pico. The Raspberry Pi Pico has native HID Keyboard support. This sketch gives you 12 buttons in a 4x3 matrix. Each button can have one or more keyboard functions.

- In the Arduino IDE go to File->Preferences. - Under "Additional Board Manager URLs" add this line: https://github.com/earlephilhower/arduino-pico/releases/download/global/packagerp2040index.json. Click OK. - Go to Tools->Boards->Board Manager. Type "pico" in the search box and click "Install" for "Raspberry Pi Pico/RP2040".

Main components on the Pico-Matrix-Touch-Keyboard

Pico

Pico-Matrix-Touch-Keyboard bill of materials (BOM)

6 components, 5 distinct parts.

Qty	Part	Footprint	Refs
1	Pico	RPi_Pico_SMD_TH	U1
1	Conn_01x03_Female	PinSocket_1x03_P2.54mm_Vertical	J1
1	ILI9488_Touch	PinHeader_1x14_P2.54mm_Vertical	J2
2	Conn_01x20_Male	PinHeader_1x20_P2.54mm_Vertical	J3, J4
1	Conn_01x04_Male	PinHeader_1x04_P2.54mm_Vertical	J5

Pico-Matrix-Touch-Keyboard design files

The KiCad project lives in the DustinWatts/Pico-Matrix-Touch-Keyboard repository on GitHub; these links point at the commit this page was built from.

LayoutPico_TFT_Combiner_Board/Pico_TFT_combiner.kicad_pcb

Pico-Matrix-Touch-Keyboard: common questions

What microcontroller does the Pico-Matrix-Touch-Keyboard use?

The Pico-Matrix-Touch-Keyboard is built around the Pico, from the RP2040/RP2350 family.

How big is the Pico-Matrix-Touch-Keyboard PCB?

The Pico-Matrix-Touch-Keyboard measures 98.1 × 55.9 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pico-Matrix-Touch-Keyboard?

6 components, from 5 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pico-Matrix-Touch-Keyboard design files?

From the DustinWatts/Pico-Matrix-Touch-Keyboard repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Pico-Matrix-Touch-Keyboard design in my own project?

Yes, under the terms of its MIT license, which DustinWatts chose for the repository.

Can I test firmware for the Pico-Matrix-Touch-Keyboard without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug RP2040/RP2350 firmware against it before you order a PCB.
