VESC6 OPEN HARDWARE
duwogus7650-ctrl·board-design·hardware/qdd_ctrl_100v/VESC6_OPEN_HARDWARE.kicad_pcb

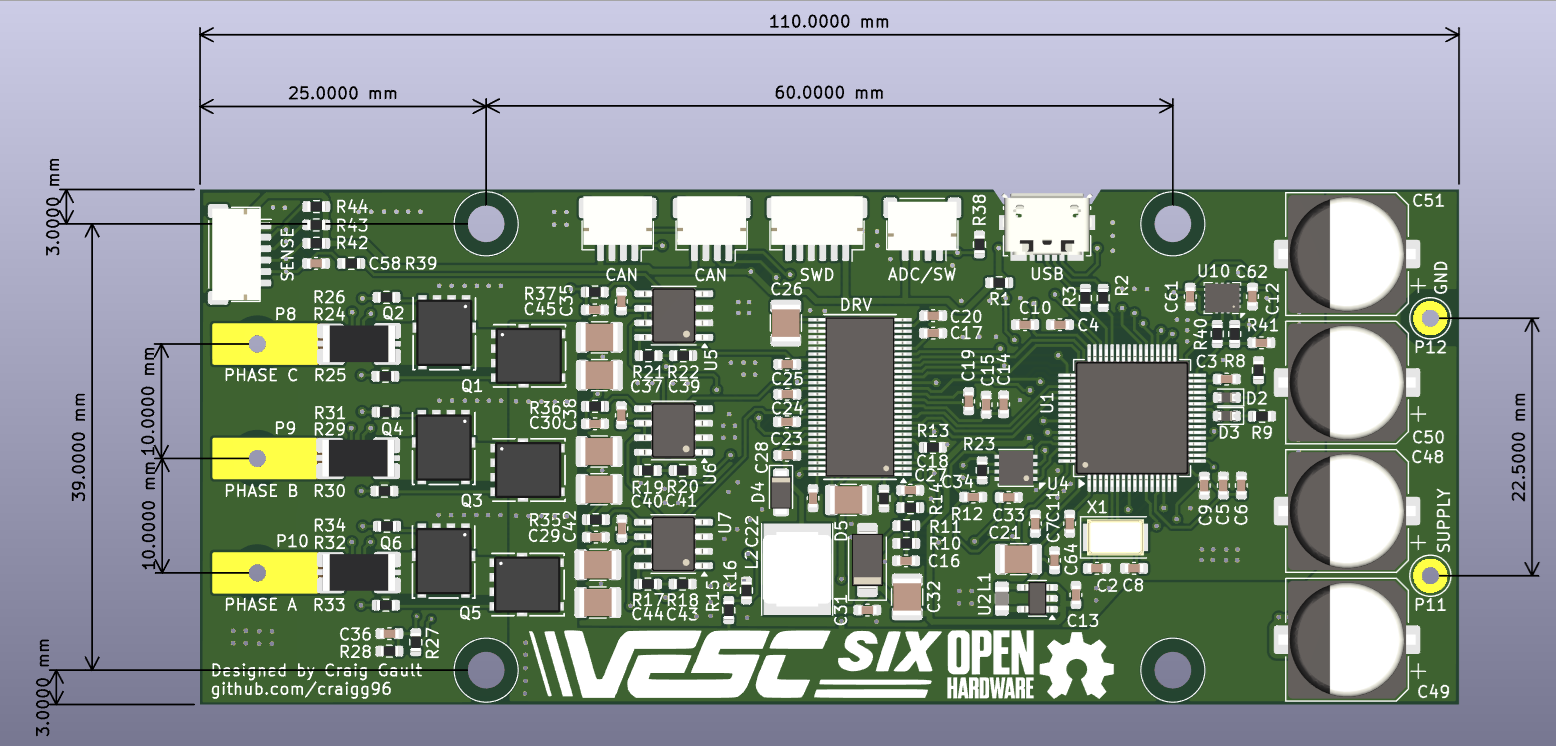

About the VESC6 OPEN HARDWARE PCB
VESC6 OPEN HARDWARE is an open source STM32 PCB design by duwogus7650-ctrl, published on GitHub. It is a 4-layer board measuring 110 × 45 mm, with 118 components from 46 distinct parts.
Its main chip is the C15742, from the STM32 family. Other key parts include the C477918, C98969, C124020, C495342 and C967633. By type, the board carries 52 capacitors, 40 resistors, 8 ICs, 6 transistors, 5 connectors and 4 diodes.
From the project
Economy PCBA maufacture can be used appart from the IMU - 5 boards approx £160GBP So standard PCBA manufacture with placing the IMU costs more - 5 boards approx £200GBP
Economy PCBA maufacture can be used appart from the IMU - 5 boards approx £160GBP So standard PCBA manufacture with placing the IMU costs more - 5 boards approx £200GBP
Board was designed with 2 layers initially but switched to 4 for better grounding and high current supply to fets.
Release 1 has been flashed and fully tested with all functions working as expected. High power sustained tests are yet to be done. Custom board firmware including bringup guide to come.

Main components on the VESC6 OPEN HARDWARE
VESC6 OPEN HARDWARE bill of materials (BOM)
118 components, 46 distinct parts — part numbers from the project's BOM.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | C15742 STM32F40X_LQFP64 | LQFP-64_10x10mm_P0.5mm | U1 |
| 1 | C477918 LM3671 | SOT-23-5 | U2 |
| 1 | C98969 DRV8301 | HTSSOP-56-1EP_6.1x14mm_P0.5mm_EP3.61x6.35mm | U3 |
| 1 | C124020 TJA1051TK-3 | DFN-8-1EP_3x3mm_P0.65mm_EP1.55x2.4mm | U4 |
| 3 | C495342 AD8418 | SOIC-8_3.9x4.9mm_P1.27mm | U5, U6, U7 |
| 1 | C967633 LSM6DS3TR-C | Bosch_LGA-14_3x2.5mm_P0.5mm | U10 |
| 6 | C501008 STL130N6F7 | NVMFS5C612NL | Q1, Q2, Q3, Q4, Q5, Q6 |
| 1 | C115962 8m | Crystal_SMD_5032-2Pin_5.0x3.2mm | X1 |
| 1 | PH_C | Pin_D1.3mm_L11.0mm_LooseFit | P8 |
| 1 | PH_B | Pin_D1.3mm_L11.0mm_LooseFit | P9 |
| 1 | PH_A | Pin_D1.3mm_L11.0mm_LooseFit | P10 |
| 1 | SUPPLY | Pin_D1.3mm_L11.0mm_LooseFit | P11 |
| 1 | GND | Pin_D1.3mm_L11.0mm_LooseFit | P12 |
| 1 | C2286 RED | D_0603_1608Metric | D2 |
| 1 | C2290 WHITE | D_0603_1608Metric | D3 |
| 1 | C2923951 DIODE | D_SMF | D4 |
| 1 | C129544 TVS 5V | D_SMA | D5 |
| 1 | C383398 2.2u | L_0805_2012Metric | L1 |
| 1 | C266430 22u | L_Taiyo-Yuden_NR-60xx_HandSoldering | L2 |
| 2 | C1644 15p | C_0603_1608Metric | C2, C8 |
Show 26 more
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 21 | C23630 2.2uF | C_0603_1608Metric | C3, C4, C5, C6, C9, C10, C11, C12 +13 |
| 5 | C14663 100n | C_0603_1608Metric | C7, C28, C58, C61, C62 |
| 1 | C1631 6.8n | C_0603_1608Metric | C16 |
| 1 | C107035 120p | C_0603_1608Metric | C18 |
| 1 | C21122 22n | C_0603_1608Metric | C19 |
| 2 | C16133 100u | C_1210_3225Metric | C21, C32 |
| 1 | C1596 15n | C_0603_1608Metric | C22 |
| 3 | C21120 220n | C_0603_1608Metric | C23, C24, C25 |
| 8 | C385987 4.7u_100v | C_1210_3225Metric | C26, C27, C37, C39, C40, C41, C43, C44 |
| 3 | C53987 4.7n | C_0603_1608Metric | C29, C30, C45 |
| 4 | C7471900 220u_63v | CP_Elec_10x10.5 | C48, C49, C50, C51 |
| 1 | DNP | R_0603_1608Metric | R1 |
| 2 | C23345 22R | R_0603_1608Metric | R2, R3 |
| 3 | C22787 120R | R_0603_1608Metric | R8, R9, R23 |
| 1 | C22978 3.3k | R_0603_1608Metric | R10 |
| 1 | C25810 18k | R_0603_1608Metric | R11 |
| 1 | C22809 15k | R_0603_1608Metric | R12 |
| 4 | C25804 10k | R_0603_1608Metric | R13, R28, R38, R39 |
| 1 | C22961 220k | R_0603_1608Metric | R14 |
| 4 | C23153 39k | R_0603_1608Metric | R15, R17, R19, R21 |
| 7 | C4190 2k2 | R_0603_1608Metric | R16, R18, R20, R22, R42, R43, R44 |
| 3 | C469426 0.0005R | 2512_SHUNT | R24, R29, R32 |
| 6 | C23164 4.7R | R_0603_1608Metric | R25, R26, R30, R31, R33, R34 |
| 1 | C76589 NTC 10k | R_0603_1608Metric | R27 |
| 3 | C22775 100R | R_0603_1608Metric | R35, R36, R37 |
| 2 | C21190 1k | R_0603_1608Metric | R40, R41 |
VESC6 OPEN HARDWARE design files
The KiCad project lives in the duwogus7650-ctrl/board-design repository on GitHub; these links point at the commit this page was built from.
VESC6 OPEN HARDWARE: common questions
What microcontroller does the VESC6 OPEN HARDWARE use?
The VESC6 OPEN HARDWARE is built around the C15742, from the STM32 family.
How big is the VESC6 OPEN HARDWARE PCB?
The VESC6 OPEN HARDWARE measures 110 × 45 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the VESC6 OPEN HARDWARE?
118 components, from 46 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.
Where can I download the VESC6 OPEN HARDWARE design files?
From the duwogus7650-ctrl/board-design repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.
Can I use the VESC6 OPEN HARDWARE design in my own project?
The repository has no license, so all rights stay with duwogus7650-ctrl. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the VESC6 OPEN HARDWARE without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
