Pedal alembic stratoblaster mini

dvhx·smd-soldering-exercise-0805·kicad-project/stratoblaster-only/pedal-alembic-stratoblaster-mini.kicad_pcb

Pedal alembic stratoblaster mini PCB layout, top view — open source board by dvhx
Simulate this board

About the Pedal alembic stratoblaster mini PCB

Pedal alembic stratoblaster mini is an open source PCB design by dvhx, published on GitHub under the GPL-3.0 license. It is a 2-layer board measuring 11.3 × 13.3 mm, with 12 components from 10 distinct parts.

By type, the board carries 5 resistors, 3 capacitors, 1 transistor and 1 connector.

It belongs with the audio designs in this gallery.

From the project

Ultimate SMD soldering exercise full of 0805 resistor and caps, SOT-23 transistors and SOIC-8 opamps - 23 guitar pedals on one 10x10cm PCB.

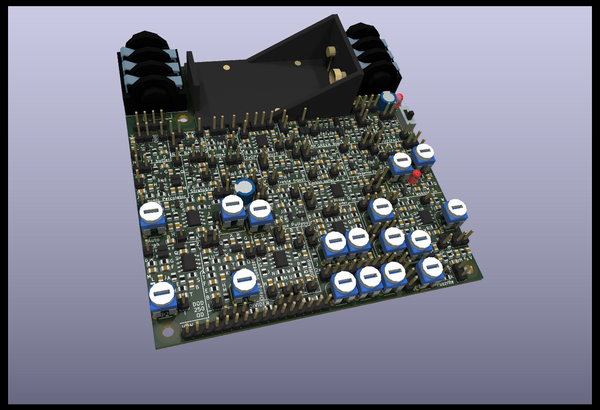

Pedal alembic stratoblaster mini, from the project README
From the project README

Pedal alembic stratoblaster mini bill of materials (BOM)

12 components, 10 distinct parts.

QtyPartRefs
1
MMBFJ201
Q12
1
Header_1x2_PN
J1
2
Header_1x1_male
I10, O10
2
10u
C35, C37
1
1u5
C36
1
68k
R42
1
22k
R43
1
12k
R44
1
0-50k
R45
1
100k
R46

Pedal alembic stratoblaster mini design files

The KiCad project lives in the dvhx/smd-soldering-exercise-0805 repository on GitHub; these links point at the commit this page was built from.

Pedal alembic stratoblaster mini: common questions

How big is the Pedal alembic stratoblaster mini PCB?

The Pedal alembic stratoblaster mini measures 11.3 × 13.3 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Pedal alembic stratoblaster mini?

12 components, from 10 distinct parts. The full bill of materials is listed on this page.

Where can I download the Pedal alembic stratoblaster mini design files?

From the dvhx/smd-soldering-exercise-0805 repository on GitHub, which has the KiCad layout and the schematic; the links under Design files point to each one.

Can I use the Pedal alembic stratoblaster mini design in my own project?

Yes, under the terms of its GPL-3.0 license, which dvhx chose for the repository.
