About the Encoder backlight PCB

Encoder backlight is an open source PCB design by dwhinham, published on GitHub under the CC-BY-SA-4.0 license. It is a 2-layer board measuring 16 × 20.8 mm, with 8 components from 4 distinct parts.

By type, the board carries 4 connectors, 3 diodes and 1 resistor.

It belongs with the audio designs in this gallery.

From the project

This simple board allows you to neatly and painlessly install LEDs on top of a rotary encoder for use with transparent/translucent knobs.

This simple board allows you to neatly and painlessly install LEDs on top of a rotary encoder for use with transparent/translucent knobs.

I designed this board when building a [MIDIbox SID synthesizer based on the MB6582 design][midibox-sid]. The idea was inspired by [Hawkeye's control surface build tutorial for the MB6582][knob-backlight-tutorial], but I didn't think I'd personally be able to do a very neat job with enamel wire, and so I decided to design a simple PCB to make it easier to achieve this kind of lighting.

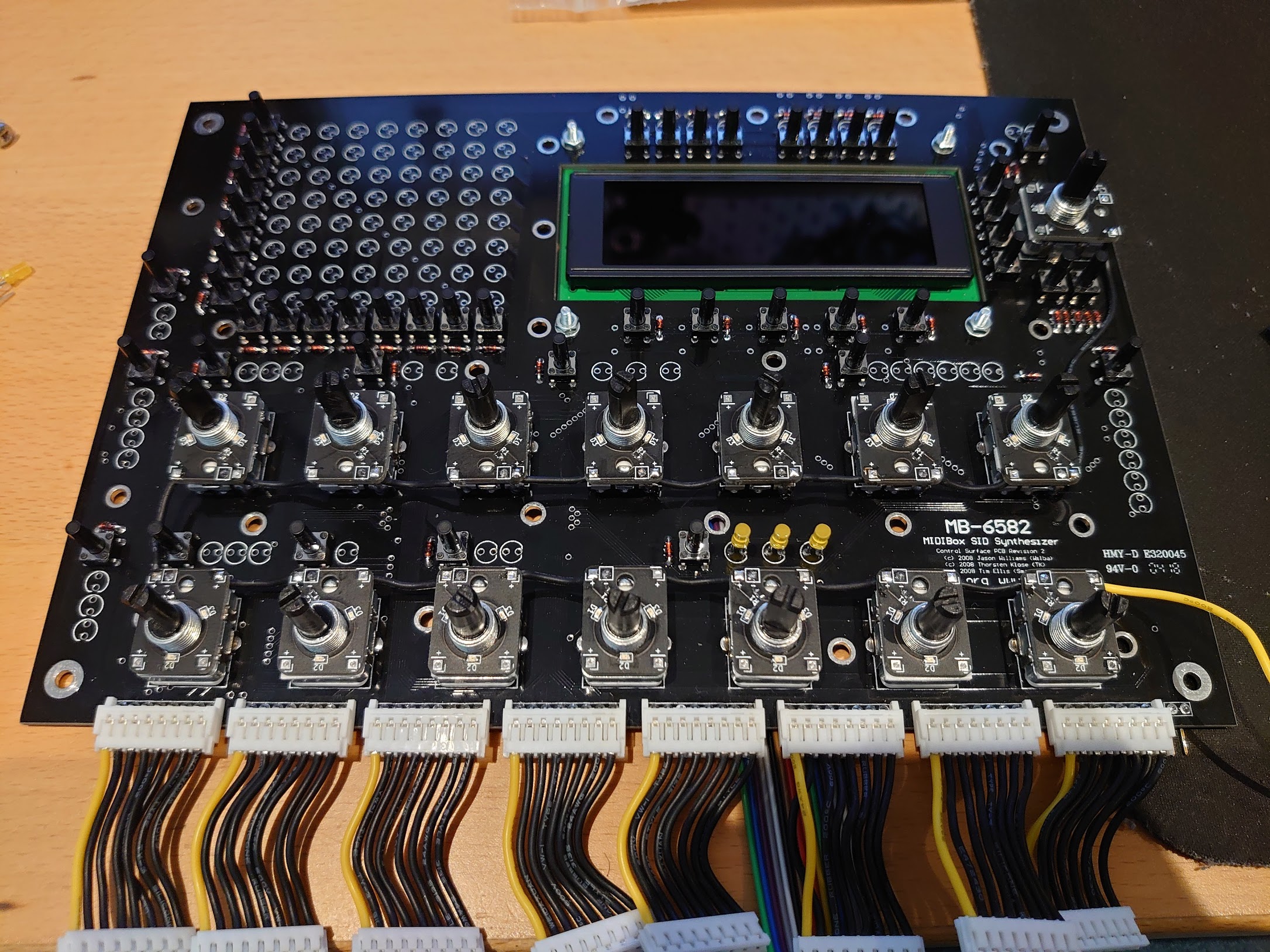

Encoder backlight, from the project README
From the project README

Encoder backlight bill of materials (BOM)

8 components, 4 distinct parts.

QtyPartRefs
1
Conn_01x02_Female
J1
3
Conn_01x01_Female
J2, J3, J4
3
LED
D1, D2, D3
1
R
R1

Encoder backlight design files

The KiCad project lives in the dwhinham/encoder-backlight-pcb repository on GitHub; these links point at the commit this page was built from.

Encoder backlight: common questions

How big is the Encoder backlight PCB?

The Encoder backlight measures 16 × 20.8 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the Encoder backlight?

8 components, from 4 distinct parts. The full bill of materials is listed on this page.

Where can I download the Encoder backlight design files?

From the dwhinham/encoder-backlight-pcb repository on GitHub, which has the KiCad layout; the links under Design files point to each one.

Can I use the Encoder backlight design in my own project?

Yes, under the terms of its CC-BY-SA-4.0 license, which dwhinham chose for the repository.
