E80-1800-pcb universal

ebastler·E80-1800·E80-1800-pcb-universal/E80-1800-pcb-universal.kicad_pcb

E80-1800-pcb universal layout, top view — open source STM32 board by ebastler
Simulate this board

About the E80-1800-pcb universal

E80-1800-pcb universal is an open source STM32 PCB design by ebastler, published on GitHub under the BSD-2-Clause license. It is a 2-layer board measuring 382 × 160 mm, with 200 components from 21 distinct parts.

Its main chip is the STM32F072RBTX, from the STM32 family. Other key parts include the SRV05-4 and XC6206P332MR. By type, the board carries 121 resistors, 55 diodes, 15 capacitors, 3 ICs, 2 switches and 1 transistor.

It belongs with the keyboards designs in this gallery.

From the project

QMK compatible PCB replacement for Cherry G80-1800

The board has been prototyped and works as intended, while fitting most G80-1800 housings. Rev 1.1 and later should fix all tolerance issues, and fit all G80-1800 (and as far as I know also G81-1800) enclosures. I can, however, not guarantee perfect operation of the PCB or compatibility with every enclosure variation - if you encounter any issues, please let me know. Rev 1.2 has not yet been tested, but changes were minimal - no issues are to be expected. Stock situations as well as component rotations at JLC may change over time and hence I can not guarantee for the BOM/CPL files to work…

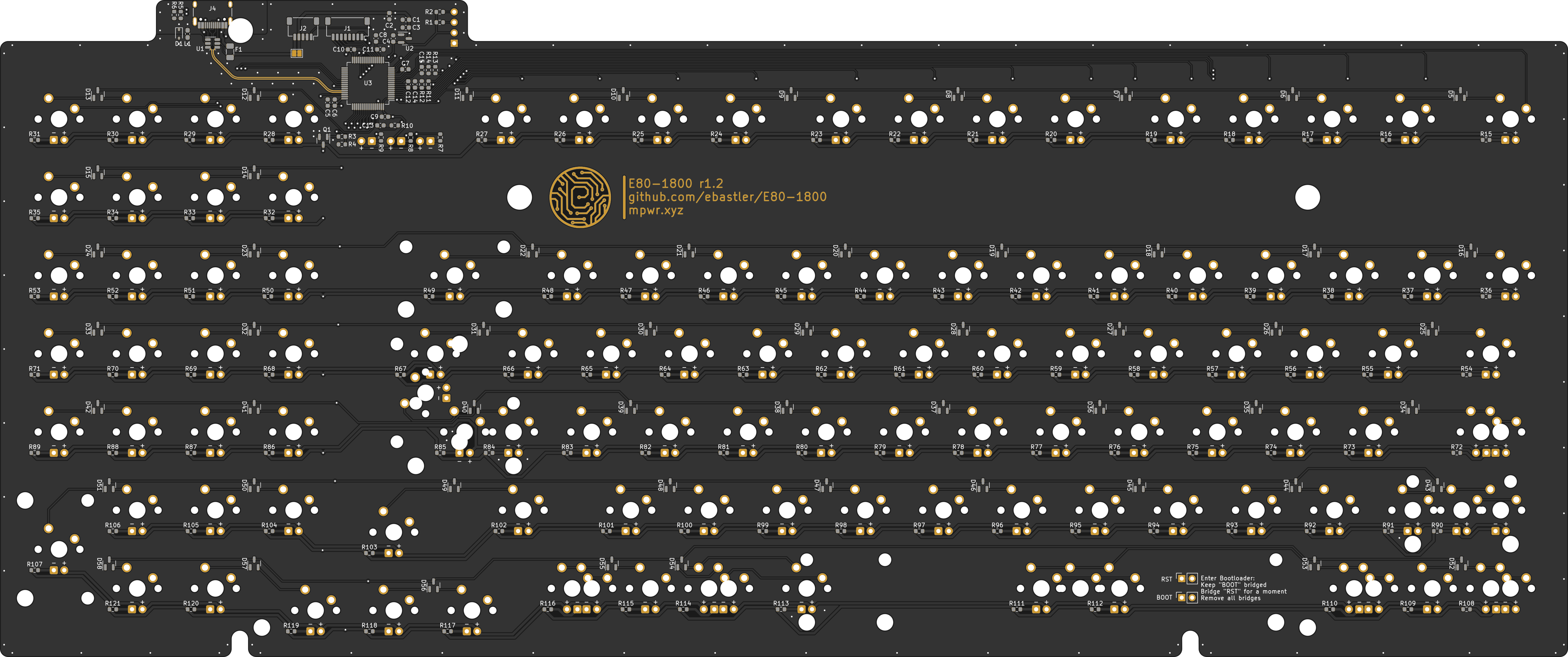

E80-1800-pcb universal, from the project README
From the project README

Main components on the E80-1800-pcb universal

SRV05-4XC6206P332MRSTM32F072RBTX

E80-1800-pcb universal bill of materials (BOM)

200 components, 21 distinct parts — part numbers from the project's BOM.

QtyPartRefs
1
SRV05-4
U1
1
XC6206P332MR
U2
1
STM32F072RBTX
STM32F072RBTx
U3
1
C20917
Q_NMOS_GSD
Q1
1
USB_C_RECEPTACLE_USB2.0
USB_C_Receptacle_USB2.0
J4
1
1206L050
F1
1
RST
SW1
1
BOOT
SW2
1
BSD3C051V
D1
54
BAV70
D5, D6, D7, D8, D9, D10, D11, D12 +46
1
PBY160808T-181Y-N
L1
4
4U7
4u7
C1, C2, C5, C8
2
1u
C3, C4
9
100N
100n
C6, C7, C9, C10, C11, C12, C13, C14 +1
2
4K7
4k7
R1, R2
1
100R
R3
2
10K
10k
R4, R10
2
5K1
5k1
R5, R6
3
1k
R7, R8, R9
4
47K
47k
R11, R12, R13, R14
Show 1 more
QtyPartRefs
107
560
R15, R16, R17, R18, R19, R20, R21, R22 +99

E80-1800-pcb universal design files

The KiCad project lives in the ebastler/E80-1800 repository on GitHub; these links point at the commit this page was built from.

E80-1800-pcb universal: common questions

What microcontroller does the E80-1800-pcb universal use?

The E80-1800-pcb universal is built around the STM32F072RBTX, from the STM32 family.

How big is the E80-1800-pcb universal?

The E80-1800-pcb universal measures 382 × 160 mm, has 2 copper layers and is 1.6 mm thick.

How many components are on the E80-1800-pcb universal?

200 components, from 21 distinct parts, with part numbers taken from the project's own BOM. The full bill of materials is listed on this page.

Where can I download the E80-1800-pcb universal design files?

From the ebastler/E80-1800 repository on GitHub, which has the KiCad layout, the schematic and the BOM; the links under Design files point to each one.

Can I use the E80-1800-pcb universal design in my own project?

Yes, under the terms of its BSD-2-Clause license, which ebastler chose for the repository.

Can I test firmware for the E80-1800-pcb universal without the hardware?

Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug STM32 firmware against it before you order a PCB.
