ECP5-PCIe
About the ECP5-PCIe PCB
ECP5-PCIe is an open source FPGA PCB design by ECP5-PCIe, published on GitHub. It is a 4-layer board measuring 115 × 85.8 mm, with 49 components from 16 distinct parts.
Its main chip is the ECP5_EVN_PCIe, from the FPGA family. Other key parts include the Si5325 and ATmega328PB-MU. By type, the board carries 25 capacitors, 9 resistors, 6 connectors, 4 diodes, 3 ICs and 1 fuse.
From the project

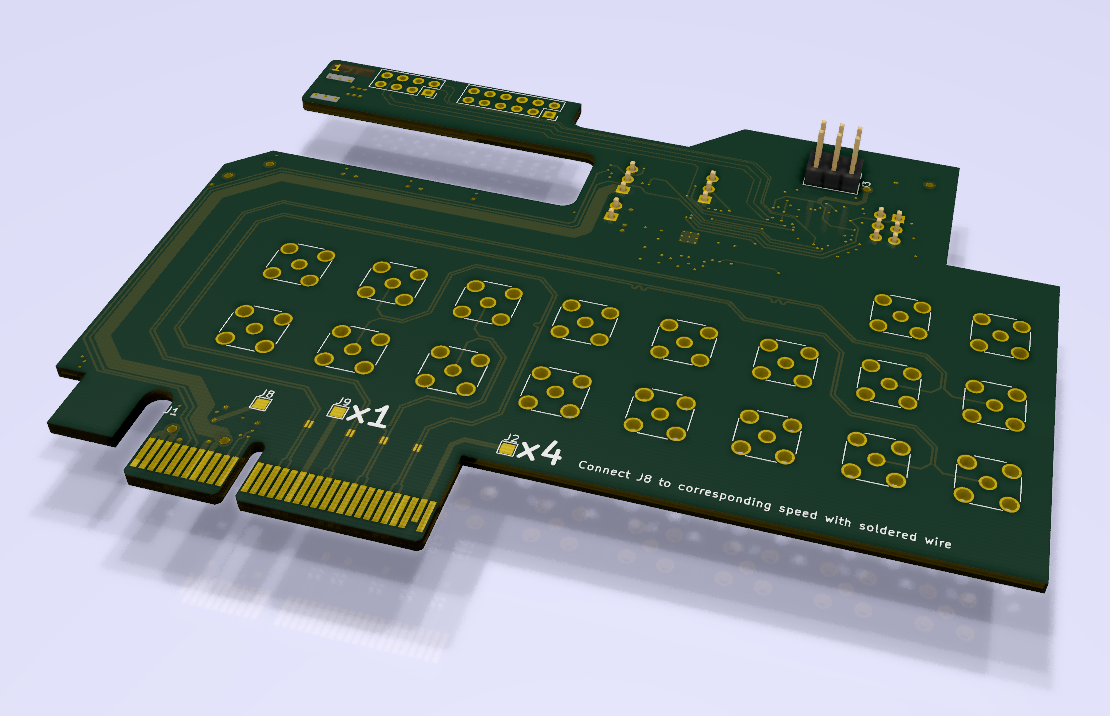

Mirror of https://codeberg.org/ECP5-PCIe/ECP5-PCIe
Main components on the ECP5-PCIe
ECP5-PCIe bill of materials (BOM)
49 components, 16 distinct parts.
| Qty | Part | Footprint | Refs |
|---|---|---|---|
| 1 | Si5325 | QFN-36-1EP_6x6mm_P0.5mm_EP4.1x4.1mm_ThermalVias | U1 |
| 1 | ECP5_EVN_PCIe | ECP5-EVN-PCIe | U2 |
| 1 | ATmega328PB-MU | QFN-32-1EP_5x5mm_P0.5mm_EP3.1x3.1mm | U3 |
| 1 | Conn_02x03_Odd_Even | PinHeader_2x03_P2.54mm_Vertical | J3 |
| 1 | Conn_01x02 | PinHeader_1x02_P2.54mm_Vertical | J4 |
| 2 | Conn_01x03 | PinHeader_1x03_P2.54mm_Vertical | J5, J6 |
| 1 | AVR-ISP-6 | PinHeader_2x03_P2.54mm_Vertical | J7 |
| 1 | Conn_Coaxial | SMA_Samtec_SMA-J-P-X-ST-EM1_EdgeMount | J10 |
| 1 | Fuse | Fuse_1206_3216Metric | F1 |
| 3 | LED 0805 | LED_0805_2012Metric | D1, D2, D3 |
| 1 | 3V6 | D_SMB | D4 |
| 1 | Ferrite_Bead | L_0805_2012Metric | FB1 |
| 21 | 100n | C_0402_1005Metric | C1, C2, C3, C5, C6, C7, C8, C9 +13 |
| 4 | 1µ | C_0805_2012Metric | C4, C13, C14, C17 |
| 2 | 10k 0603 | R_0603_1608Metric | R1, R5 |
| 7 | 1k 0603 | R_0603_1608Metric | R2, R3, R4, R6, R7, R8, R9 |
ECP5-PCIe design files
The KiCad project lives in the ECP5-PCIe/ECP5-PCIe repository on GitHub; these links point at the commit this page was built from.
ECP5-PCIe: common questions
What microcontroller does the ECP5-PCIe use?
The ECP5-PCIe is built around the ECP5_EVN_PCIe, from the FPGA family.
How big is the ECP5-PCIe PCB?
The ECP5-PCIe measures 115 × 85.8 mm, has 4 copper layers and is 1.6 mm thick.
How many components are on the ECP5-PCIe?
49 components, from 16 distinct parts. The full bill of materials is listed on this page.
Where can I download the ECP5-PCIe design files?
From the ECP5-PCIe/ECP5-PCIe repository on GitHub, which has the KiCad layout; the links under Design files point to each one.
Can I use the ECP5-PCIe design in my own project?
The repository has no license, so all rights stay with ECP5-PCIe. Use it as a reference, and ask the author before reusing the design.
Can I test firmware for the ECP5-PCIe without the hardware?
Yes. HardLabs builds a simulation of the board from its netlist and BOM, so you can run and debug FPGA firmware against it before you order a PCB.
